- 62 -

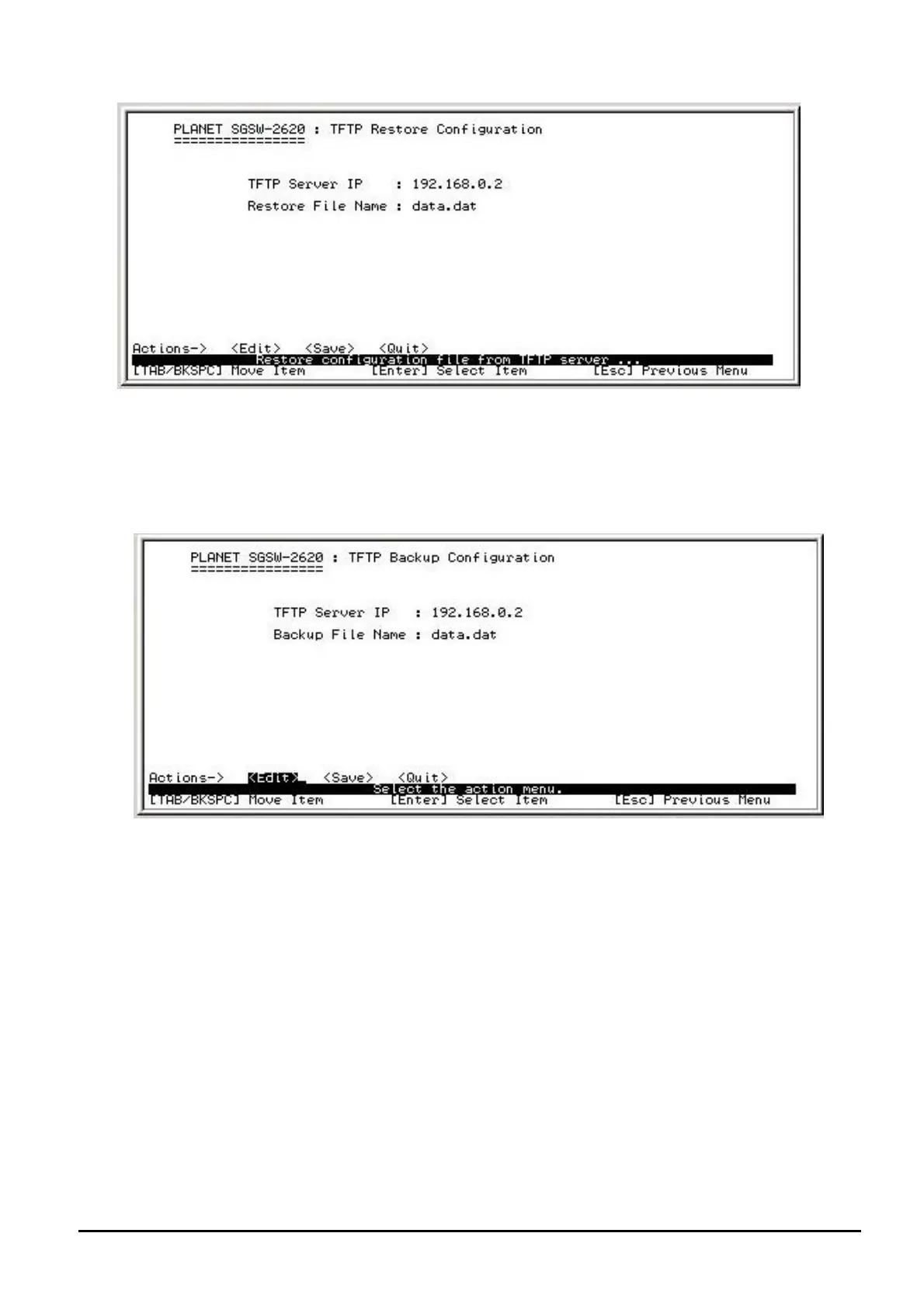

Figure 4-95 TFTP Restore Configuration process screen
5. When the image file download completed, please reboot the Switch for new configuration.
4.4.4.3.3 Backup Configuration
Provide backup the configuration through the TFTP server method, the screen in Figure 4-96
appears.
Figure 4-96 TFTP Backup Configuration screen
Setup procedure:
1. Press “Edit”
2. TFTP Server IP: input the IP address of the workstation that install TFTP server.
3. Backup File Name: input the backup file name.
4. After setup completed, press” ESC” and choose “Save” to save the current configure, the system will start
to download the image file. The screen in Figure 4-97 appears.
To Next Page
