Create a new VLAN group and add member ports procedure:
1. Click “Add” to create a new VLAN group. The following screen in Figure 5-29 appears.
2. Type a name for the new VLAN and VLAN ID (between 1- 4094).
3. From the available ports box, select ports to add to the Switch and click “Add”
4. Click “Apply” to take effect. The following screen in Figure 5-30 appears.
5. If the port-based VLAN groups list over one page, please click “Next Page” to view other VLAN
groups on other page.
6. Use “Delete” button to delete unwanted port-based VLAN groups
7. Use “ Edit” button to modify existing port-based VLAN groups.

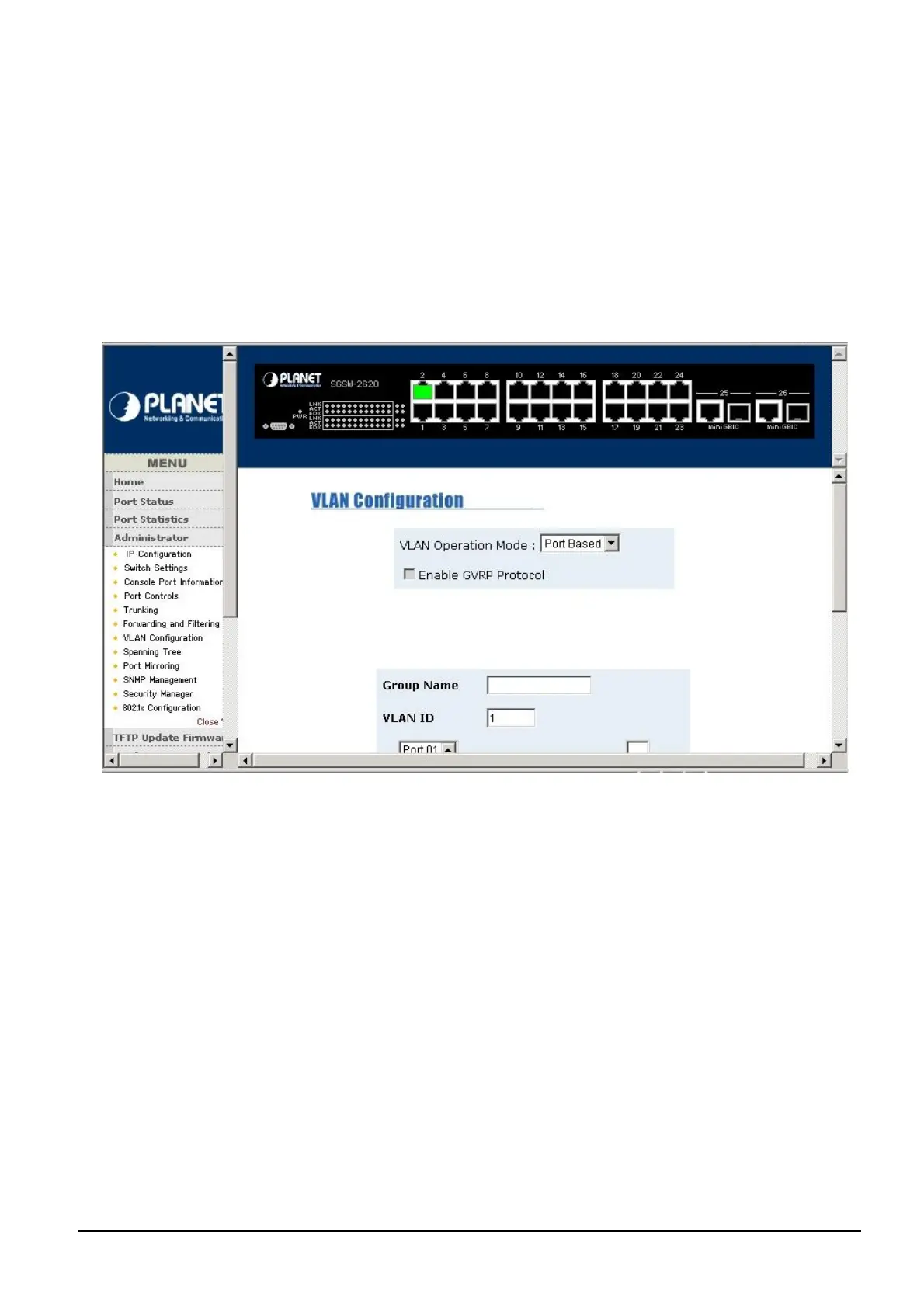

Figure 5-29 SGSW-2620 Port Based VLAN setting Web Page screen
To Next Page
