User Manual of WAP-200N/WBS-200N
-69-

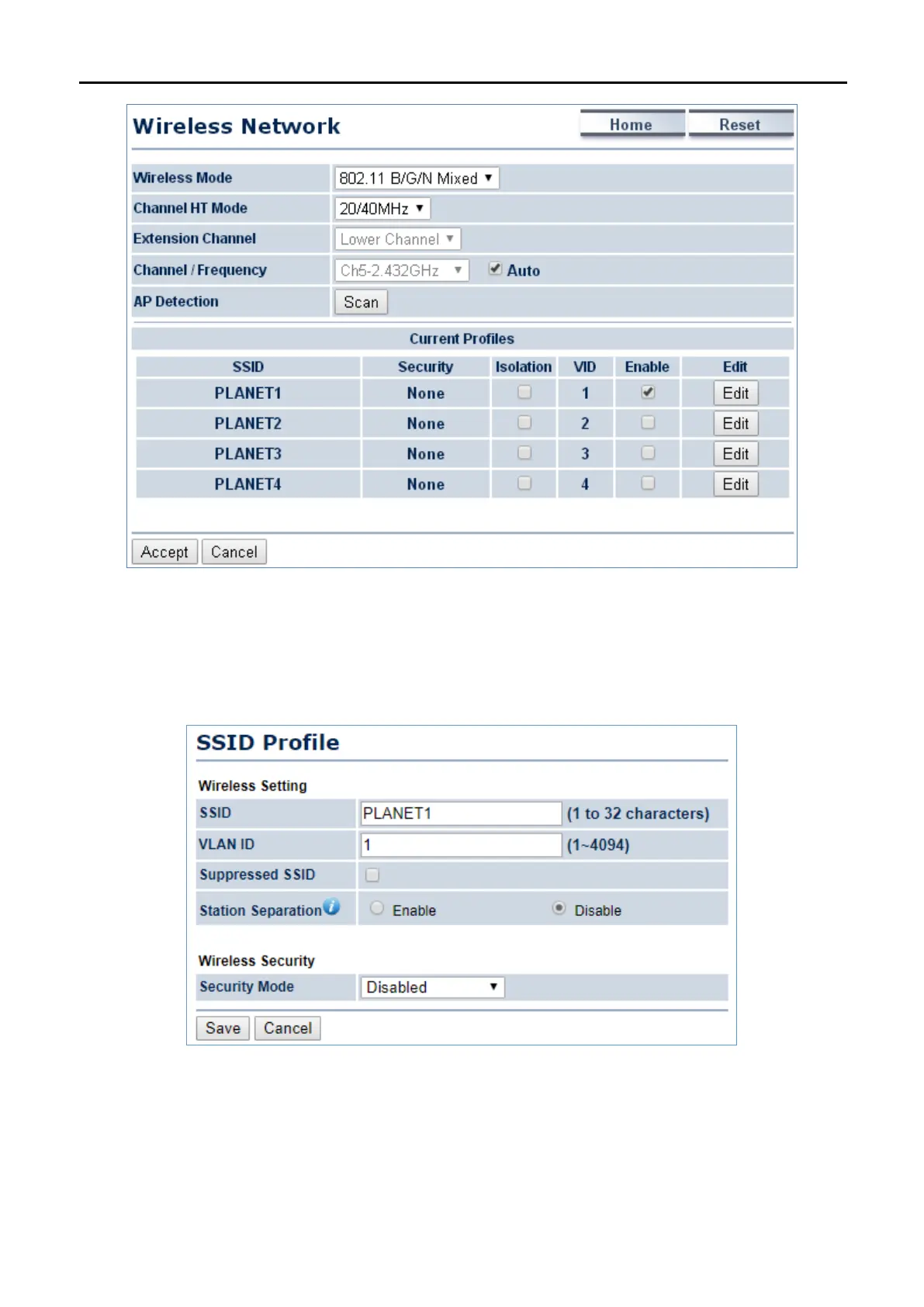

Figure 5-32 Wireless Network – AP/WDS AP Mode
In the AP/WDS AP mode, click the Edit button on the “Wireless Network” page to enter the “SSID Profile” page
to configure the SSID profile for the wireless network.
Figure 5-33 Wireless Network – SSID Profile
