NOTE: Connect the DC power cable to the 13.8V DC power supply. Notice that the positive and negative
polarity of the terminal should be connected correctly.

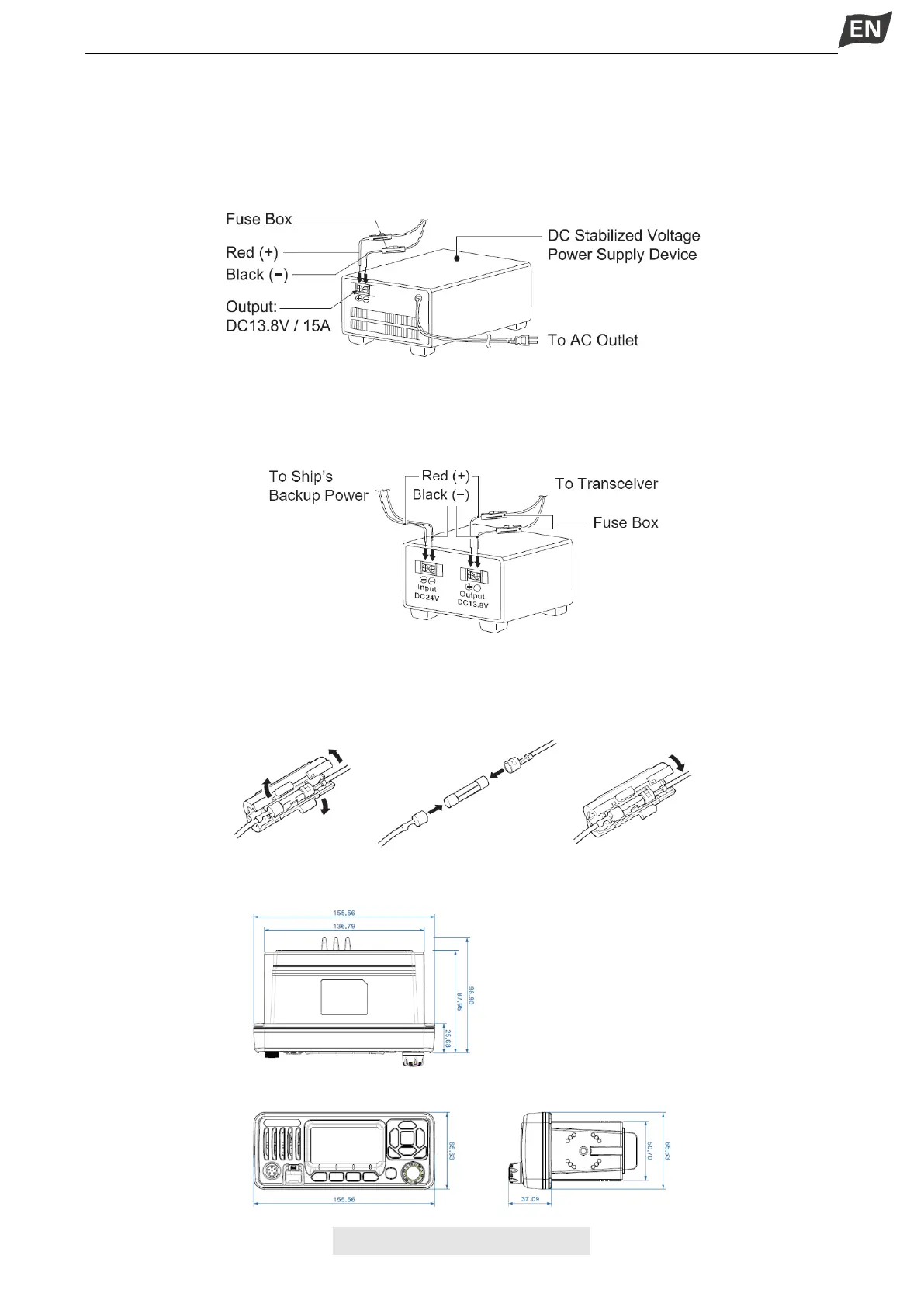

◆ Connected to the Ship’s Main Power Source AC220V
If the ship’s main power supply AC220V/50Hz is to be used, a separate DC stabilized voltage power
supply device is required, with an output voltage of 13.8V and an output current of 15A.
◆ Connected to the Ship’s Backup Power DC24V
If the ship’s backup power supply DC24V is to be used, a separate step-down power supply device (Input
DC24V, Output DC13.8V / 15A) shall be used.
◆ Fuse Replacement
One fuse is installed in the supplied DC power cable. If a fuse blows or the transceiver stops functioning,
track down the source of the problem first, then replace the damaged fuse with a new, rated one.
NOTE: Please power off transceiver before replacing the fuse, the required fuse is DC15A/32V.
■ Dimensions
PANEL DESCRIPTION
