888-2408-002 2-21
WARNING: Disconnect primary power prior to servicing.
Installation & Initial Turn-On
2.5.11 Remote Control Connections
The Platinum Z5 Transmitter may be operated by remote control by installing a
remote control system. If the transmitter is to be remotely controlled, it is important
to initiate thorough inspection and maintenance procedures at the transmitter
location. Installation of equipment to monitor temperature and humidity at the
remote transmitter site is also recommended.
Terminations provided in the Platinum Z5 Transmitter allow remote control of the
transmitter functions by connection to terminals on terminal board A1TB1. TB1 is a
38 pin Terminal strip with a D-connector on the back which connects to J20 on the
controller. Table 2-1 on page 2-28 contains a complete listing and explanation of
connections for TB1. Figure 2-9 shows TB1 pinout and connections. TB1 is located
in the upper left side in the rear of the transmitter when viewing from the back.
Use shielded cable for the remote control lines and/or install it in a metal conduit. It
is acceptable to install it in the same conduit as the exciter input cables.

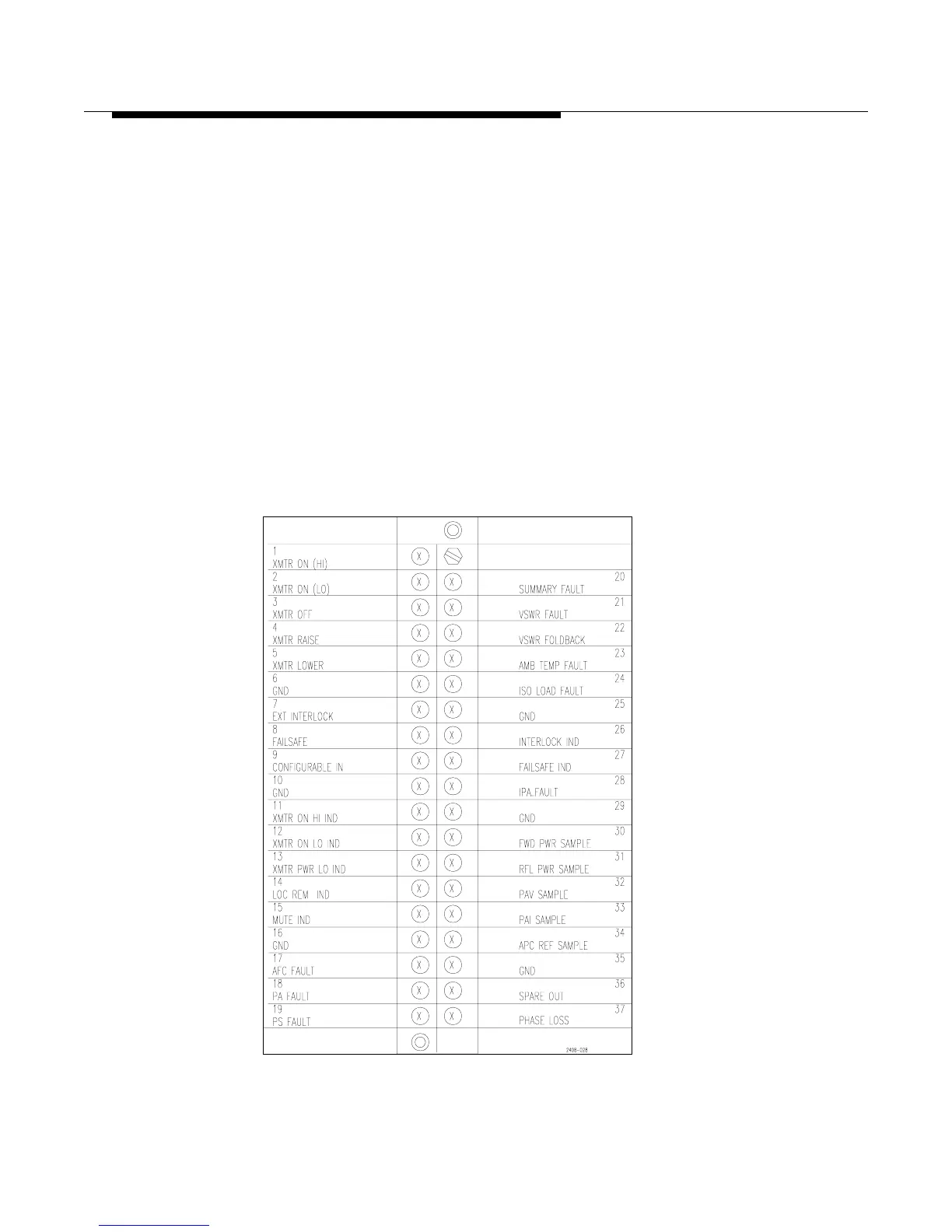

Figure 2-9 TB1 Customer Interface Connections
