PM75 Android 11 User Manual

Getting Started

4. Engage the battery cover from bottom, and then press the edge of the cover to close it firmly.

Remove the battery

1. Open the battery cover.

2. Pull the battery up using the small hole on the bottom of the battery slot.

Battery Hot Swap

PM75 supports the Battery hot swap mode which allows you to replace the battery without turning off

the device. When the battery is removed from the device, the display turns off and the device enters

Hot swap mode (For verification, a red LED will be turned on). In Hot swap mode, data is retained

about 5 minutes.

Once you replace the battery to a new one and close the battery cover firmly, the device will come

back to normal operation mode without booting process.

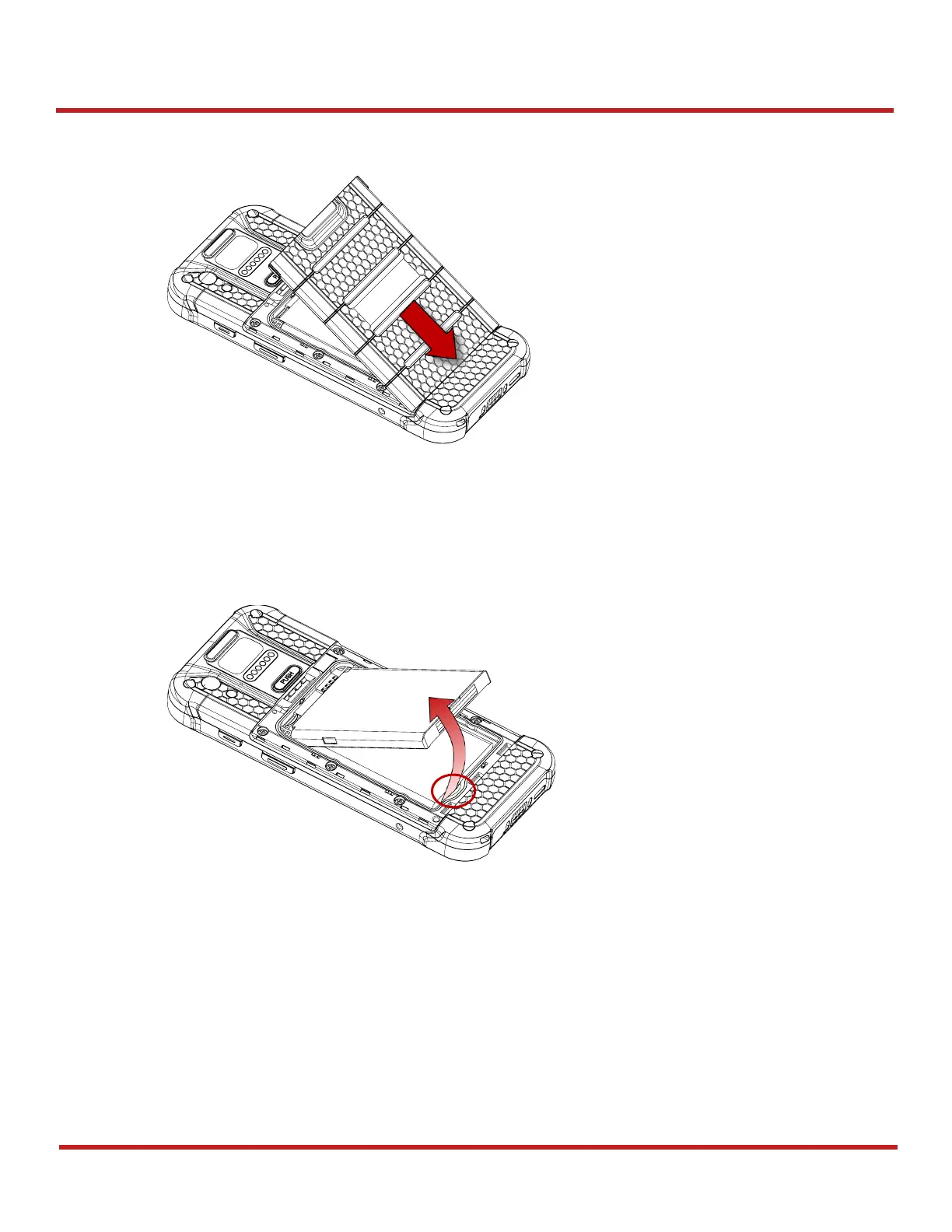

Figure 9 Closing battery cover

Figure 10 Removing battery
