Getting Started
Device Parts
No
Name
Description
1
LED indicator & Sensor
Indicate the power status and notification.
Find more details in LED Indicator
2
Receiver
Use with making a phone call
3
Screen
Display all operating screen
4
Microphone
Use for collecting sound
5
I/O connector for cradle
Connector for charging and communication with cradle
6
USB connector
USB Type C connector for charging and data communication
7
Speaker
Ring system sound
8
Push-To-Talk / Scan button
Use PTT function or scan a barcode by pressing
(Programmable button)
9
Volume up & down button
Control the volume
(Programmable button)
1
3
5
6
8
9

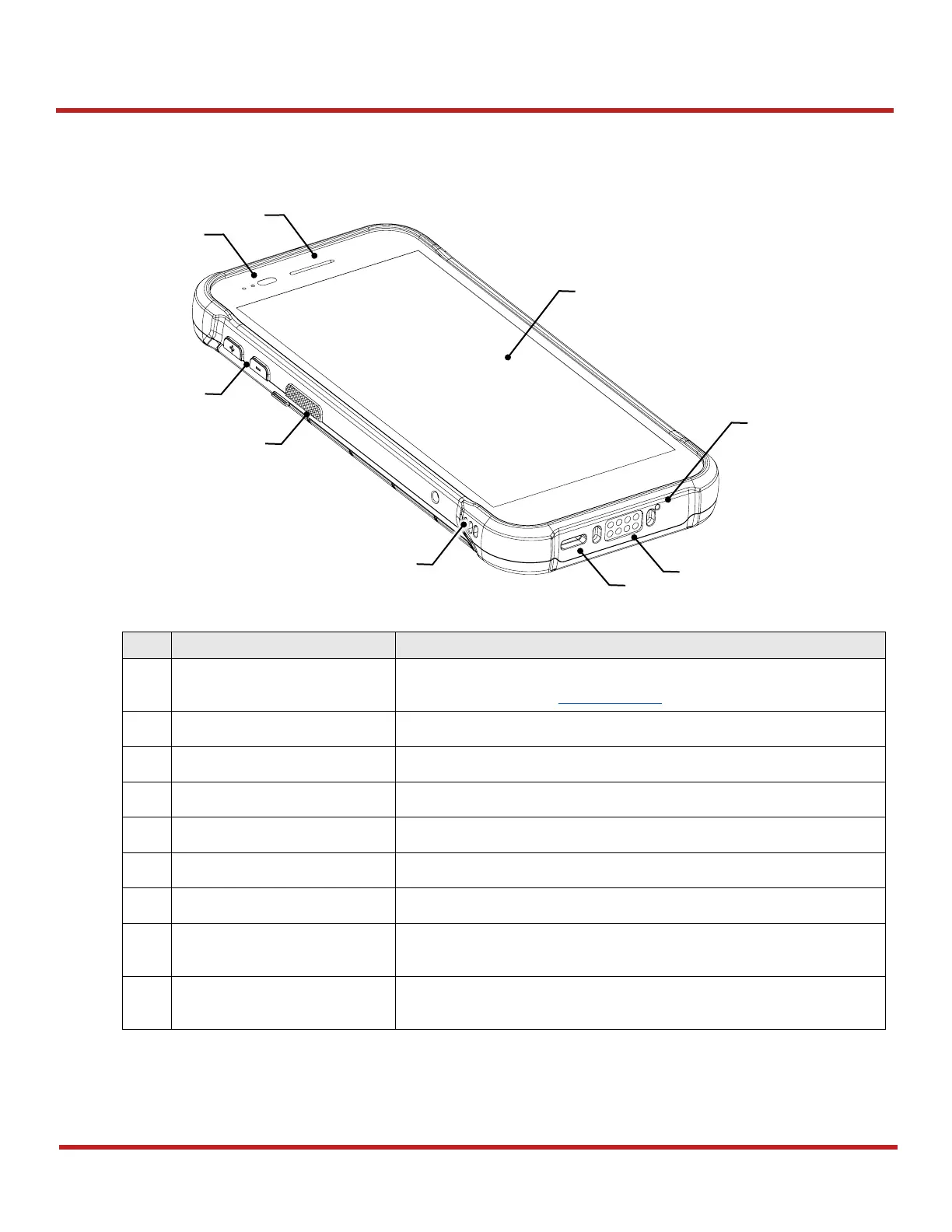

Figure 1 PM75 Front view
2
4
7
