6.30
CLUTCHING
P
RELIMINARY
V
ERS
I
ON

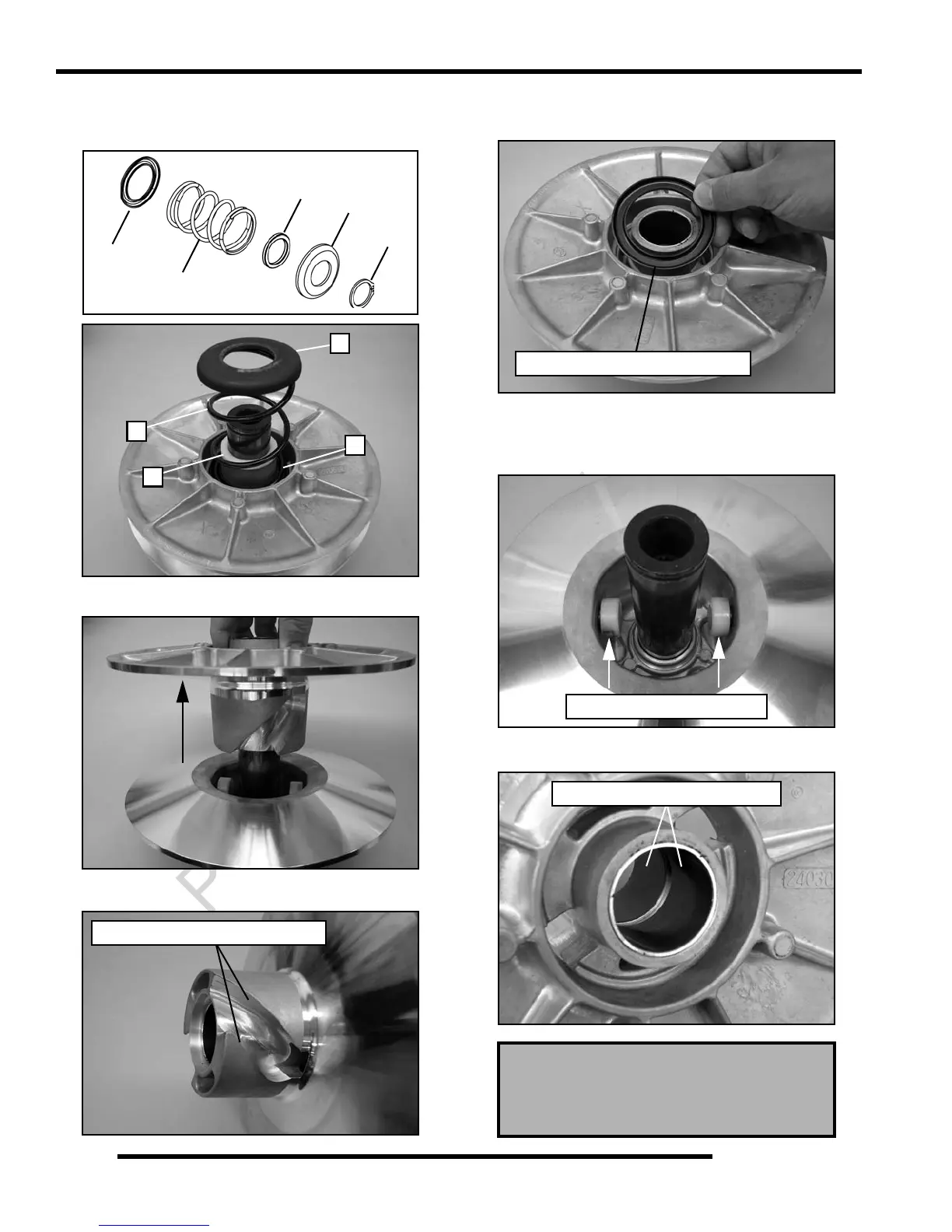

4. With the snap ring (A) removed and spring pressure
relieved, remove the outer spring retainer (B), compression
spring (C), spacer (D), and inner spring retainer (E).
5. Separate the two clutch sheaves.
6. Inspect the helix on the moveable sheave.
7. Remove the inner spring retainer from the inner sheave.
Inspect for wear and replace as needed.
8. Check the rollers in the stationary sheave for wear. If
rollers are worn, a new driven clutch assembly may be
needed.
9. Inspect the bearings inside the moveable sheave.
A
B
C
E
D
C
E
B
D
Inspect for Abnormal Wear
Moveable Sheave Bearing Inspection:
Replace the bearing if more brass than
Teflon™ is visible on the bearing.
Inspect for Abnormal Wear
Check Rollers for Wear
Inspect Bearings for Wear
To Next Page
