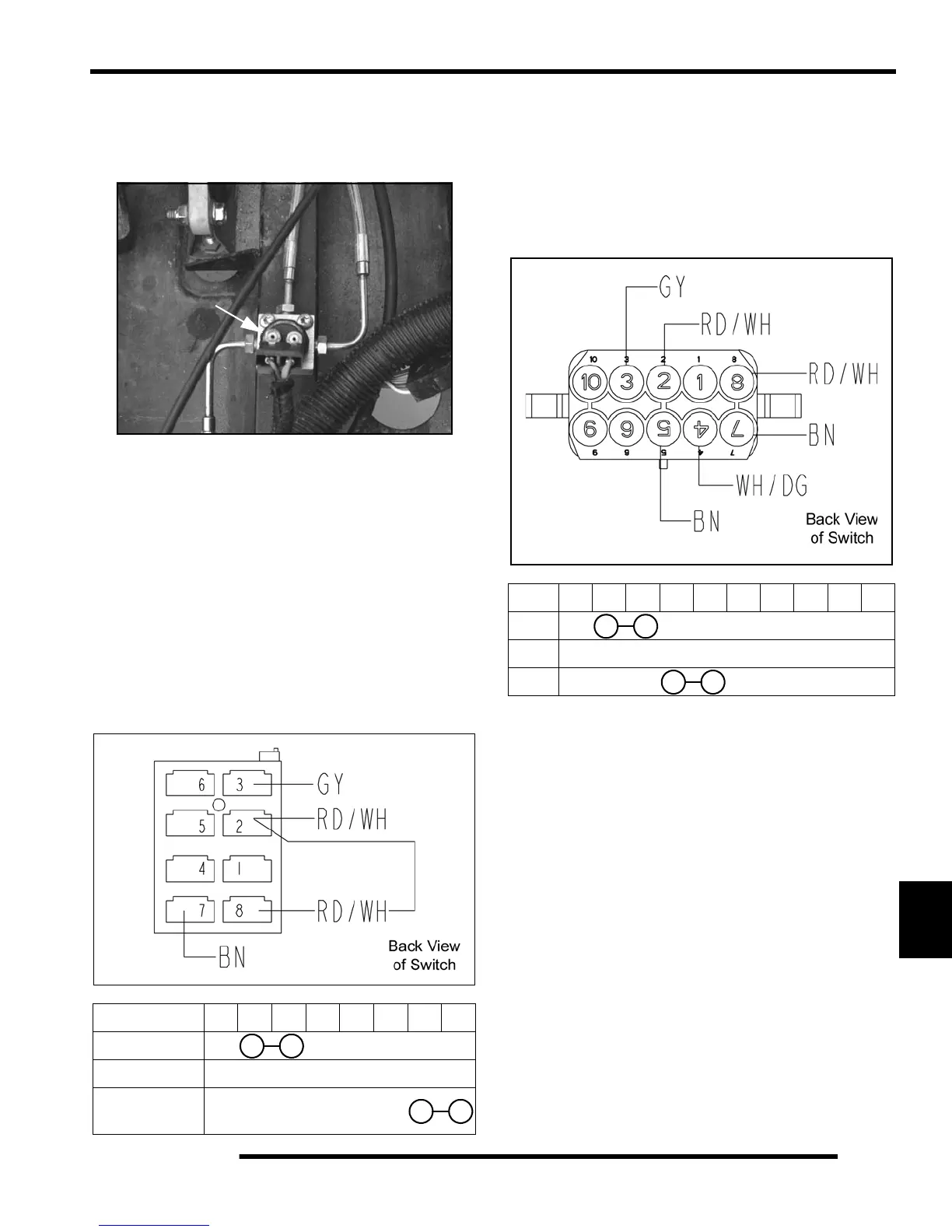

Brake Light Switch
1. The brake light switch is located under the driver’s seat
along the lower frame. The brake pressure switch is
installed into this cross fitting block.
2. Disconnect wire harness from switch and connect an
ohmmeter across switch contacts. The reading should be
infinite (OL).
3. Apply the brake and check for continuity. If there is no
continuity or if resistance is greater than .5 ohms, clean the
switch terminals. Re-test and replace switch if necessary.
AWD / 2WD Switch
1. Disconnect the switch harness (Grey, Red/White, and
Brown), by depressing the connector lock and pulling on
the connector. Do not pull on the wiring.
2. Test the switch connections and check for continuity at the
pins shown in the illustration.
AWD / 2WD / TURF Switch (INT’L Models)
1. Disconnect the switch harness (Grey, Red/White, Brown
and White/Green), by depressing the connector lock and
pulling on the connector. Do not pull on the wiring.
2. Test the switch connections and check for continuity at the
pins shown in the illustration.
12345678
AWD
2WD
SWITCH
BACK-LIGHT
12345678910
AWD
2WD
TURF
