10.22
ELECTRICAL
P
RELIMINARY
V
ERS
I
ON

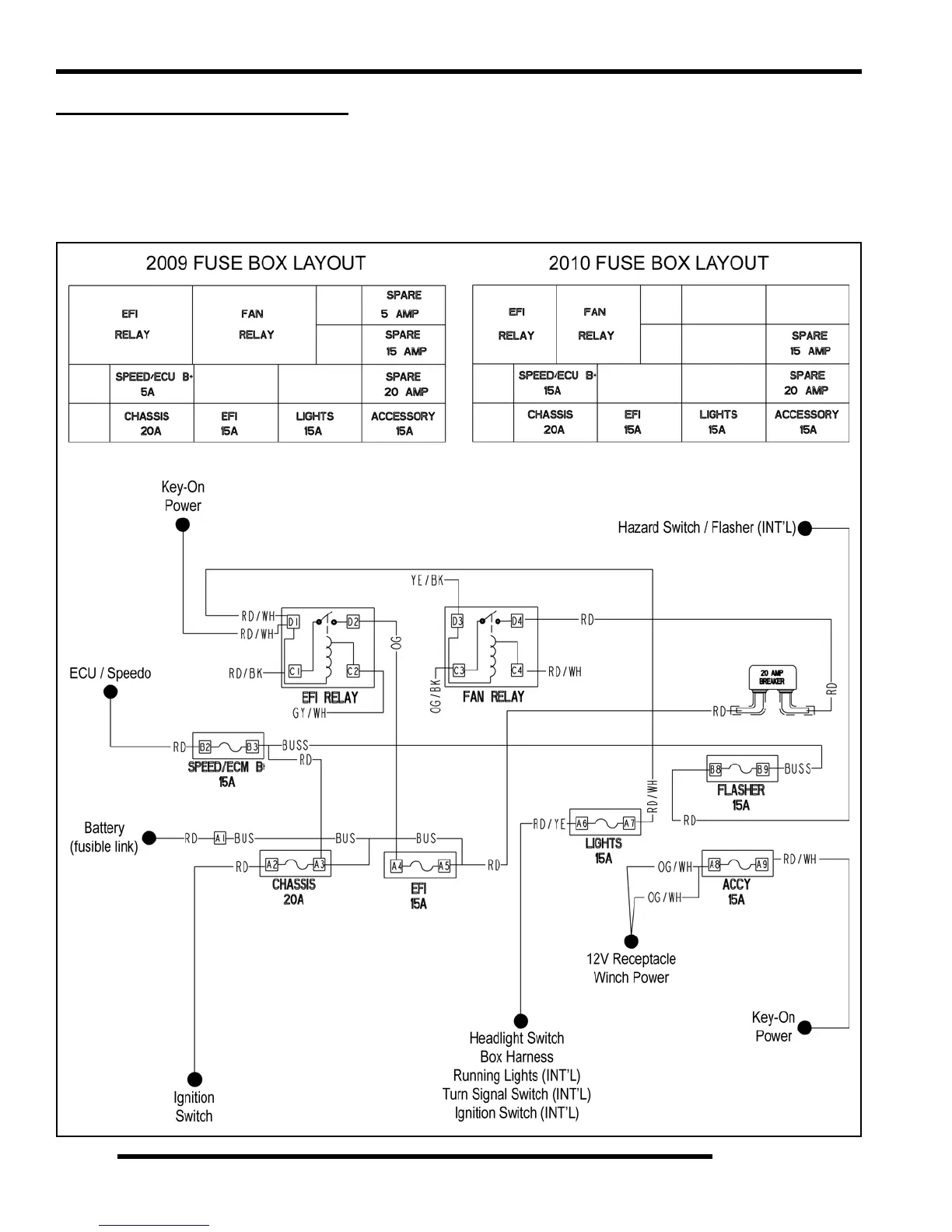

FUSES / CIRCUIT BREAKER
Operation
Located in the fuse box under the dash, the fuse panel provides overload protection for wiring and components such as the Instrument
Cluster, ECU, EFI System, Chassis Power, Lights and Accessories.
A separate 20-amp circuit breaker protects the fan motor circuit.
