Standard Display Modes
Use the mode button (location shown in the illustration on page
10.5) to toggle through the mode options.
Odometer Mode
The odometer records the miles or kilometers traveled by the
vehicle.
Trip Meter Mode
The trip meter records the miles or kilometers traveled by the
vehicle on each trip if it's reset before each trip. To reset the trip
meter, select the trip meter mode. Press and hold the mode
button until the display reads 0.
NOTE: In the Rider Information Display, the trip
meter display contains a decimal point, but the
odometer displays without a decimal point.
Hour Meter Mode
This mode logs the total hours the engine has been in operation.
Tachometer Mode
The engine RPM is displayed digitally.
NOTE: Small fluctuations in the RPM from day to
day may be normal because of changes in humidity,
temperature and elevation.
Diagnostic Display Mode
The wrench icon will display when the gauge is in the diagnostic
mode. To exit the diagnostic mode, turn the key switch off and
on. Any movement of the tires will also cause the gauge to exit
the diagnostic mode.
To enter the diagnostics mode:
1. Turn the key switch off and wait 10 seconds.
2. Lock the parking brake.
3. Place the transmission in neutral.
4. Hold the mode button and turn the key switch to the “ON”
position. Release the mode button as soon as the display is
activated.
5. Use the mode button to toggle through the diagnostic
screens.

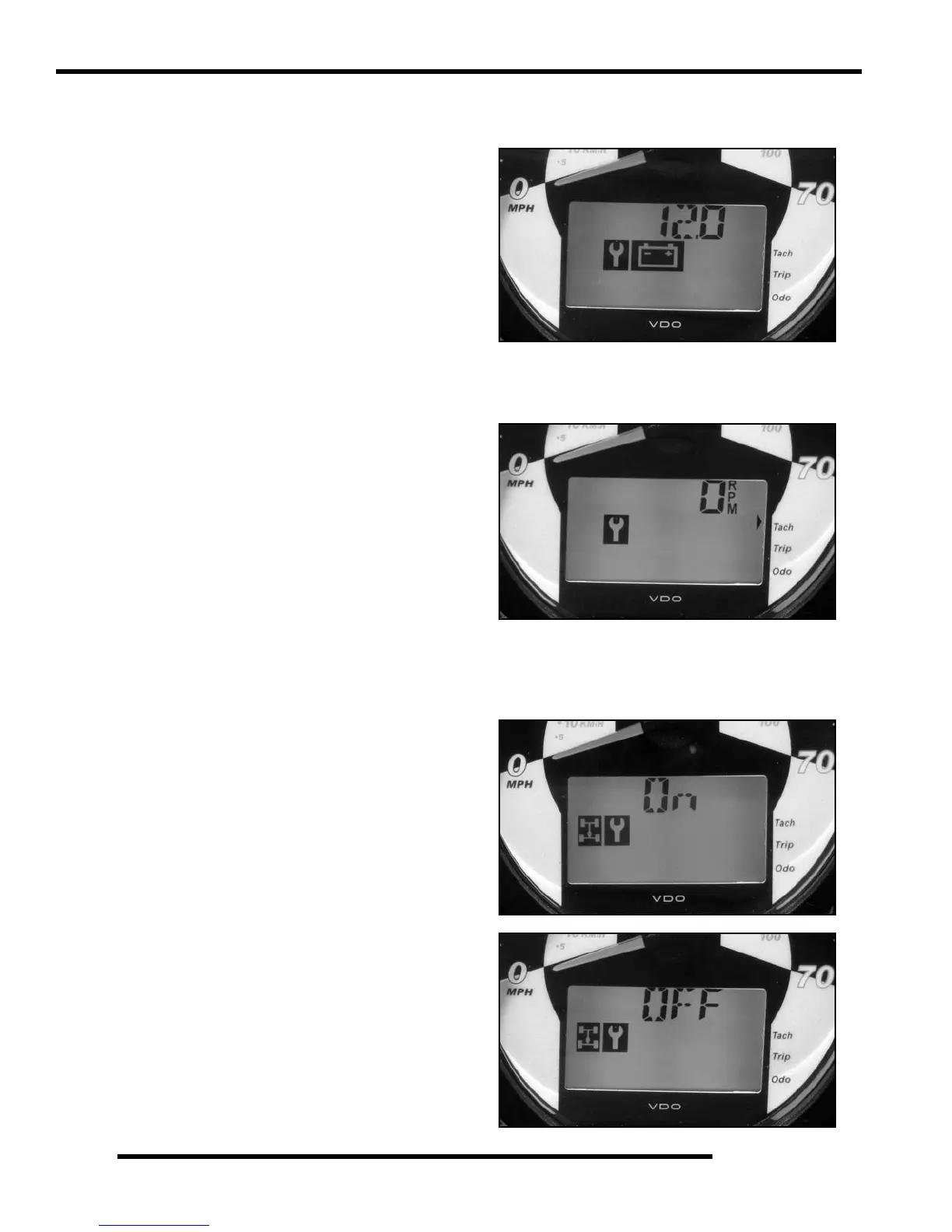

Battery Voltage Screen
View this screen to check battery voltage level.
Tachometer Screen
View the tachometer to check engine speed.
AWD Diagnostic Screen
The gauge indicates whether or not current is flowing through
the AWD coil.
