10.9
ELECTRICAL
10
P
RELIMINARY
V
ERS
I
ON

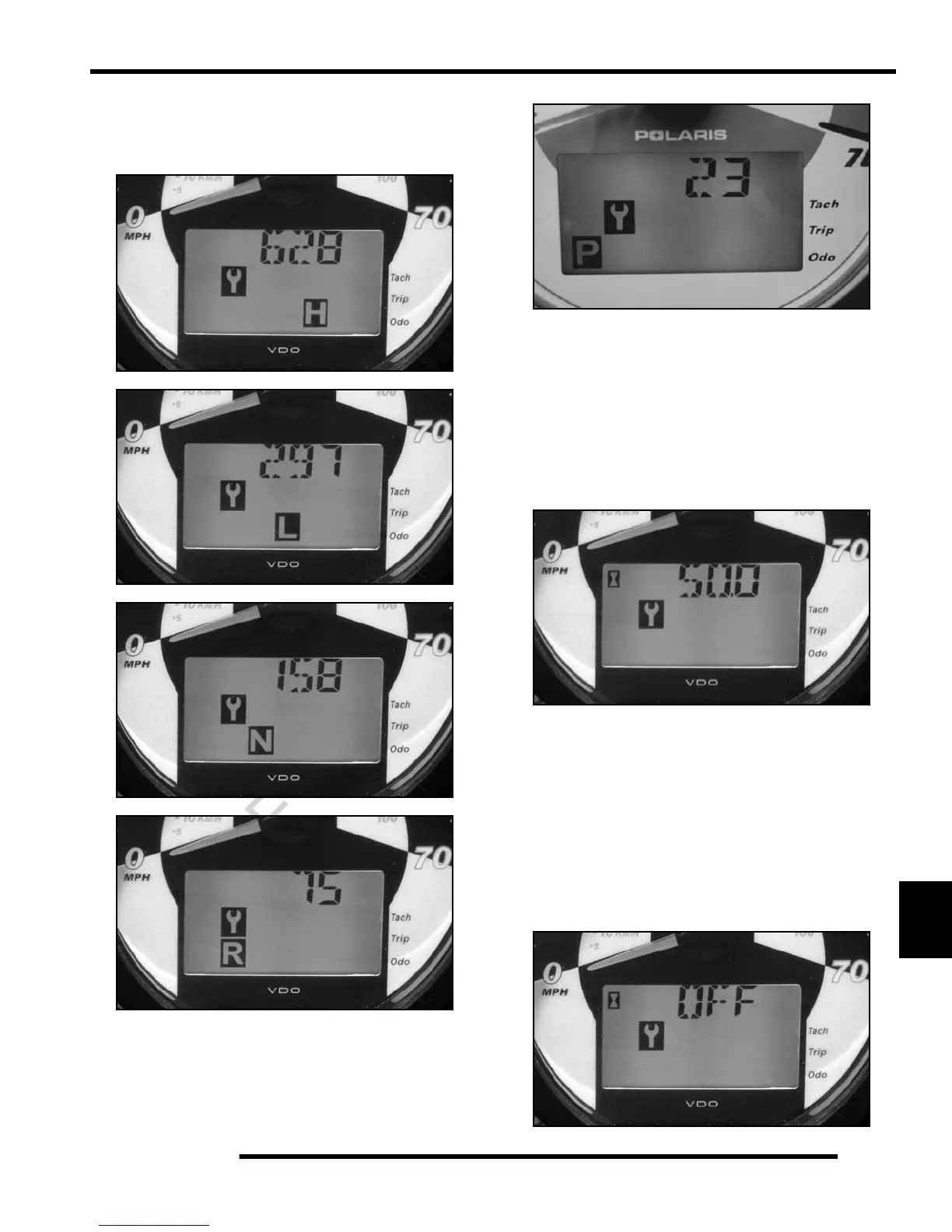

Gear Circuit Diagnostic Screen
This screen displays the resistance value (in ohms) being read at
the gear switch input of the gauge.
NOTE: A 10 - 20% variance from these readings is
within normal parameters.
Programmable Service Interval
When the hours of engine operation equal the programmed
service interval setting, the wrench icon will flash for 5 seconds
each time the engine is started. When this feature is enabled, it
provides a convenient reminder to perform routine
maintenance.
NOTE: The service interval is programmed to 50
hours at the factory.
To enable or disable the service interval:
1. Enter the diagnostic mode.
2. Toggle to the service interval screen.
3. Press and hold the mode button for about seven (7) seconds,
until either ON or OFF appears in the Rider Information
Display, depending on your preference.
