2.13
MAINTENANCE
2
P
RELIMINARY
V
ERS
I
ON
11. Lift up on the floor and remove the panduit strap retaining
the throttle cable and brake line to the frame.
12. Remove the cable end and retainer from the throttle foot
pedal.

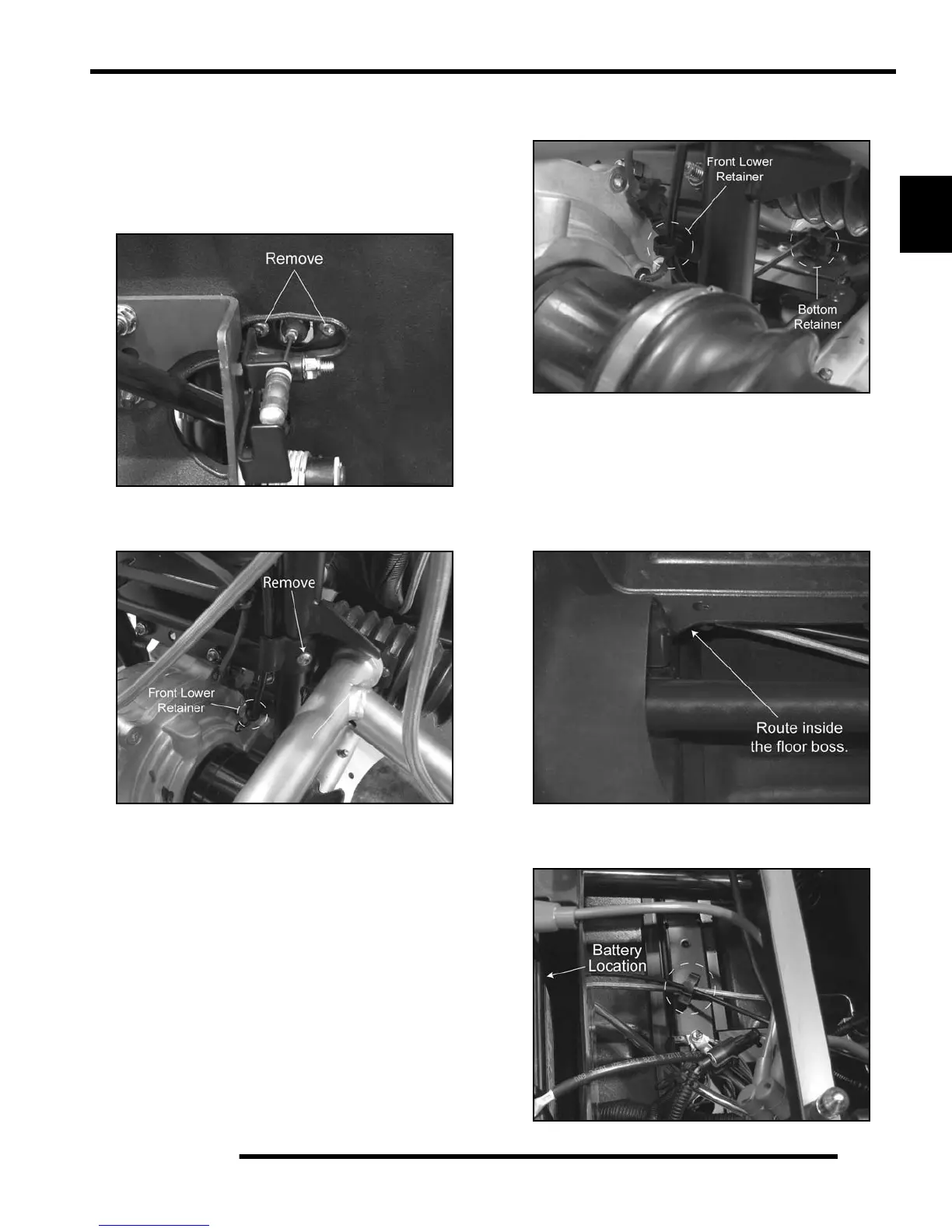

13. Remove the (2) screws retaining the throttle cable bracket
to the frame support.
14. Remove the front upper cable clamp from the vertical frame
tube.
15. Push the rear tabs together and remove the front lower cable
retainer.
16. Pull the throttle cable out through the front left wheel well
and discard the cable.
17. Install the new cable into the vehicle through the front left
wheel well. Route the cable over the upper A-arm and
between the front left-hand drive shaft and frame, and
between the front gearcase and frame.
18. Install the front upper cable clamp making sure to allow
enough cable slack to attach the cable bracket to the frame
support.
19. Open the front lower cable retainer, place over the cable and
reinstall retainer into the frame hole.
20. Route the cable through the retainer at the bottom of the
frame in the floor console opening.
21. Continue to route the cable towards the rear of the vehicle
following the brake line routing.
22. Use the (2) cable ties to retain the throttle cable to the brake
line.
NOTE: Be sure to route the throttle cable inside the
boss on the rear portion of the floor.
23. Insert the rosebud retainer as shown and route the throttle
cable and brake line through the retainer.
To Next Page
