8.16
TRANSMISSION
P
RELIMINARY
V
ERS
I
ON

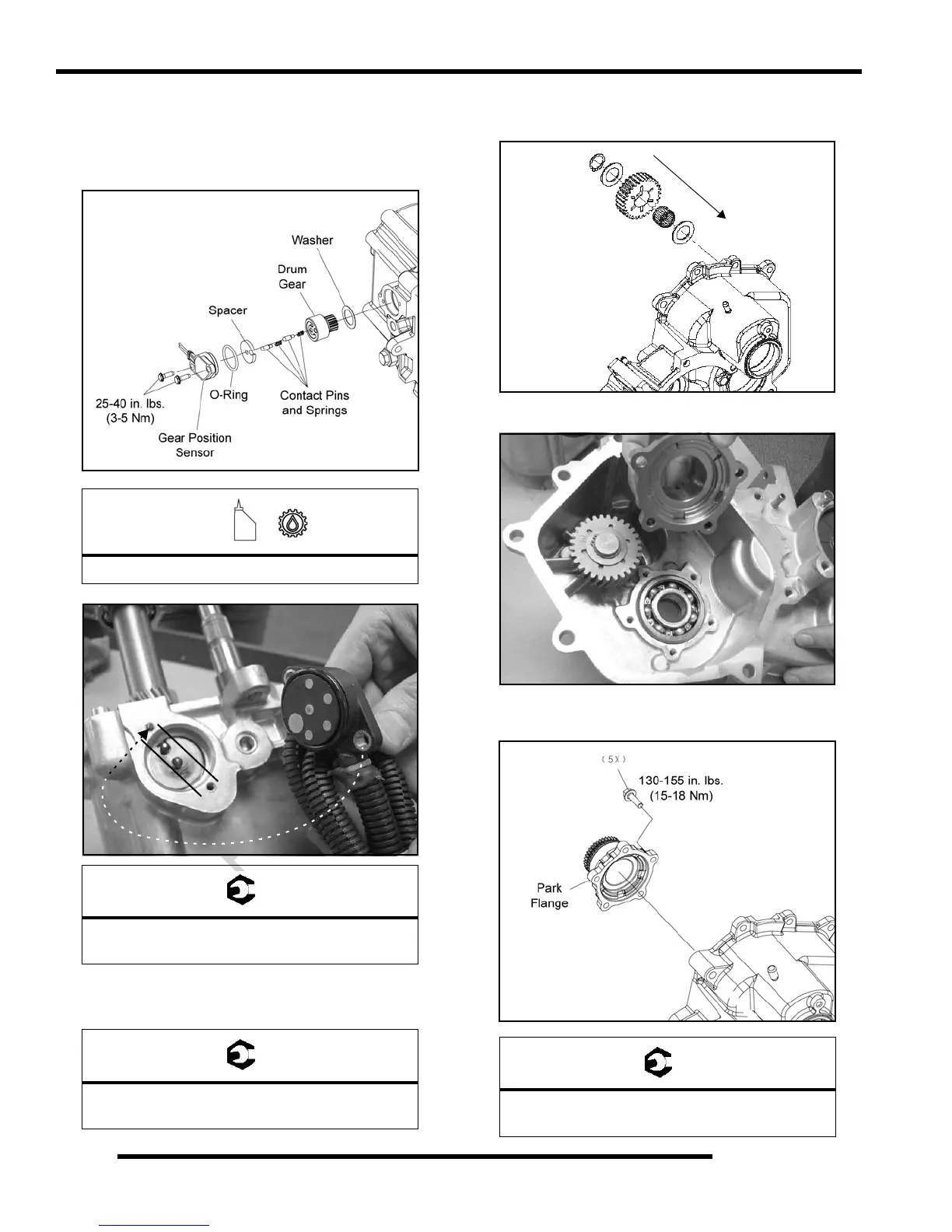

With the transmission in neutral, lubricate and install the thrust
washer, drum gear, plate, springs, contact pins and the gear
position sensor/O-ring assembly. Verify the contact pins are
aligned as shown with the transmission in neutral. Torque the
retaining screws to specification.
12. Complete the shift detent screw installation. Torque the
outer detent screws to specification.
13. Install the reverse idler lower washer, needle bearing, gear,
upper washer and retaining ring onto the idler shaft.
14. Install a new shaft bearing (if required).
15. Install the park flange and torque the (5) screws to
specification.
=
Apply Lubricant to shift drum components
= T
Gear Position Sensor Screws:
25-40 in. lbs. (3-5 Nm)
= T
Outer Detent Screws:
23-27 ft. lbs. (31-37 Nm)
H
P
R
N
L
Neutral
= T
Park Flange Screws:
130-155 in. lbs. (15-18 Nm)
