4. Inspect the air filter element and replace if necessary. Do
not attempt to clean the air filter with anything other that
low pressure compressed air.
NOTE: If the filter has been soaked with fuel or oil it
must be replaced.
NOTE: Service more frequently if vehicle is operated
in wet conditions or at high throttle operation for
extended periods.
Installation
1. Clean the air box thoroughly.
2. Place the filter ring over the end of the filter and install the
filter into the air box. Be sure the filter fits tightly in the
air box.
NOTE: Apply a small amount of general purpose
grease to the sealing edges of the filter and the air
box cap seal before installing.
3. Install air box cap and secure with clips.

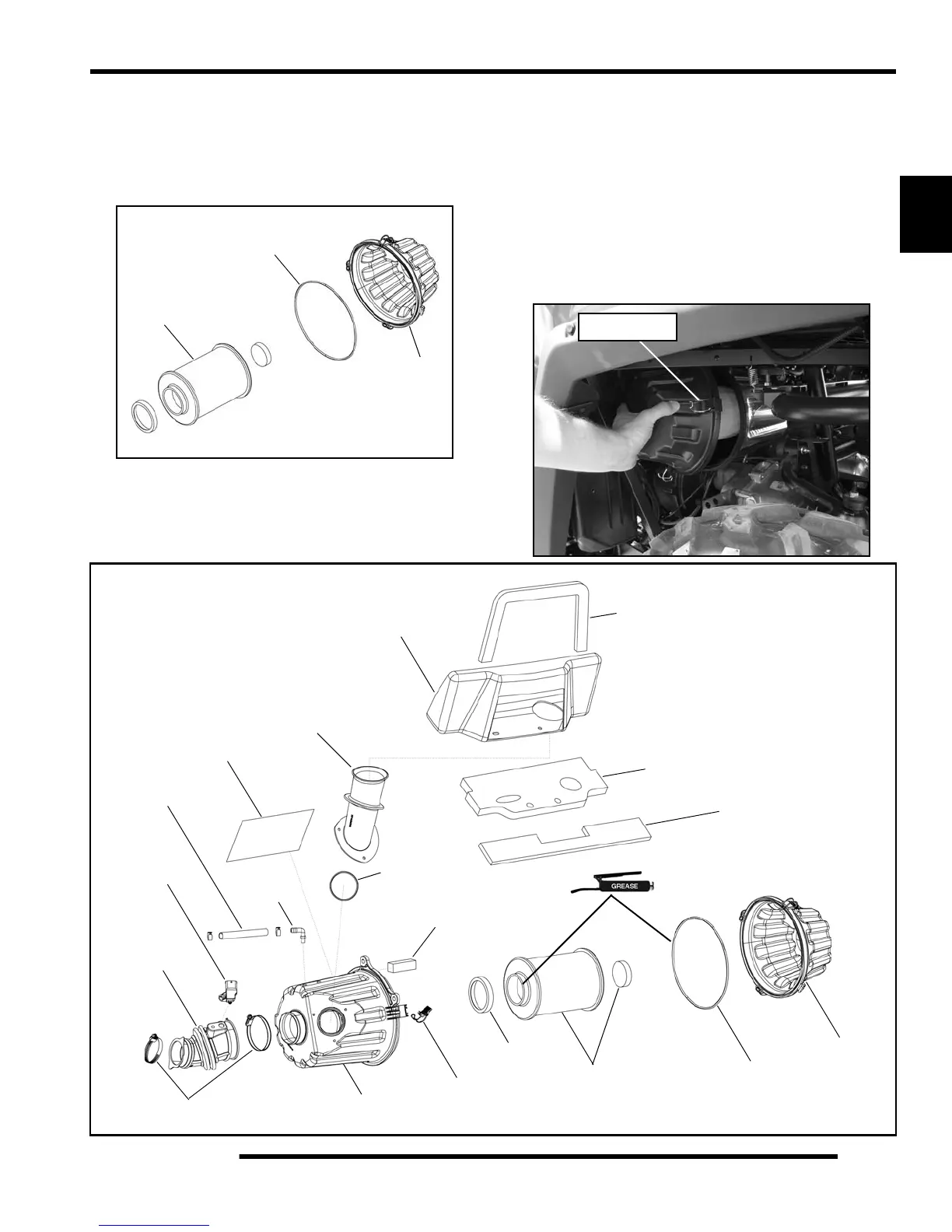

Cap
Seal
Air Filter
Secure Clips
Cap
Seal
Clip (3)
Boot
Air Box Can
Air Intake Duct
Breather
Seal
Fitting
T-MAP
Breather
Intake Box
Air Filter
Clamps
Front
Foam Seal
Filter
Hose
Sensor
Foil
Filter Ring
Primary
Foam Seal
Intake Seal
