9924871 R03 - 2014 Polaris Sportsman® 570 EFI Service Manual
© Copyright 2013 Polaris Sales Inc.
11. Torque sprocket bolts to specification.
Oil Pump Sprocket Bolt:
9 ft-lbs (12 Nm)
Oil Capacity:
Approx. 2 Quarts (1.9 L)
Oil Filter Wrench:
PU-50105 or 2.5” (64 mm)
Oil Type:
Polaris PS-4
Synthetic Engine Oil
Oil Pressure
Minimum Specification:
(using Polaris PS-4 Plus at operating temperature)
10 PSI @ 1200 RPM(Minimum)
40 PSI @ 7000 RPM(Minimum)

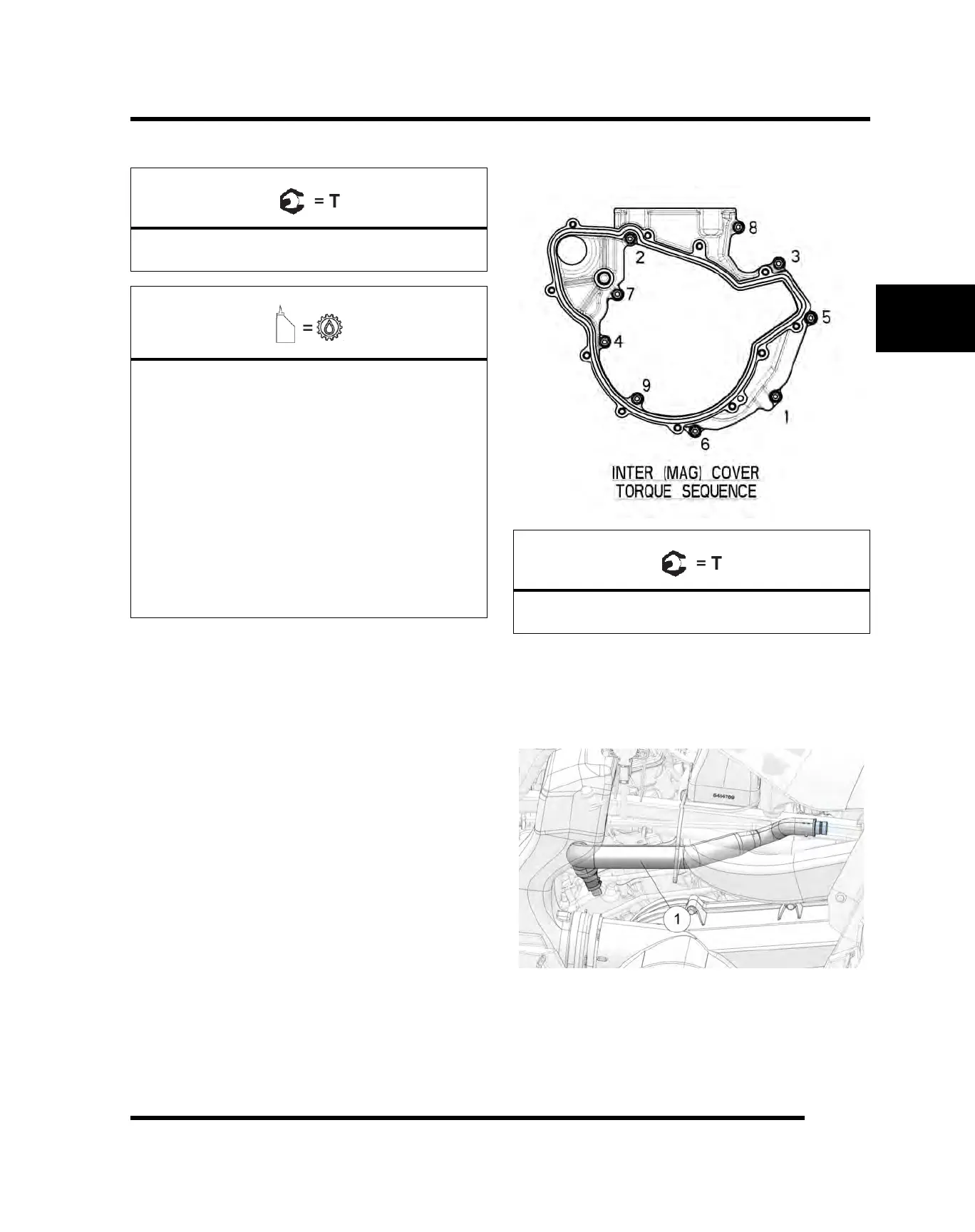

12. Prepare Inter (mag) and mag side crank case by
clean all mating surfaces.
13. Apply a thin film of Crankcase Sealant (PN 2871557)
evenly to a clean and oil-free MAG crankcase mating
surface.
14. Install the inter (mag) crankcase bolts finger tight in
MAG side crankcase.
15. Tighten all bolts evenly until snug.
16. Torque the new crankcase bolts to in sequence to
specification.
Crankcase Bolts (In Sequence):
12 ft-lbs (2 Nm)
Crankcase Breather Valve / Hose
The breather valve is on the hose that runs between the
engine and air box. Be sure breather line is routed prop-
erly and secured in place.
1. Remove the left side panel
2. Remove the hose clamps from the valve and pull the
valve out of the hoses.
ENGINE
