10.16
9924871 R03 - 2014 Polaris Sportsman® 570 EFI Service Manual
© Copyright 2013 Polaris Sales Inc.

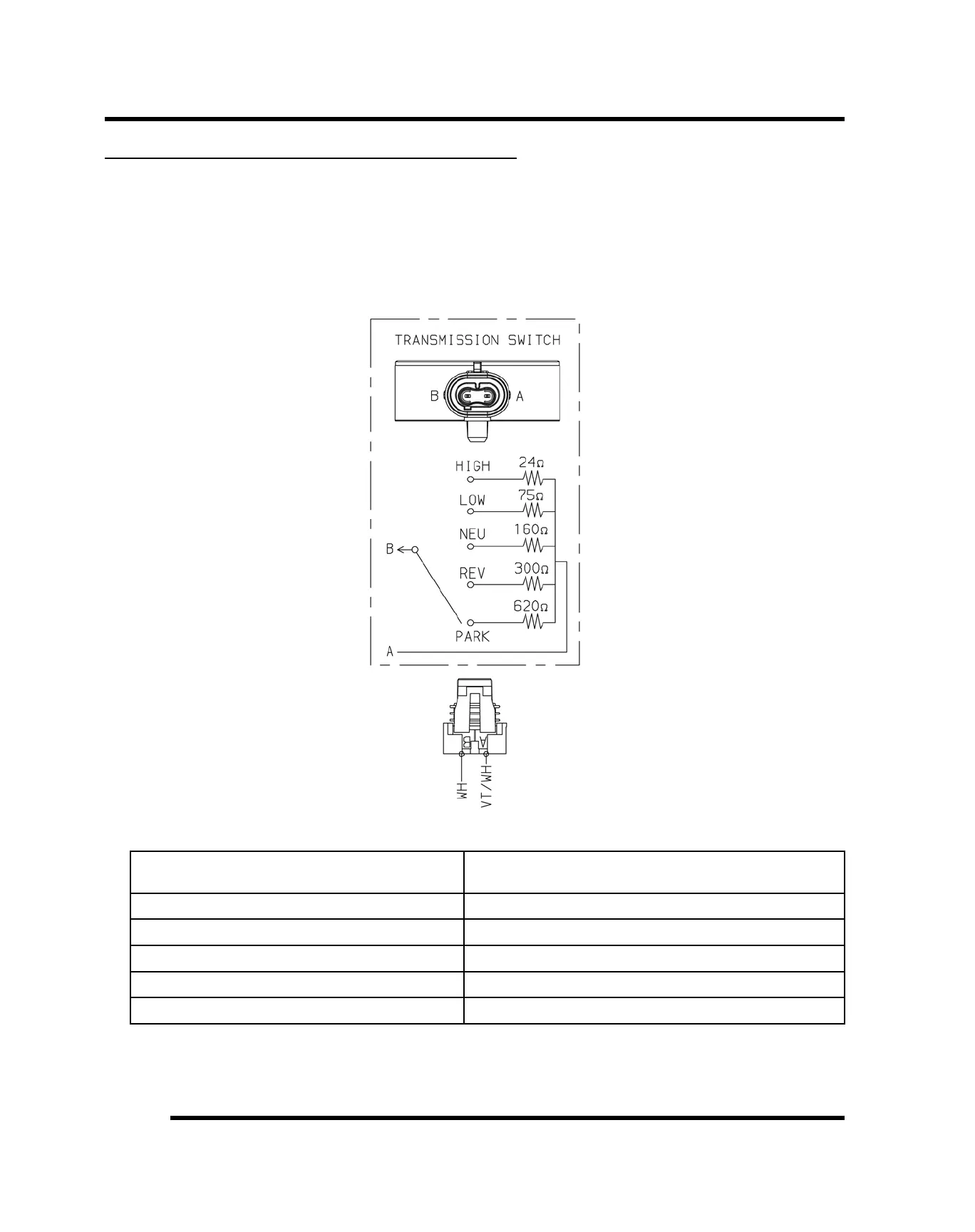

TRANSMISSION (GEAR POSITION) SWITCH
1. The transmission (gear position) switch is located on the RH side of the transmission and can be accessed
through the RH wheel well area.
2. Disconnect the transmission switch harness by lifting the connector lock and pulling on the connector. Do not pull
on the wiring.
3. Test the transmission switch continuity readings for each gear position and compare to the specification table
below.
Gear Position
Resistance Value
when measured at switch terminals A and B
HIGH
24 Ω
LOW 75 Ω
NEU 160 Ω
REV 300 Ω
PARK 620 Ω
ELECTRICAL
