6.36
9924871 R03 - 2014 Polaris Sportsman® 570 EFI Service Manual
© Copyright 2013 Polaris Sales Inc.
Clutch Disassembly

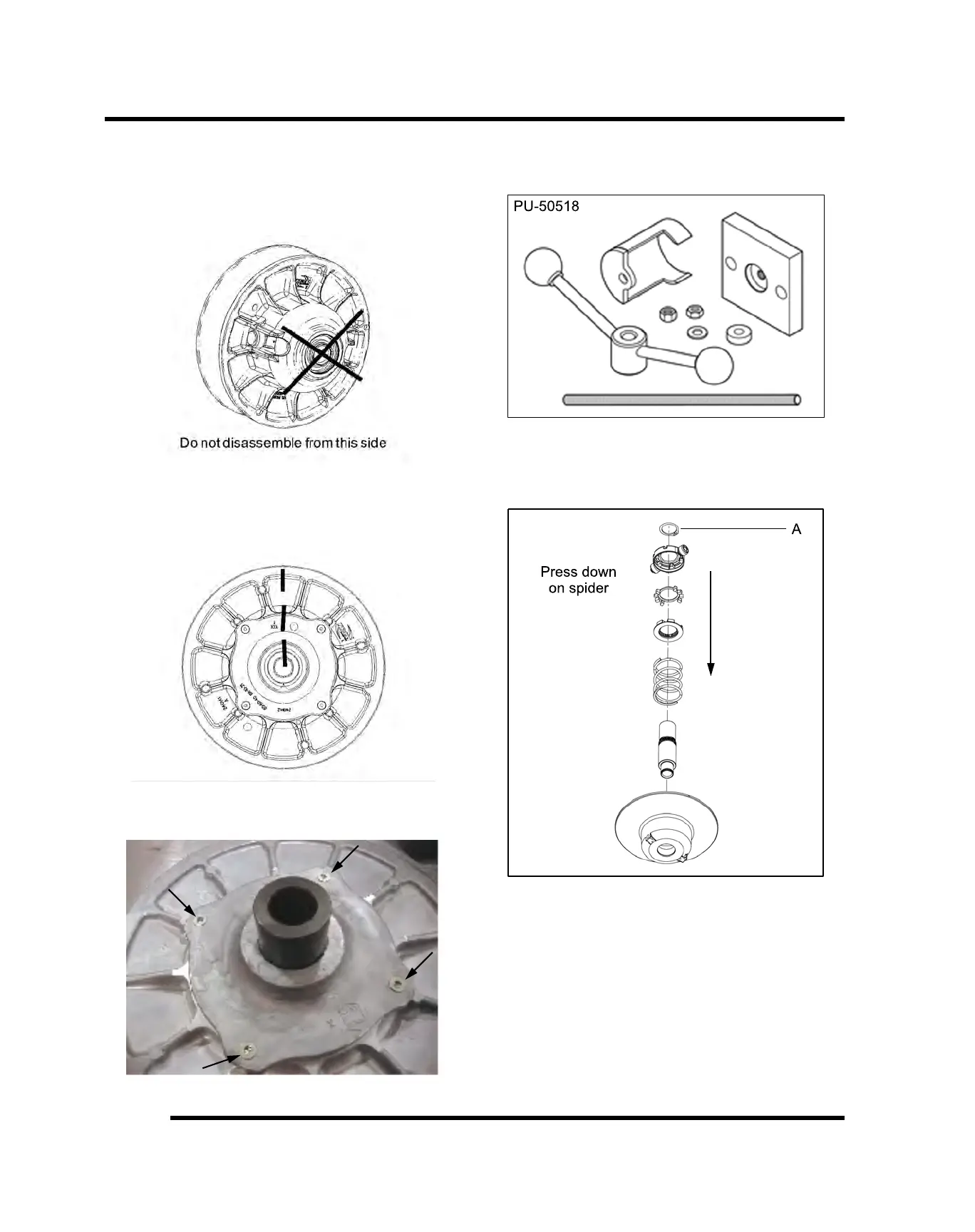

1. Remove driven clutch from the transmission input
shaft. Do not attempt disassembly of the driven
clutch from the outside snap ring. The driven clutch
must be disassembled from the helix side.
2. It is important to mark the position of the shaft, cam
cover and sheave before disassembly or use the X’s
on the components for reference. This will aid in
assembly and maintains clutch balance.
3. Remove the four screws that secure the cam (helix)
assembly using a T25 Torx driver.
4. Place the driven clutch into the Universal Clutch
Compressor PU-50518.
5. Press down on the top of the spider assembly,
pushing the spider onto the shaft. Remove snap ring
(A) and slowly release the assembly.
CLUTCHING
