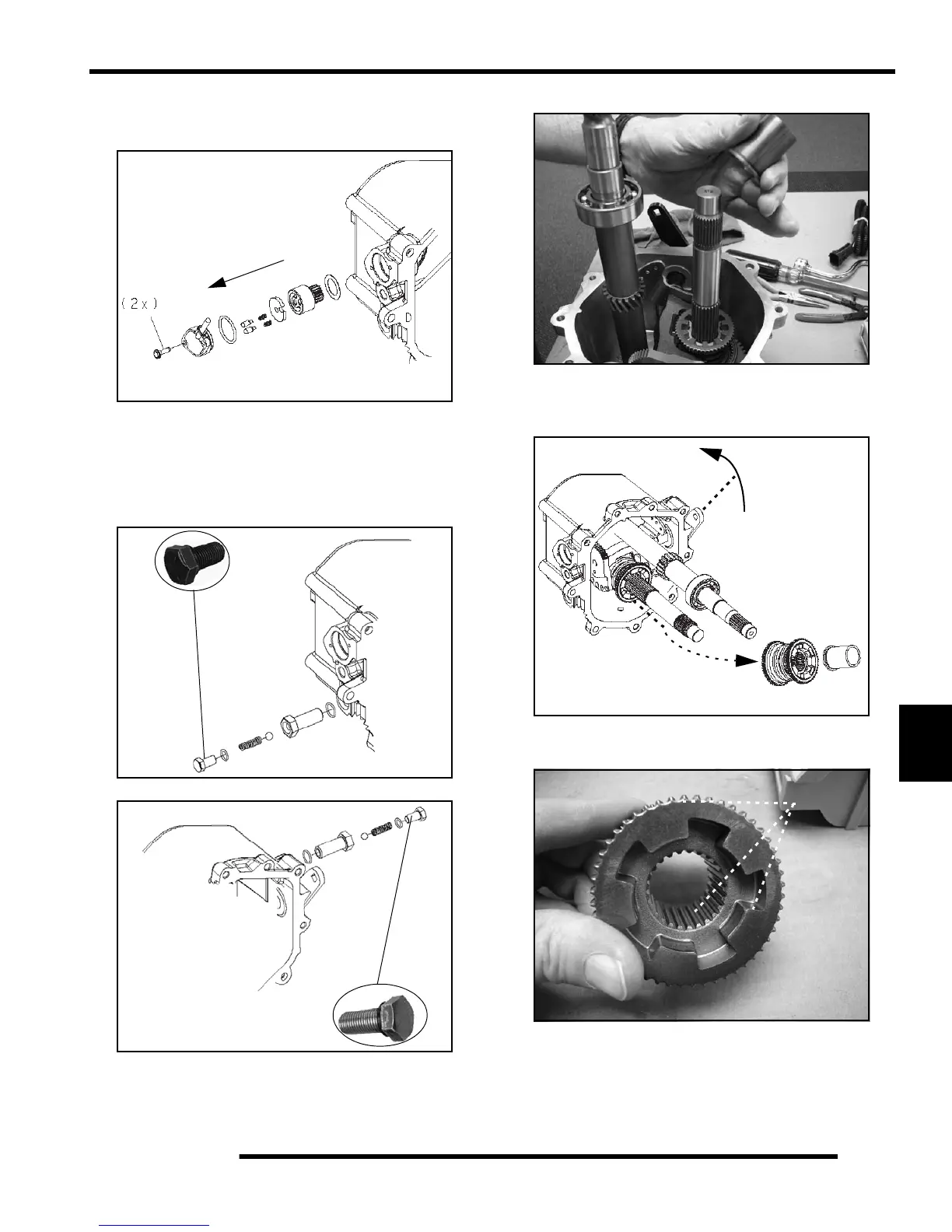

9. Remove the plate, pins, springs, drum gear and thrust
washer from the shift housing. Replace any worn or
damaged components.
10. Remove the inner shift detent screws, springs, and balls
from each side of the shift housing.
NOTE: The clutch yoke side uses the short, "black"
detent screw and the gear selector side detent uses
the longer, "silver" detent screw.
NOTE: Never remove the outer shift detent screw
first. Removal of the outer screw will allow the detent
ball and spring to fall into the shift housing.
11. Remove the park flange sleeve from the clutch shaft.
12. Pull back fully on gear selector arm to bring shift collar up
and disengage the shift collar from the clutch yoke. Lifting
on the clutch shaft may aid in shift collar removal.
13. Inspect the inner and outer gear teeth and splines on both
ends of the shift collar for excessive wear or damage.
INSPECT
