8.12
TRANSMISSION

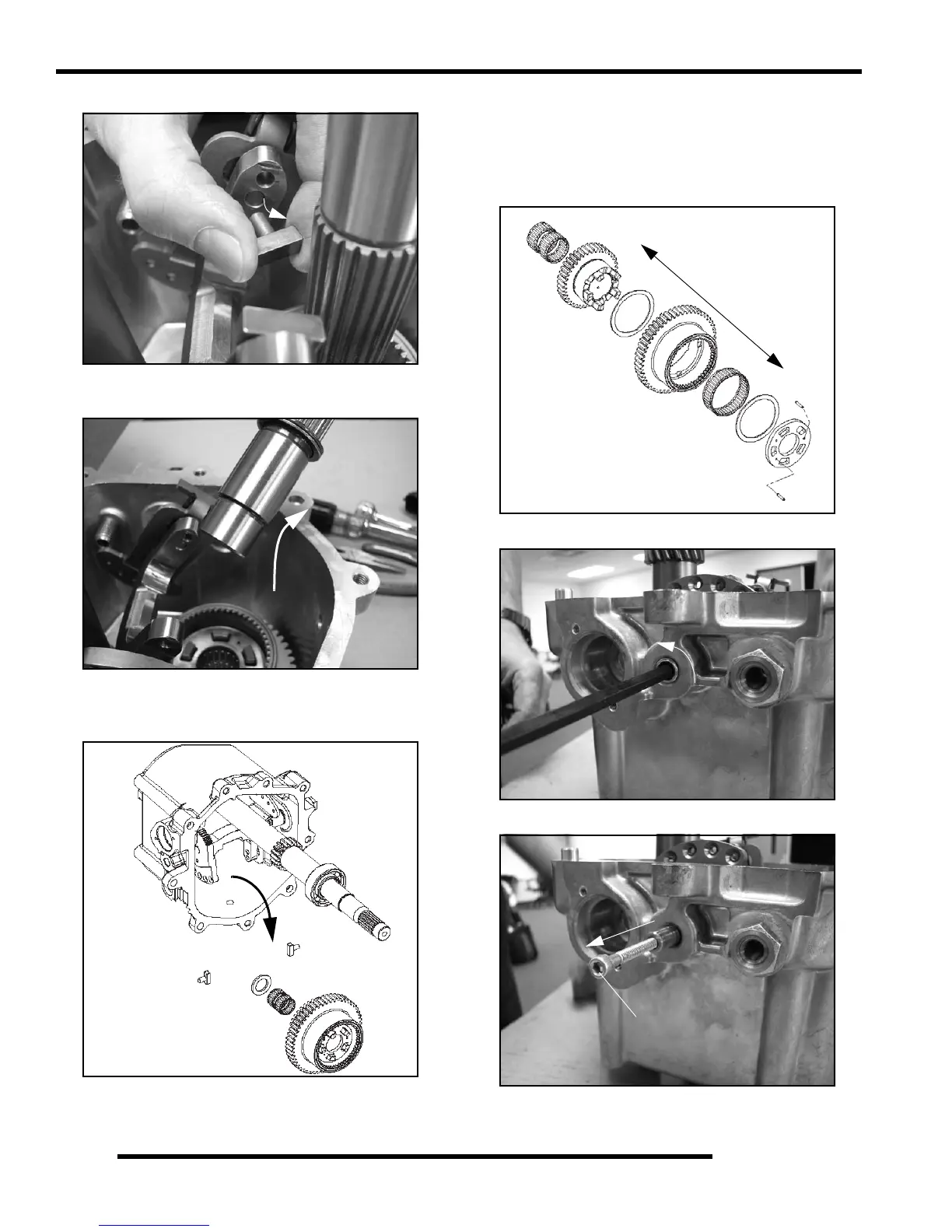

14. Remove the sliding shoes from the clutch yoke.
15. Remove the clutch shaft from the housing. Note that the
forward gear assembly will remain in the housing.
16. Remove the forward clutch gear assembly from the
housing. Note the two needle bearings and washer on the
bottom of the gear assembly.
17. From the back side of the high gear assembly, separate the
high and low gear assemblies by tapping the gear retaining
plate from the roll pins using a brass punch. Note the order
of disassembly on the entire gear assembly (plate, thrust
washer, bearing, thrust washer). Inspect all parts for wear
or damage and replace as required.
18. Remove the clutch yoke pivot pin set screw.
19. Remove the clutch yoke pivot pin using a 10/24 x 2" bolt.
High Gear
Low Gear
Retaining Plate
10/24 x 2”
To Next Page
