8.13
TRANSMISSION
8

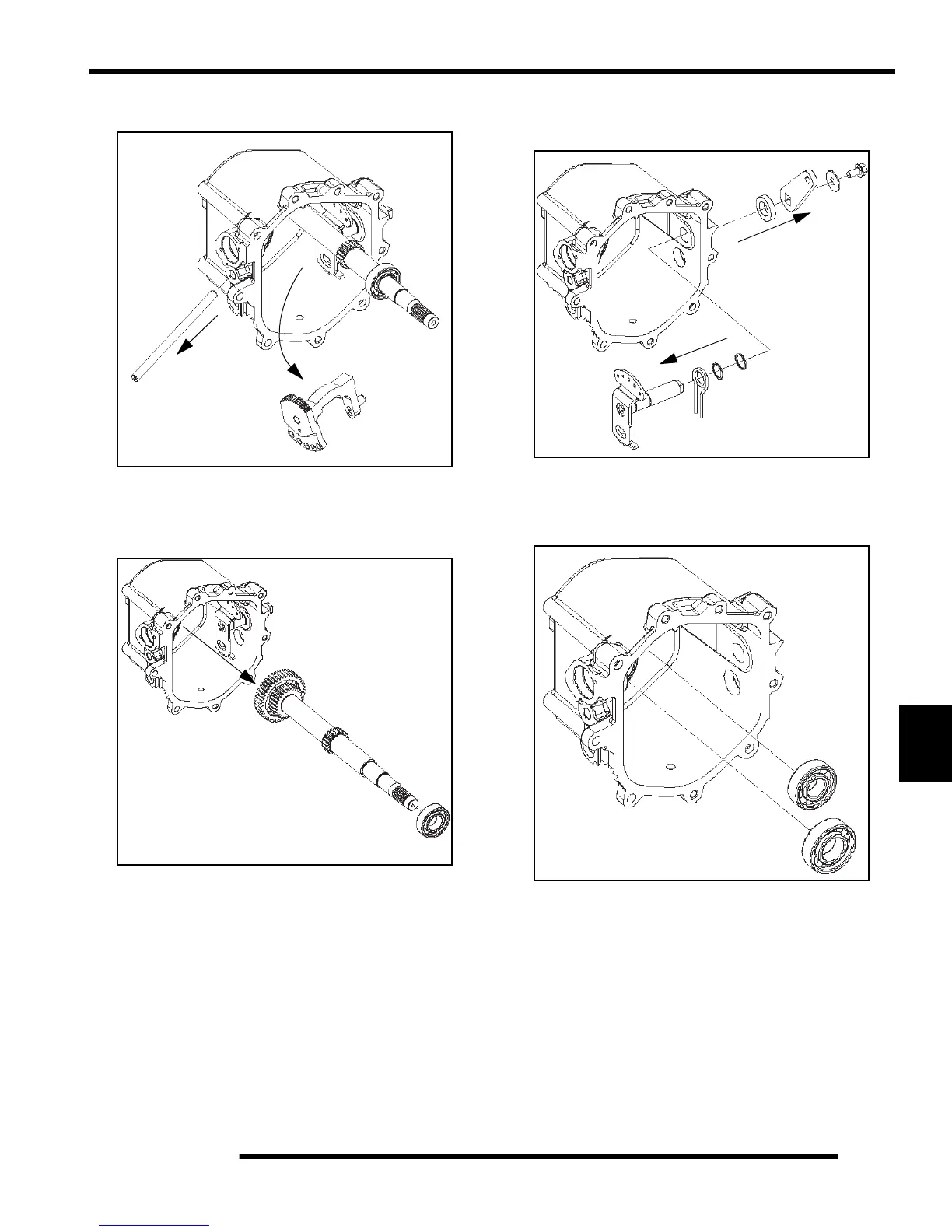

20. Remove the clutch yoke from the gear selector shaft and
spring.
21. Remove the transmission input shaft from the housing.
Inspect the shaft bearing and replace if required using a
shop press. Inspect the gears for damage and/or wear.
Replace the shaft if required.
22. Remove the screw from the end of the gear selector shaft
assembly and remove the assembly from the housing.
Note the clips, spring and plate orientation.
23. Inspect the gear selector shaft and housing for excessive
wear or damage. Replace components as required.
24. Inspect and replace the case bearings if required.
NOTE: Do not pull bearings from case for
inspection, as the removal process damages the
bearing.
