3.22
ENGINE

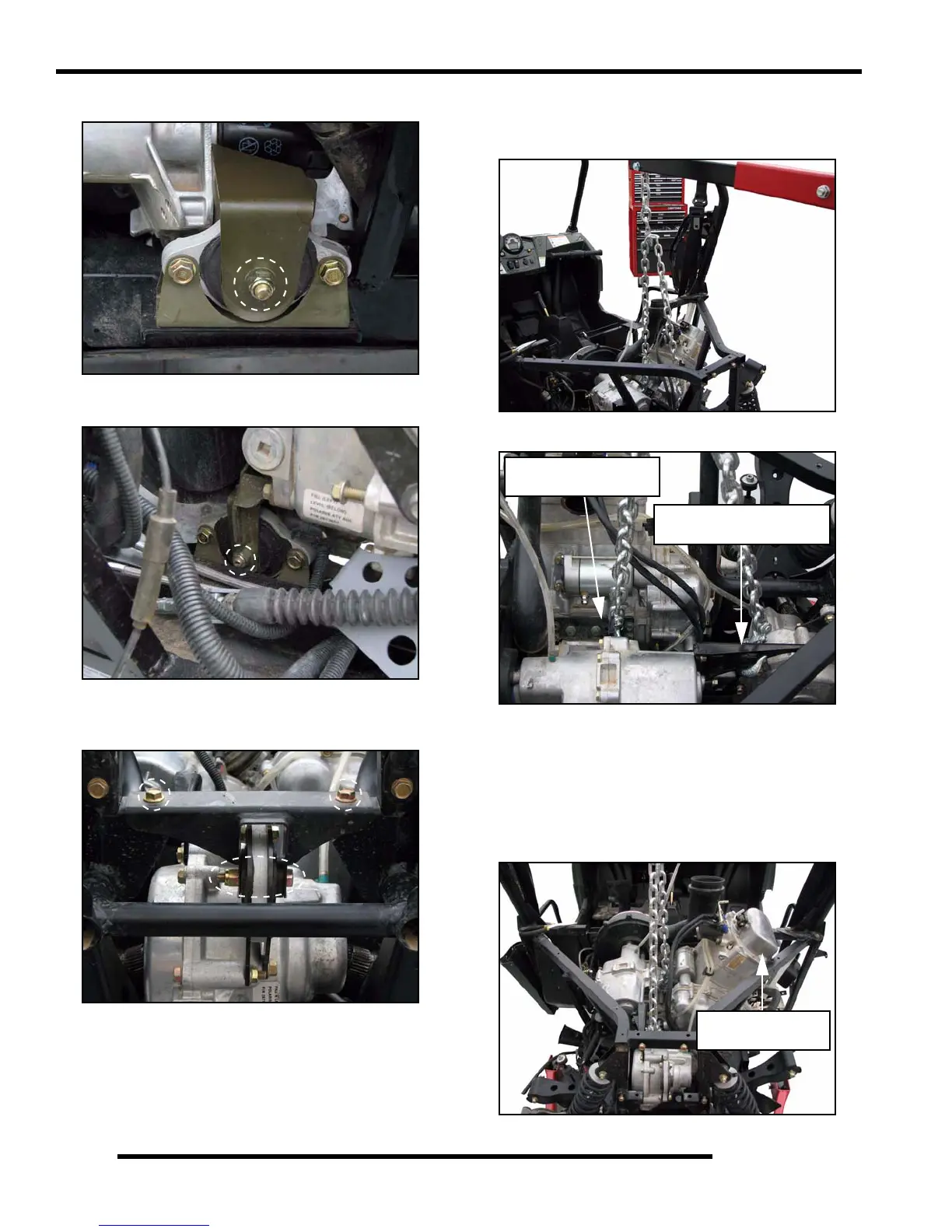

44. Remove RH engine mount fastener.
45. Remove LH transmission mount fastener.
46. Remove the (2) rear gearcase mount bracket fasteners and
mount bolt and remove bracket from vehicle.
NOTE: The use of an overhead or portable engine
hoist is the only recommended method for removing
and installing the engine / transmission / rear
gearcase assembly.
47. Using an engine hoist, hook a chain between the engine /
transmission mounting plate and the transmission / rear
gearcase mounting plate.
NOTE: Have an assistant help guide the engine in
and out of the vehicle while using an engine hoist to
prevent personal injury or damage to vehicle
components.
48. Lift the front portion of the assembly out first to allow the
engine valve cover to clear the vehicle frame.
Transmission/Gearcase
Mount Plate
Engine/Transmission
Mount Plate
Allow valve cover
to clear frame
To Next Page
