Potterton Paramount four - 3.3 Dimensions and connections

3.3 Dimensions and connections

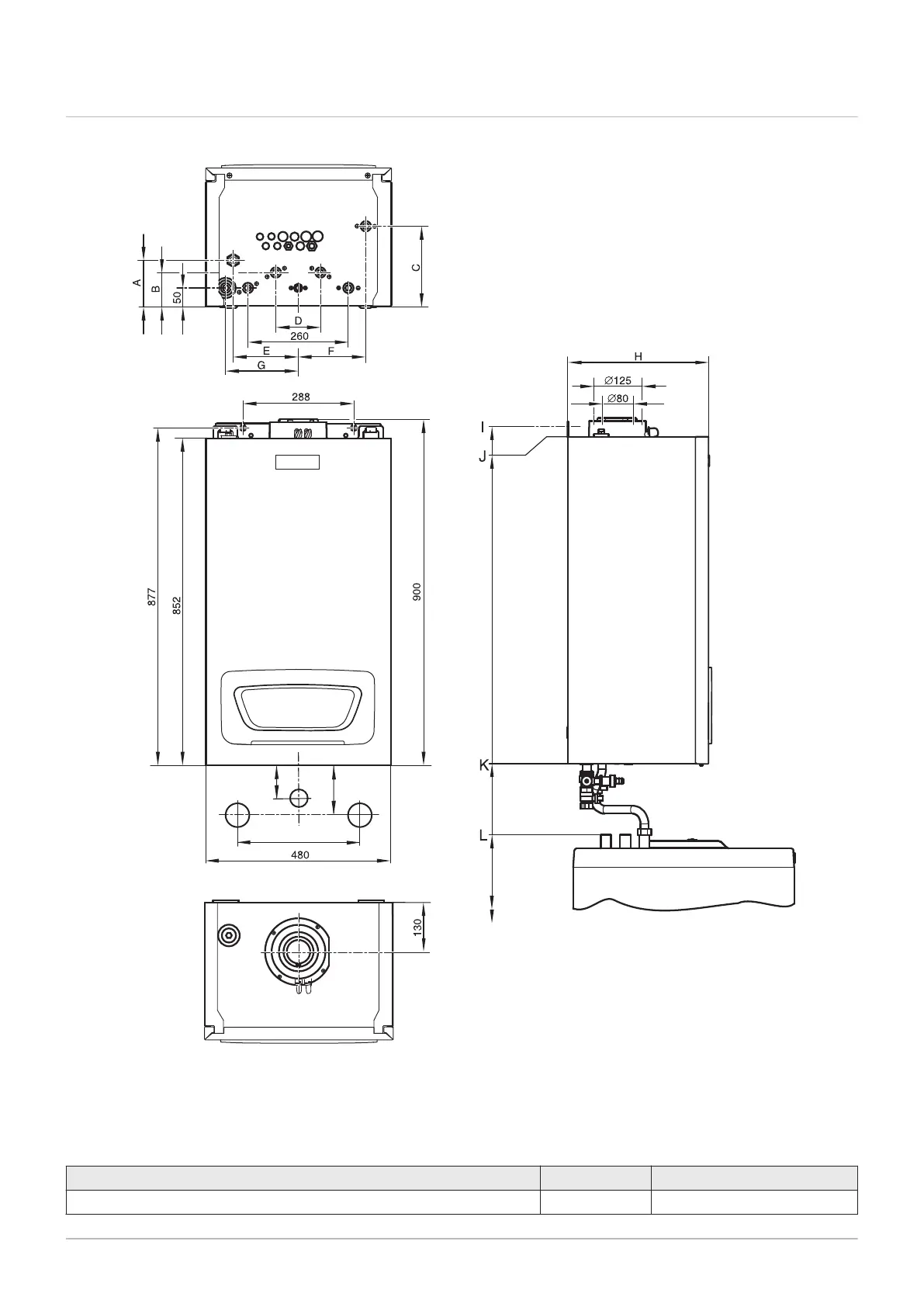

Fig.2 Dimensions and Connections Paramount four 30 / 40
1 2
3
4
5
6
7 8
260
70
97
RA-0000169
9
1 HV – Heating flow
2 HR – Heating return
3 2. HR – Heating return, heating circuit 2
4 Gas – Gas connection
5 SiV – Safety valve
6 KA – Condensate connection
7 SV – Storage tank flow (accessory)
8 SR – Storage tank return (accessory)
Tab.7 Dimensions and connections
Model Paramount four 30/40
HV – Heating flow G 1"
