7.4.5 Gas valve

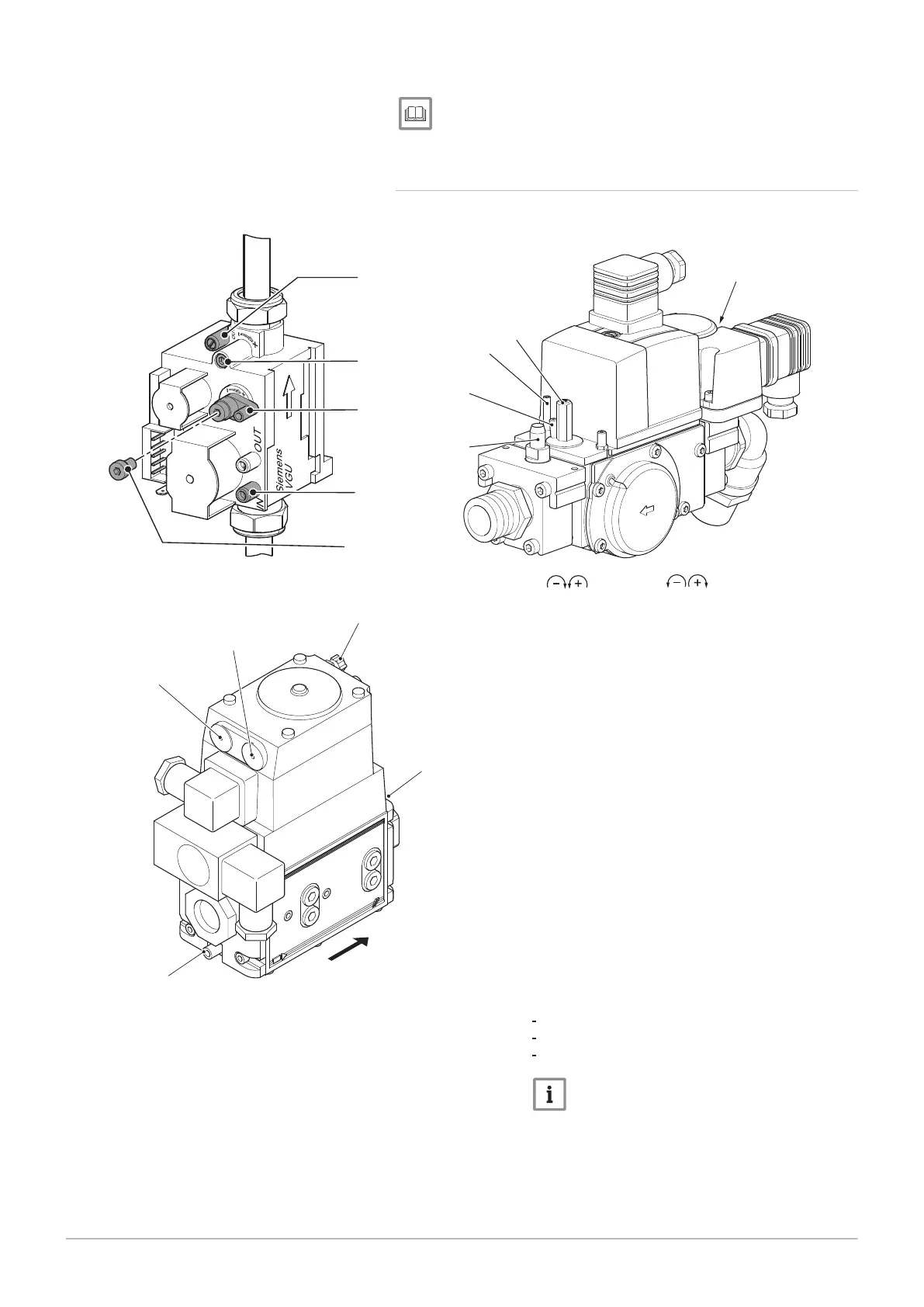

Fig.18 Gas valve
2
6
3
1
4
RA-0000476
1
2
3
4
5
1
2
3
4
6
x
2: 3:
1 Measuring nozzle for injector pressure
2 Setting for full load
3 Setting for low load (remove protective plug in ad
vance (5))
4 Measuring nozzle for connecting pressure
5 Protective plug
6 Fan pressure
x Flow direction
Setting of jet pressures:
Paramount four 30 - 60: Torx T15
Paramount four 80: Allen key 2,0 mm
Paramount four 95 - 115: Allen key 2,5 mm
Note
The keys are located in the accessory kit.
