CONTROL CONNECTION
65
EN
The following figure provides an standard wiring overview of the control terminals.

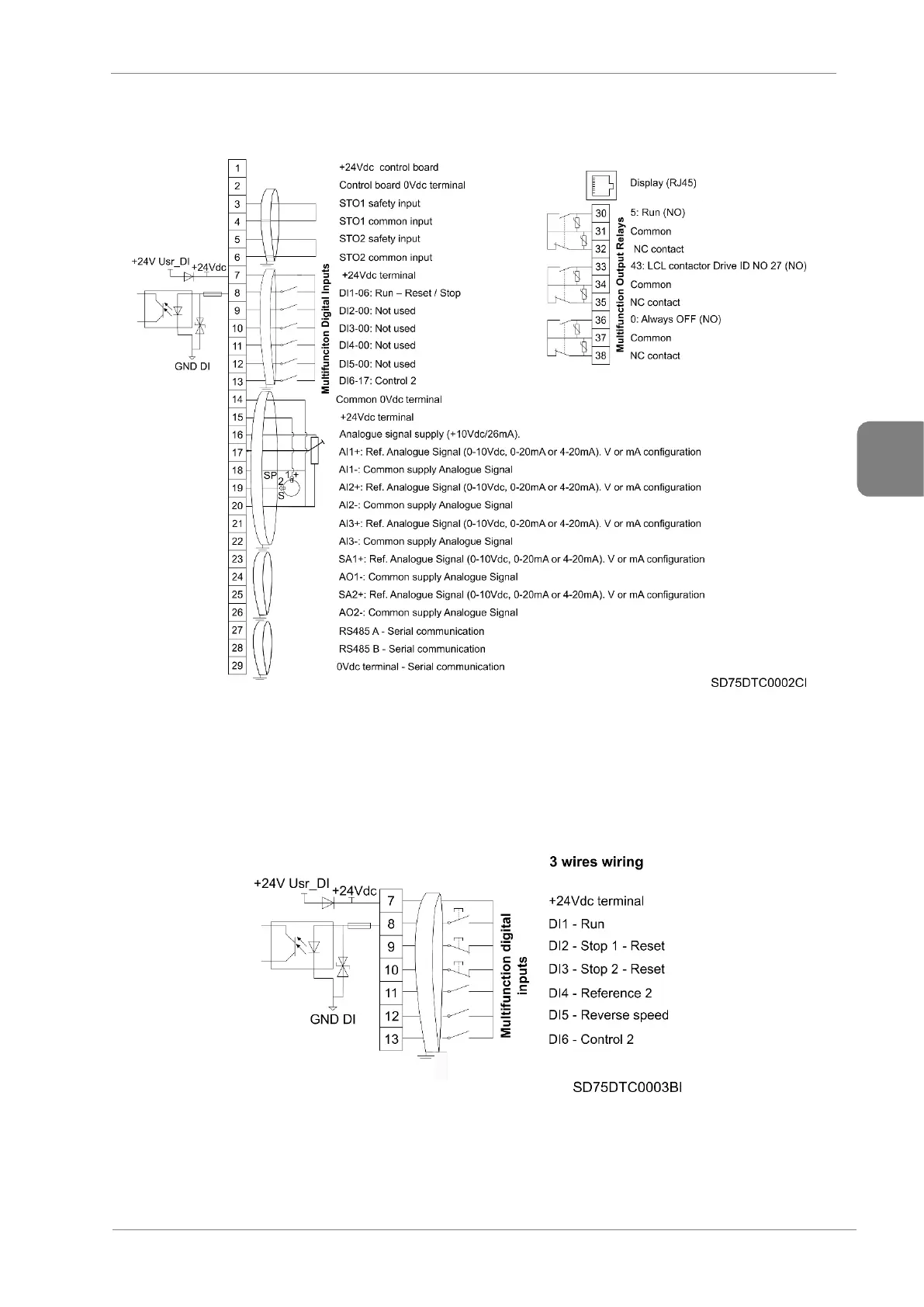

Example of control terminals standard wiring
Digital inputs can be configured individually or collectively. Analogue inputs can be configured as
comparators. For further information on configurations, please refer Software and Programming Manual.
The following figure shows the wiring detail of the X1 connector with the wiring of the three-wire start /
stop buttons.
Wire control terminals wiring
