45
www.powerbox-systems.com

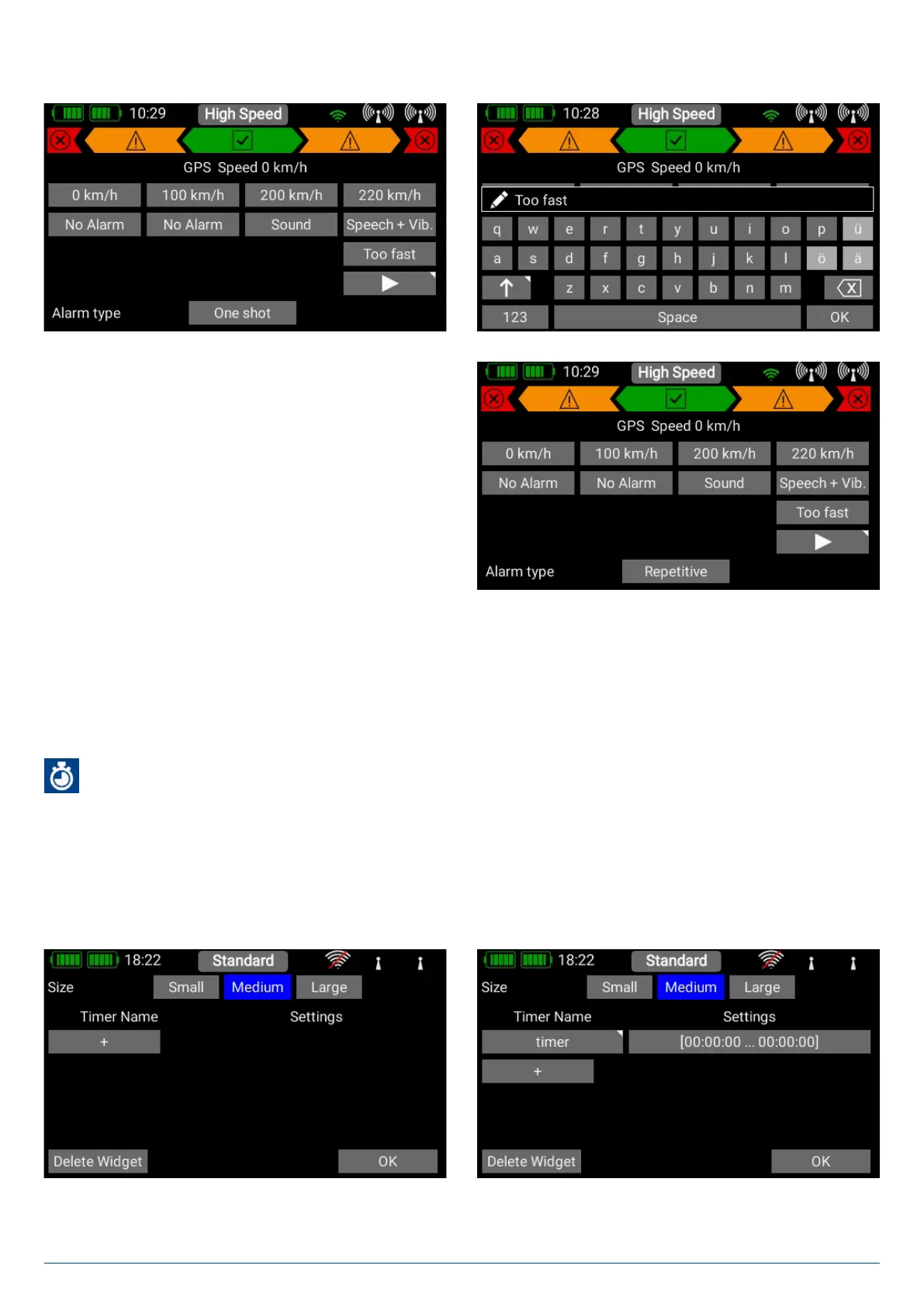

The final step is to select the type of warning you want. In our example a warning tone is set to be generated at 200 km/h, while a
spoken message is generated at 220 km/h.
If you opt for speech output, you can enter any text you wish to
be spoken.
Alarm Type at the bottom of the screen lets you determine
whether the alarm is to be generated only once, or every time the
sensor value exceeds or falls below the set threshold. Press the
Back button to return to the Sensor Overview.
4.1.10. Erase
The last button x in the Sensor Overview can be used to erase individual telemetry values from the widget.
Once you have entered all the settings, press OK at the bottom of the screen.
4.2 Timer
The ATOM permits you to use eight different, independent timers. For each timer it is possible to set a maximum of six different
alarm sounds or spoken messages.
If you select the Timer widget type, you will see the screen display shown on the right. Here you can set the timer, and the asso-
ciated alarms and spoken messages. Press the + button to set up a timer:
Briefly press the field under Settings in order to configure the timer:
4.2.1. Timer Name
Briefly press the Timer Name field if you wish to assign a meaningful name to the timer.
