In the overview you will now see the relative percentage travels of the servo outputs.

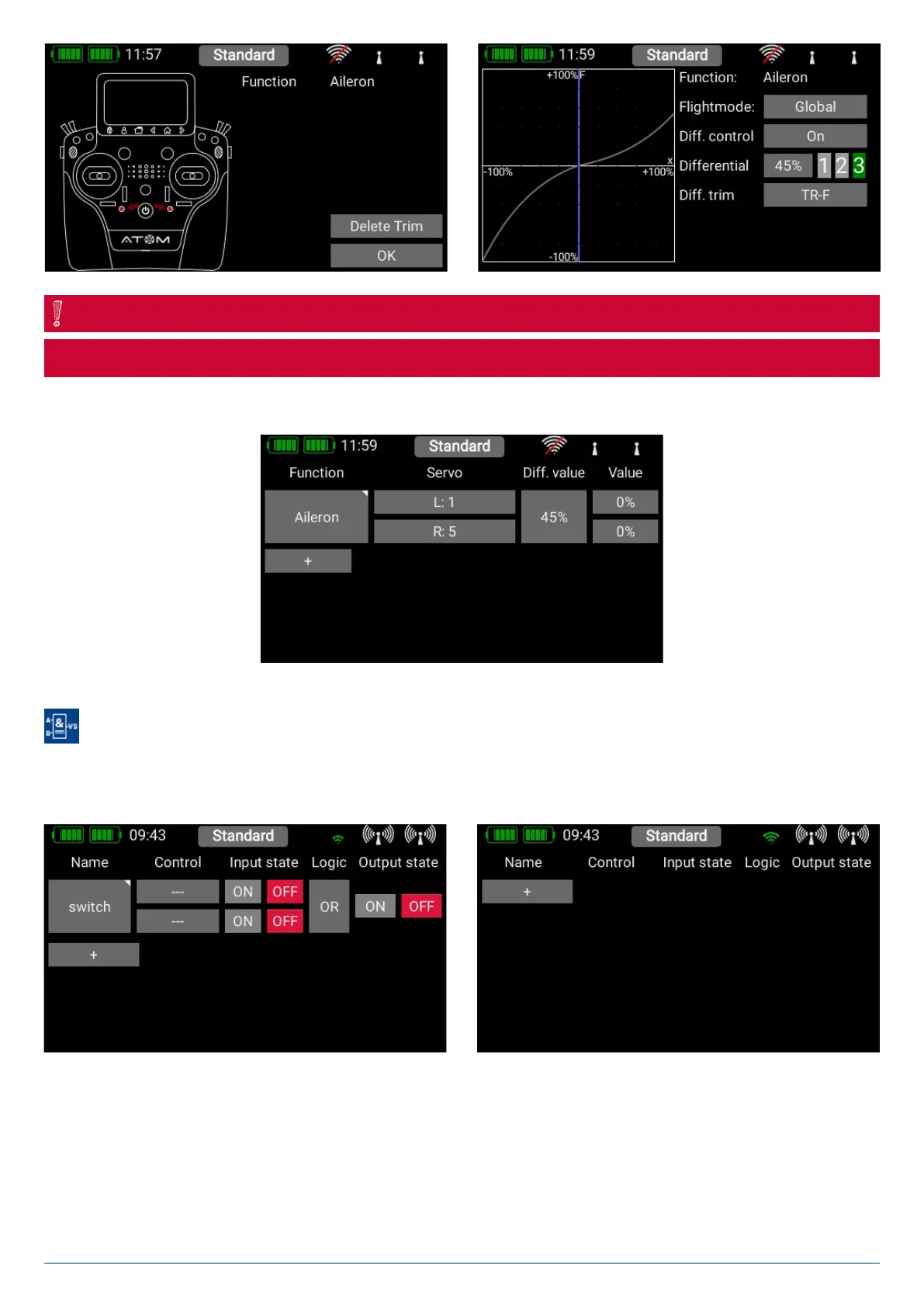

3.6 Virtual Switches
The virtual switches can be used to digitize linear transmitter controls by setting up a switching threshold to generate a switched
state. It is also possible to set up a logical link between two or more switches or linear controls. This facility can be used as a very
easy method of implementing functions such as safety switches for electric power systems.
Select the Virtual Switch button in the menu, then press + to set up a new virtual switch. You can rename the virtual switch
by pressing the switch button. As you can see, this field includes a small triangle at top right. This means that a function can be
selected here by holding your finger on it. In this case the virtual switch can be erased again by holding your finger on the switch
button.
First select a transmitter control by briefly pressing the blank field (three dashes) under Control; press Control again at the next
screen. You can now select a switch or linear control as transmitter control by operating it.
Do not assign this function to a trim which is already associated with one of the primary functions!
CAUTION
