K Series User Guide

AES3

input

Analog

input

AES3

gain

Input selection

Mono/Stereo

Selection

To/from

other channel

SigGen

INPUT

PROCESSING

CHANNEL

PROCESSING

SigGen

To power amplifier

MUX

GAIN

INPUT EQ

MAIN

DELAY

Raised Cosine Filters EQ

CHANNEL

PEQ16

GAIN

FIR EQ

CHANNEL

DELAY

LO-PASS

FILTER

HI-PASS

FILTER

POLARITY

PEAK

LIMITER

TruePOWER

LIMITER

16 Band Parametric

Equalizer

Custom

Coeffs FIR

IIR and FIR Linear Phase Crossover Enhanced Limiter

DAMPING

CONTROL

Damping Control and

Cable Compensation

Alignment delay

Speaker

and

Power

Amp

Monitor

Output Current

Output Voltage

Load power

estimation

Load impedance

estimation

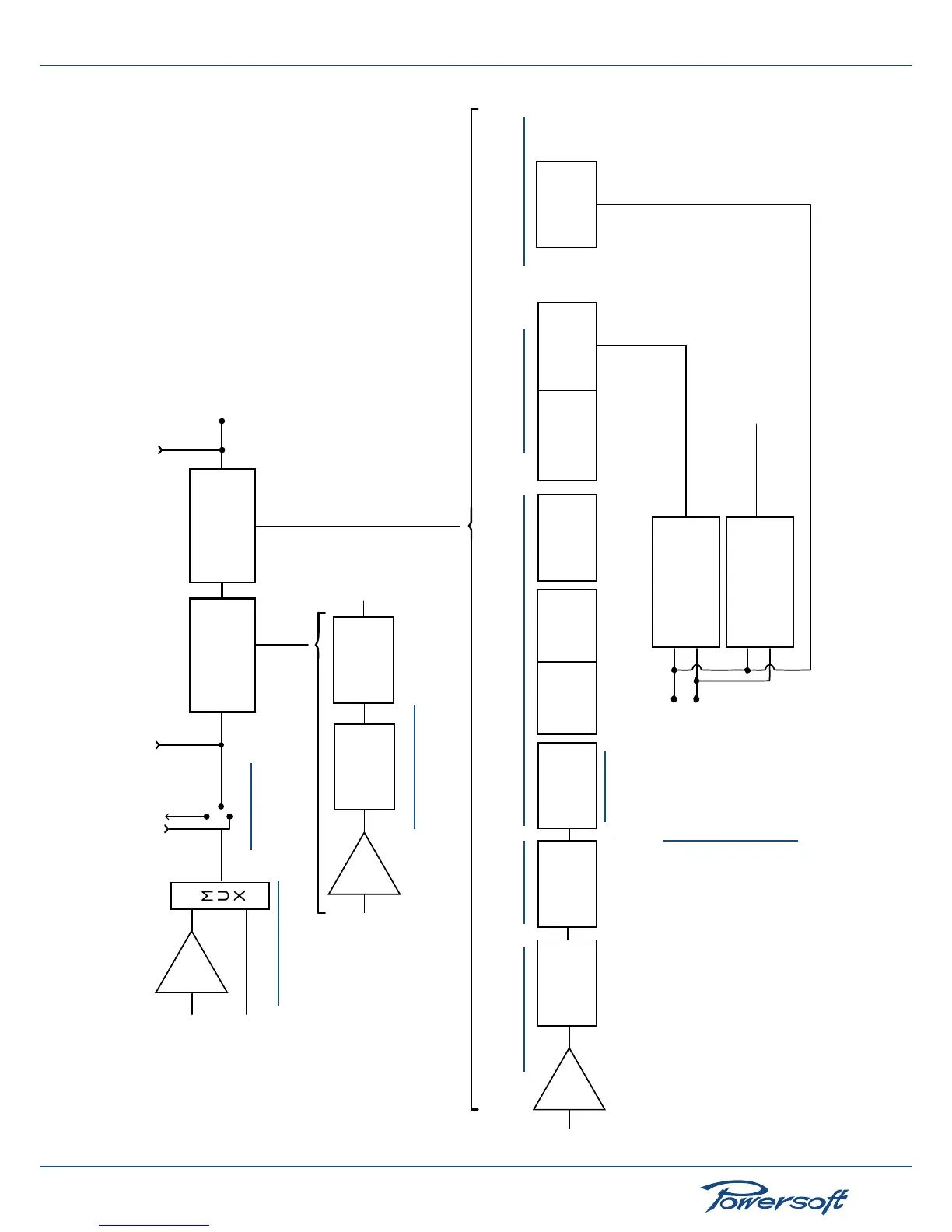

FIGURE 38: DSP processing chain

Default Chapter3
- Table of Contents3
1 Warnings5
- Important Safety Instructions5
- Approvals5
- Warning Notices6
  - Location6
  - Precautions Regarding Installation6
- Safety Rules6
- Speaker Damage6
- Speaker Output Shock Hazard7
2 Front and Rear Panel Reference Figures8
3 Welcome11
- Introduction11
- The K Series11
- More Sound and Less Weight11
- The Show Always Goes on11
4 Installation11
- Unpacking11
- Mounting11
- Cooling11
- Operating Precautions12
- Grounding12
- AC Mains Connection12
5 Connections and Operation12
- Connecting Audio Inputs13
  - Analog Connection13
  - AES/EBU Connection13
- Connecting Audio Outputs14
- Internal Signal Path Polarity14
- Remote Control Connection15
- Amplifier Setup and Settings16
  - Introduction16
  - The Main Screen and the LED Bars16
- Front Panel Buttons17
6 The Main Menu17
7 Amplifier Settings20
- Output Attenuation20
- Input Gain/Sensitivity20
- Input Select20
- Max Output Voltage20
- Max Mains Current21
- Clip Limiter CH1 - CH221
- Gate CH1 - CH221
- Mute at Power on21
- Idle Mode22
8 DSP Settings22
- The DSP Processing Chain22
- DSP Settings Menu22
  - Common Settings22
- Channel Settings23
- CH1/CH2 Setup29
  - Auxiliary Delay29
  - Diagnostics29
- Input EQ29
- Reset Input Section29
- Reset Output Section29
9 Network Operations29
- User's Introduction to AESOP30
- Network Robustness33
- Network Connections33
10 KAESOP Network Settings Menu36
- Device Mode36
- Addressing Mode36
- Set Address37
- Show Net Config37
- Audio37
11 Display37
- Output Meters37
- Temperature37
- Mains Meters38
- Amplifier Name38
12 Local Presets38
- Locked Presets38
- Locked Bank Size38
- Recall Local Preset38
- Save Local Preset39
- Change Lock Code40
- Erase All Presets40
13 Setup41
- Hardware Info41
- Hardware Monitor41
- LCD Contrast41
- Key Locking and Setting the Keylock Code41
- Single Channel Muting41
14 Protection42
- Turn-On/Turn-Off Muting42
- Short Circuit Protection42
- Thermal Protection42
- DC Fault Protection42
- Input/Output Protection42
15 User Maintenance42
- Cleaning42
- Service42
- Dust Removal42
18 Appendix43
- Custom Ethernet/Aes3 Combo Box43
- Amplifier Error Codes44
- Smartcard Function44
- Control Software45
  - Powersoft's Armonía Pro Audio Suite45
  - Third Party Controls45
16 Warranty43
17 Assistance43
19 Technical Specifications46
- Specifications48
- K2 Dsp+Aesop49
- K3 Dsp+Aesop51
- K6 Dsp+Aesop53
- K8 Dsp+Aesop55
- K1056
- K10 Dsp+Aesop57
- K2058
- K20 Dsp+Aesop59
