Battery Cabinet Installation
61
Powerware
®
9170
+
UPS User’s Guide S Rev B www.powerware.com
–
+

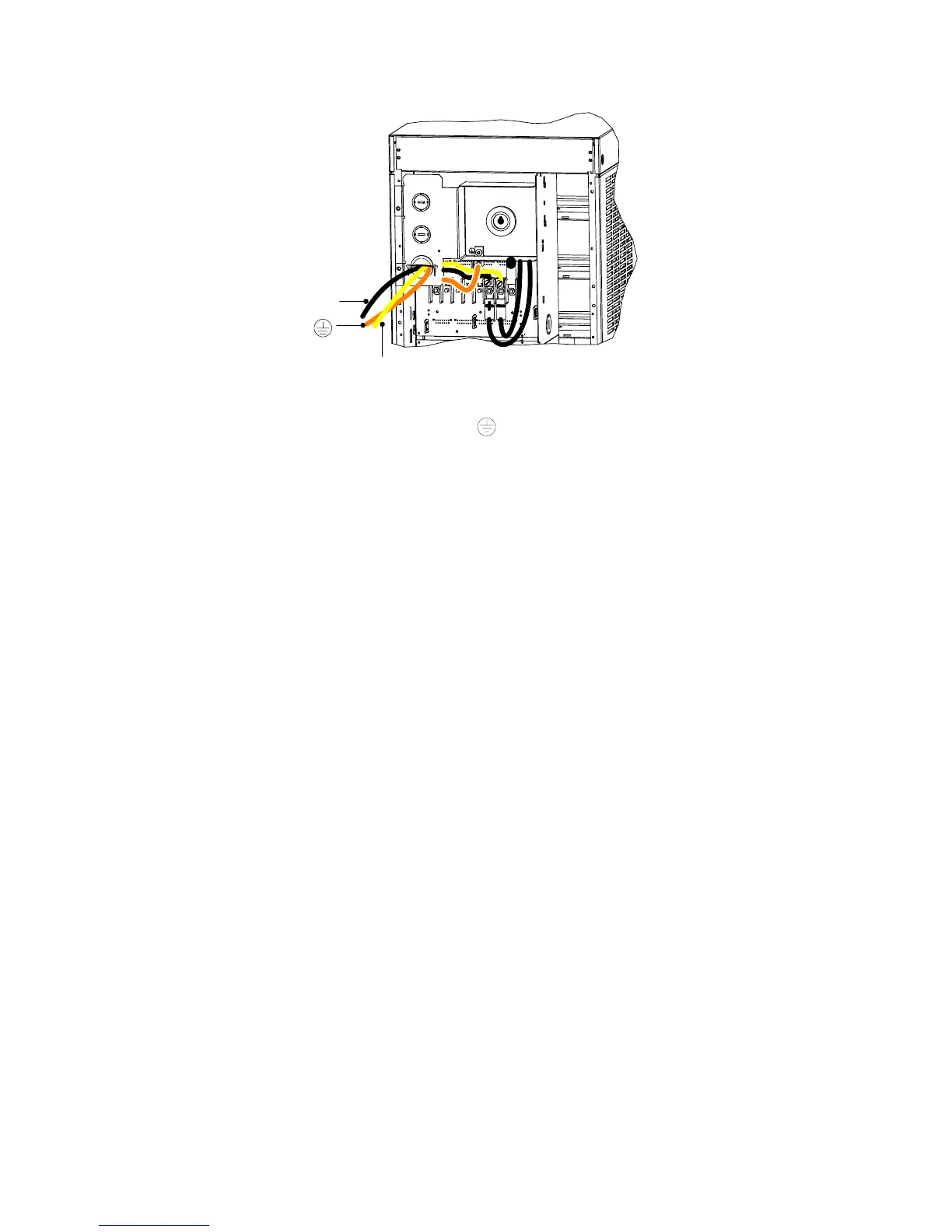

Figure 46. Battery Cable Installed in Battery Cabinet
17. Secure the +,the– ,andthe conductors to the proper
compression lugs on the battery cabinet backplane as shown in
Figure 46. Torque all three compression lugs to 75–85 in lb
(8.5–9.6 Nm).
18. If an additional battery cabinet will be connected to the first, in
a daisy-chain configuration, use another external battery cabinet
cable assembly for the connections between the battery
cabinets (see Figure 47).
19. Locate the daisy-chained cable on the rear of the first battery
cabinetinthesectionbelowthelocationofthefirstcable
assembly. Follow this procedure for connecting any additional
daisy-chained battery cabinets.
