Operation
80
Powerware
®
9170
+
UPS User’s Guide S Rev B www.powerware.com
Md: AUTO M4-B7-12
St: ON LINE
acvout 232 V
Config OFF Menu

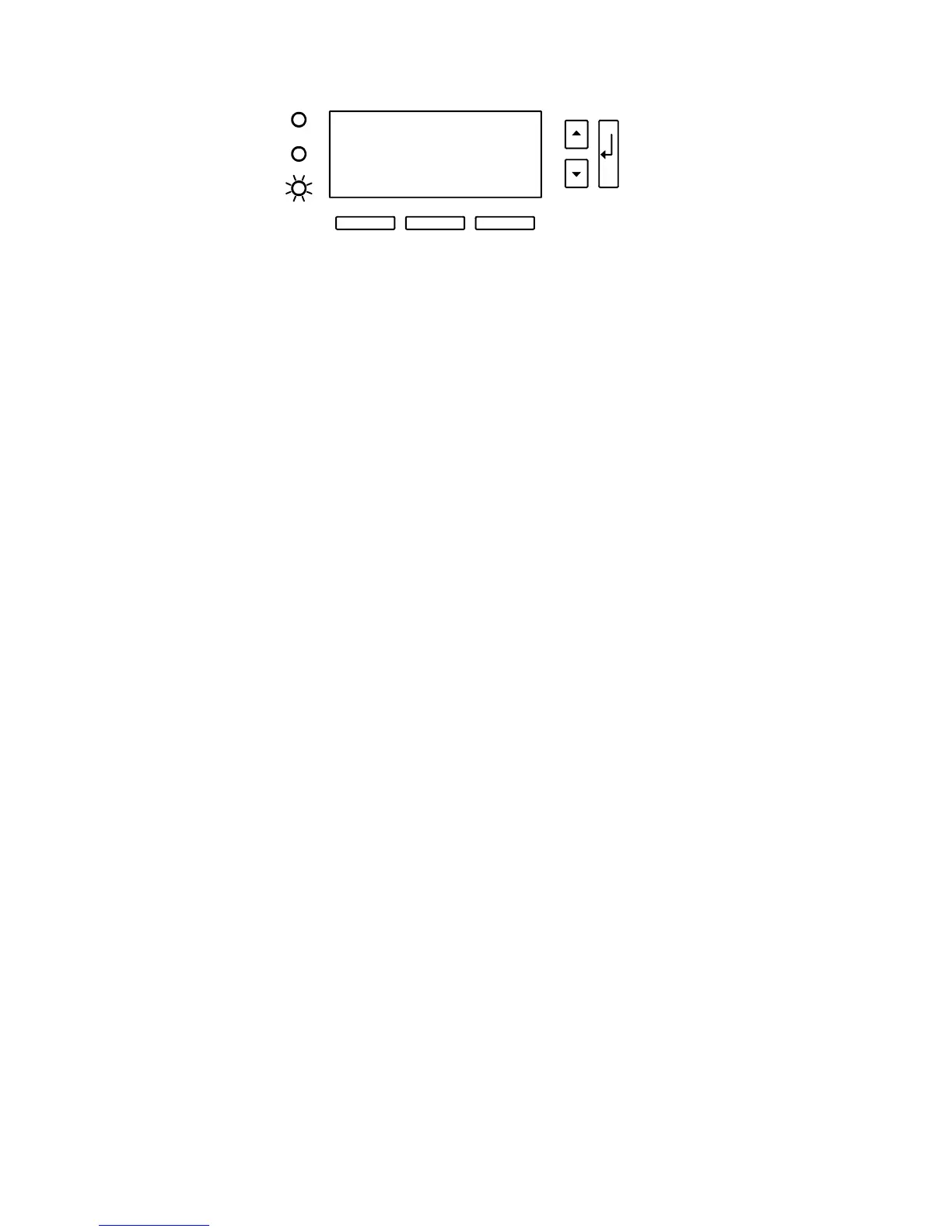

Figure 56. Front Panel Display (Normal Operation)
Operating parameters shown on the third line of the display vary
depending on the operating mode. You can use the
and
buttons to
scroll through the available parameters. After five seconds of inactivity,
the system automatically saves the parameter that was selected as the
default display parameter. The parameters that are available for display
are:
쑺 Phase 1 Input Voltage
쑺 Phase 2 Input Voltage
쑺 Phase 1 Output Voltage
쑺 Phase 2 Output Voltage
쑺 Total System Percent Load
쑺 Phase 1 Percent Load
쑺 Phase 2 Percent Load
쑺 Battery Voltage
쑺 Estimated Battery Run Time
