PR POWER PR4000 - Checking Coolant Level, Adding Coolant

PR4000 9mt 4x1000W METAL HALIDE
43
TL073-11-02-03
01-02-2011
14.8 CHECKING COOLANT LEVEL, ADDING COOLANT
• Operations:

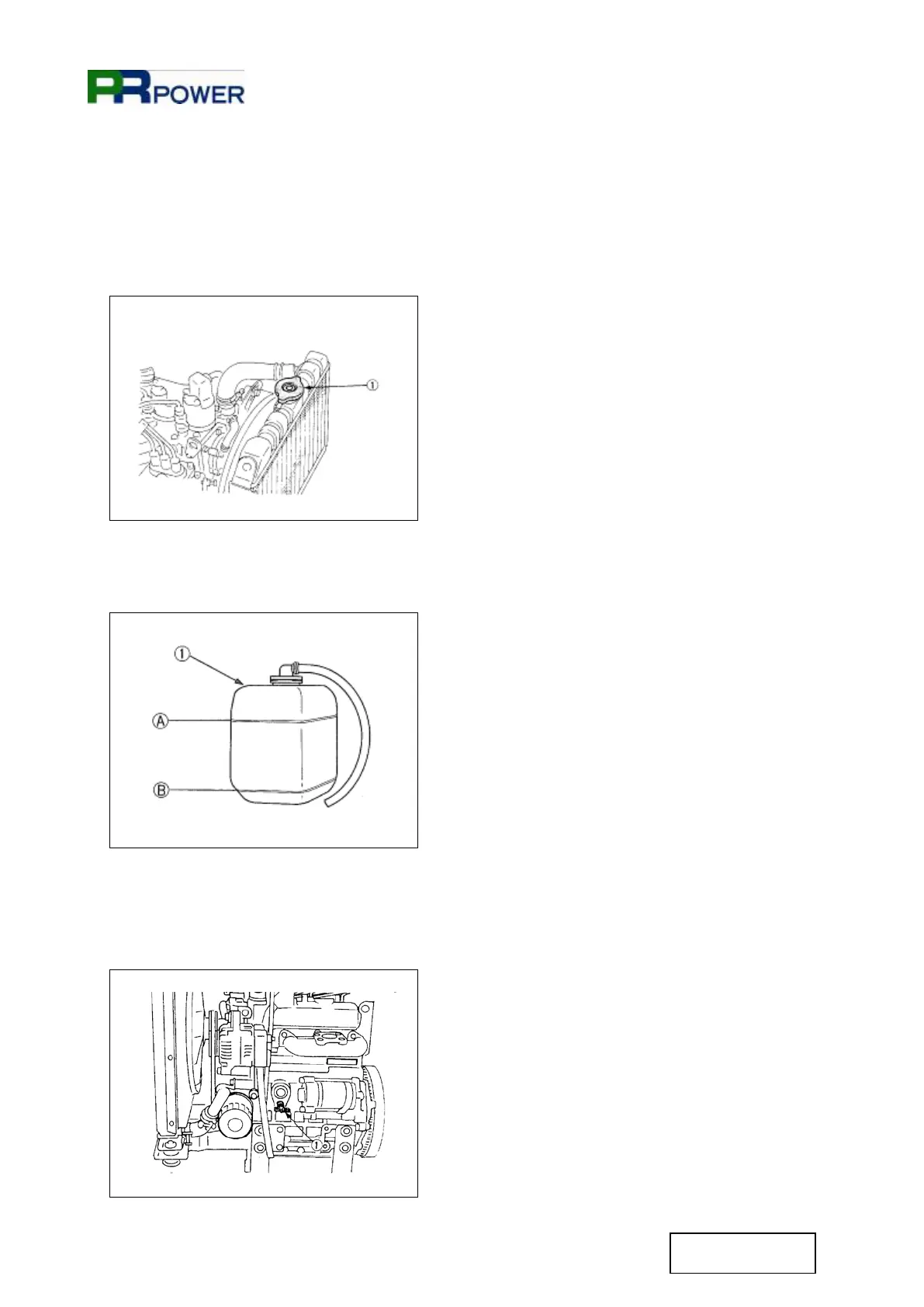

• Remove the radiator cap, and check to see that coolant reaches the supply port.
(1) Radiator pressure cap.
• If the radiator is provided with a reserve tank, check the coolant level of the reserve tank.
When it is between the “FULL“ and “LOW” marks, the coolant will last for one day’s work.
(1)
(A)
(B)
Reserve tank.
Full.
Low.
• When the coolant level drops due to evaporation, add water only up to the full level.
• Check to see that two drain cocks; one is at the crankcase side and the other is at the
lower part of the radiator as figures below.
(1)
(A)
(B)
Reserve tank.
Full.
Low.
