The electrical connections are simplified so as to concur the uncoupling of the command panel for
a check and an eventual maintenance or substitution of damages pieces. It is also possible to
remove and to replace the cruise of the lighting tower. For the electrical connection of the
floodlights we are previewed plastic boxes with degree of protection IP56.
In case of use of the lighting tower in adverse acclimatizes situations, with too much low
temperatures or high, take care to the turn cable and its normal sliding to the inside of the cylinder
because the cable is subject to momentary structural deformation.
13.10 USE OF THE LIGHTING TOWER
Tilt manually the floodlights unscrewing the lever (Fig. 2-A) placed on the support of the floodlight.
Rotate the floodlights in the position you prefer, in function of the type of lighting you want to
obtain, unscrewing the stop nut of the floodlight support. (Fig. 2-B).

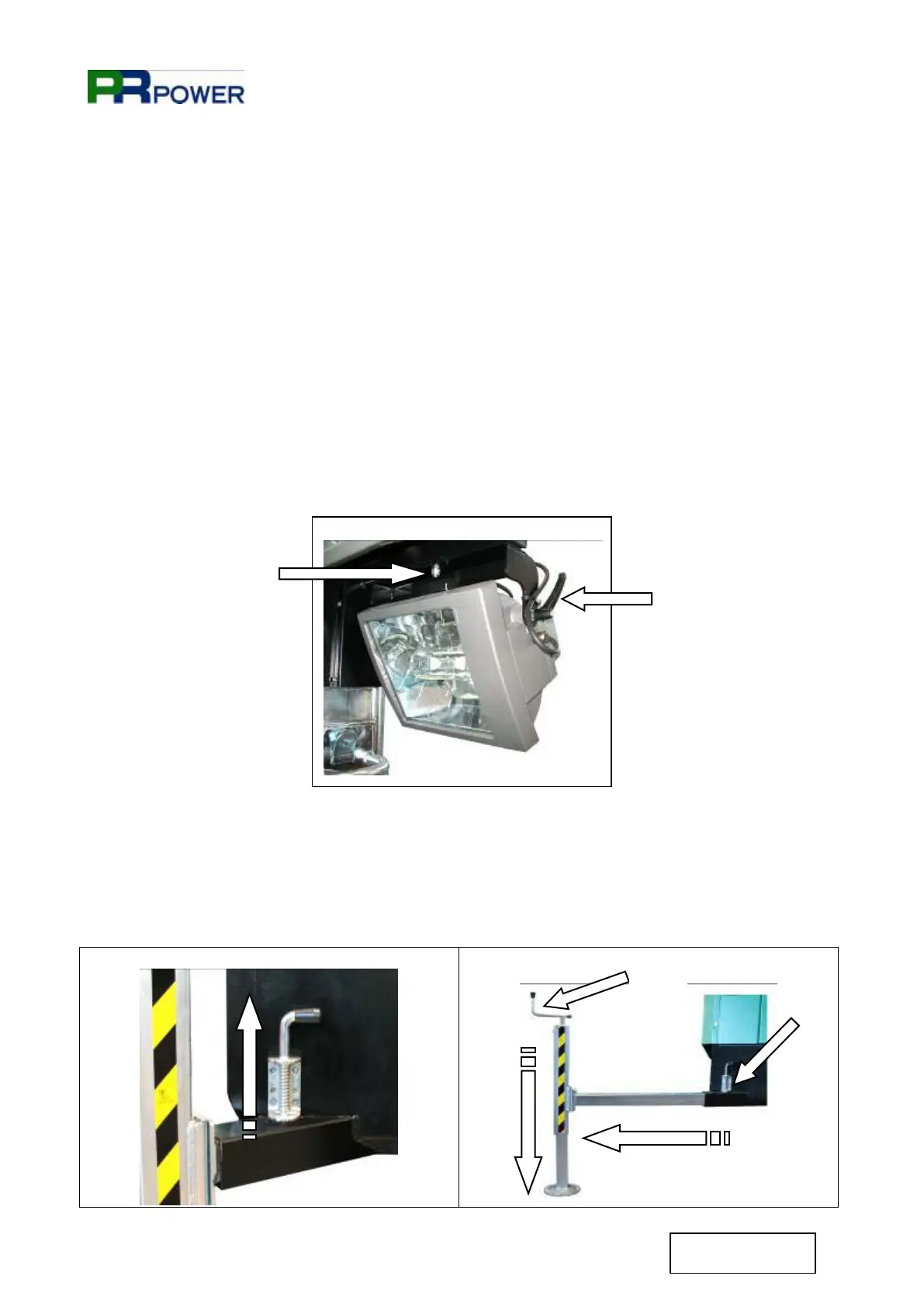

(Fig.2)
Release the pins from their hole (Fig. 3) and then proceed manually to the extraction of stabilizers
until the pins lock the exit of the tubular (Fig. 4); check that the pins go into the respective seats of
blocking of the tubular.
Lower the stabilizers through the handle (Fig. 4-A).
(Fig. 3) (Fig. 4)
2-A
2-B
4-A
