In addition to inspecting the cables and end connections for damage, check the
following:
Make sure that each cable is properly adjusted and tightened at the top of
the weight stack.
Check cable pulleys, end connections, and end fittings. Make sure all
connections are tight, adjusting cable tension as necessary.
Make sure that the cable bolt is threaded at least ⁷₈ inches (22 mm), or a
minimum of six turns into the selector stem, and the locking jam nut is
tight. (Refer to the following figure.)

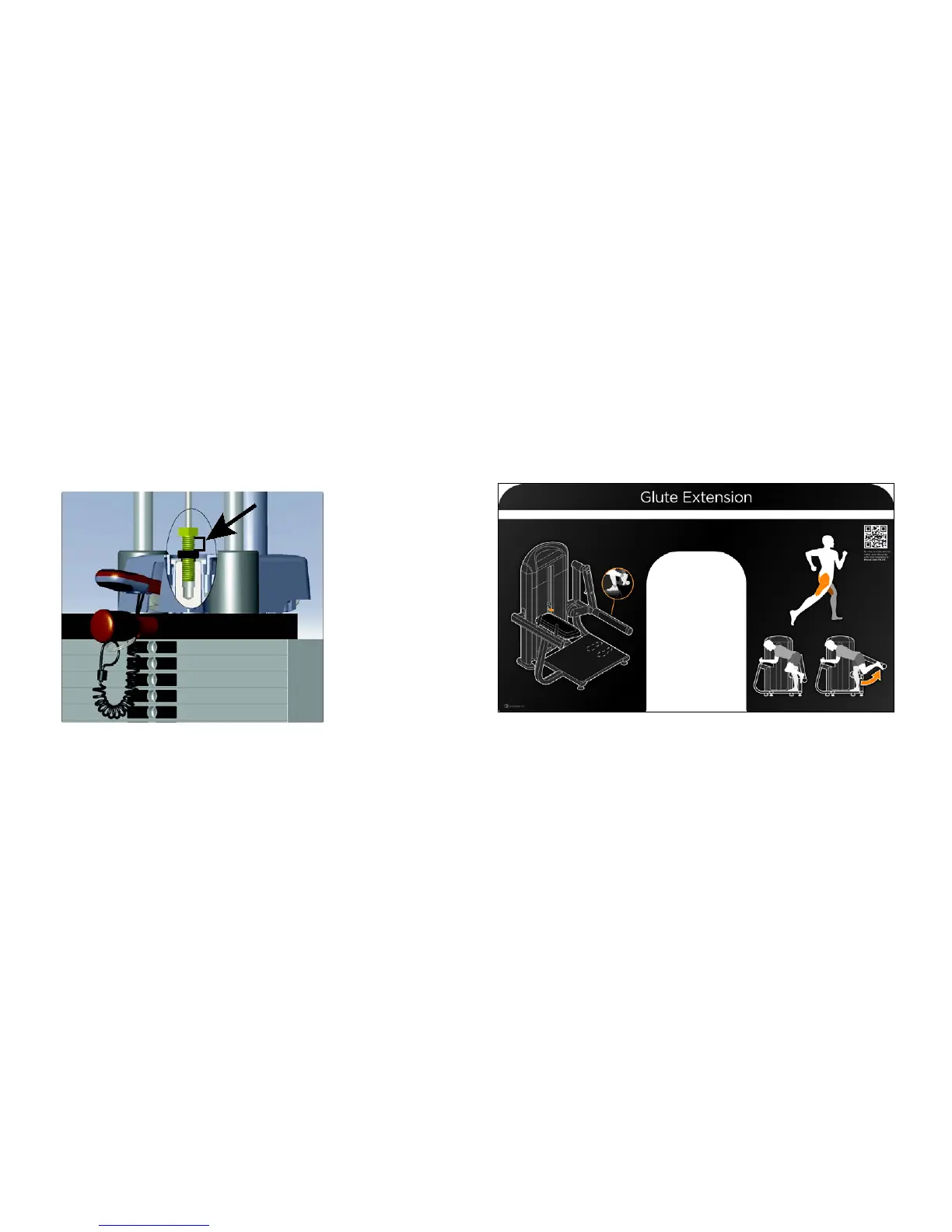

Figure 2: Distance must be 0-7/8 inches (22 mm) or less
Check Warning and Instructional Labels
Inspect warning and instructional labels daily to make sure that all the
information can be clearly read. If any portion is not visible or part of the label
is not adhered properly, replace that label immediately (refer to Obtaining
Service for purchase information).
Clean labels as needed with a mild soap and water solution in a spray bottle,
and dry thoroughly with a soft cloth.
The following figure shows an example of a user instructional label.
Figure 3: Sample user instructional label for the Discovery Selectorized Line
