Removal Instructions

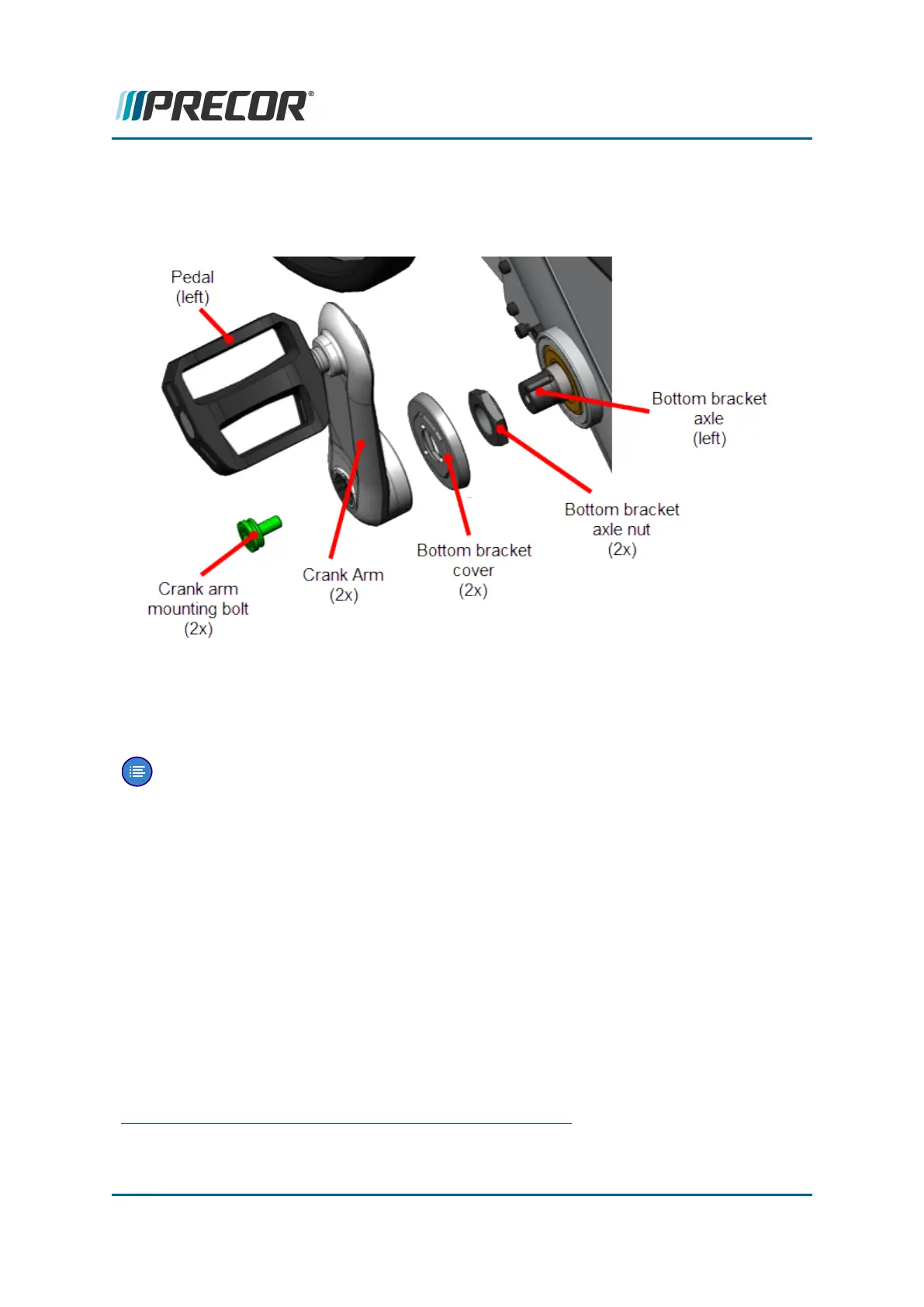

1. Remove the left and right pedals, see "Pedal Replacement" on page121.
2. Remove the left crank arm mounting bolt using an 8 mm hex key.
1. Use a crank puller (recommended Park Tool CCP-222 to pull the crank arm from the
bottom bracket bearing axle and remove.
2. Remove the bottom bracket cover.
Note:Early production bikes may not include the bottom bracket cover, see service
bulletin SB.SBK
1
.20160825 for information.
3. Remove the bottom bracket axle 36 mm nut. Clean the axle nut and the bottom
bracket axle threads. Retain part(s) and/or fastener(s) for installation.
4. Repeat steps to remove the right crank arm.
Installation instructions:
1. Apply a light coat of multipurpose oil to the 36 mm axle nut threads and install onto the
bottom bracket axle. Fully tighten the axle nut.
1
Spinner Indoor Cycle
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 127
5 Replacement Procedures
Crank Arm Replacement
