2.3 Hookup Diagrams

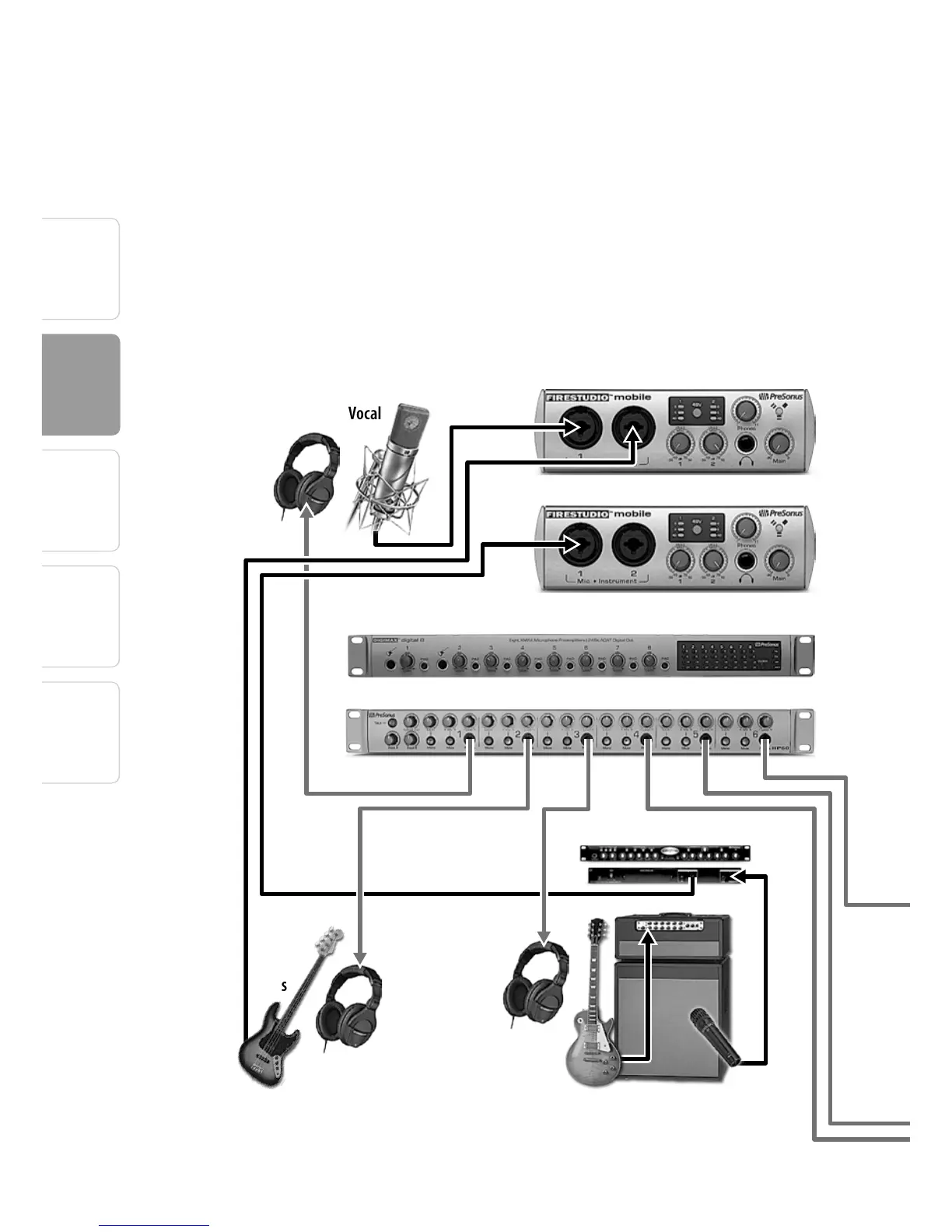

2.3.2 Recording a Full Band with Two FireStudio Mobiles,
External Multichannel Preamp, and Headphone
Distribution Amplifier
Cables and Connectors:
• 2 FireWire cables
• 14 TRS - TRS cables
• 8 XLR (M) - XLR (F) cables
• 2 TS - TS cables
• 1 TRS - XLR (M)
XLR (M) - XLR (F)
XLR (M) - XLR (F) x 6
(or snake)
XLR (M) - XLR (F)
TRS - TRS x 6
TRS - TRS
TRS - TRS
TRS - TRS
TS - TS
TRS - TRS x 2
TRS - TRS
TRS - TRS x 2
TRS - XLR (M)
FW400 FW400
Lead Vocal
Guitar &
Processor
Guitar with Mic’d Cabinet
Bass
Computer with FireWire
Synth or Controller
PreSonus Studio Channel
HP60 Back Panel
Mic’d Drum Kit
DigiMax™ D8
Back Panel
PreSonus HP60 Headphone Mixing System Front Panel
PreSonus DigiMax™ D8 8-Channel Mic Preamplier Front Panel
FireStudio Mobile 1
FireStudio Mobile 2
FireStudio Mobile 1 Back Panel
FireStudio Mobile 2 Back Panel
TS - TS
