PICTOGRAM DESCRIPTION
LDW system initializing during the start-up or tracking not available as no lane markings is
being tracked.
none
If none of the LDW status pictograms appear on the DID status line and the driver has not
pressed the LDW enable/disable switch, this indicates that the system using the FLC-20
forward-looking camera has detected a DTC (diagnostic troubleshooting code) and the
system should be serviced at the earliest opportunity.

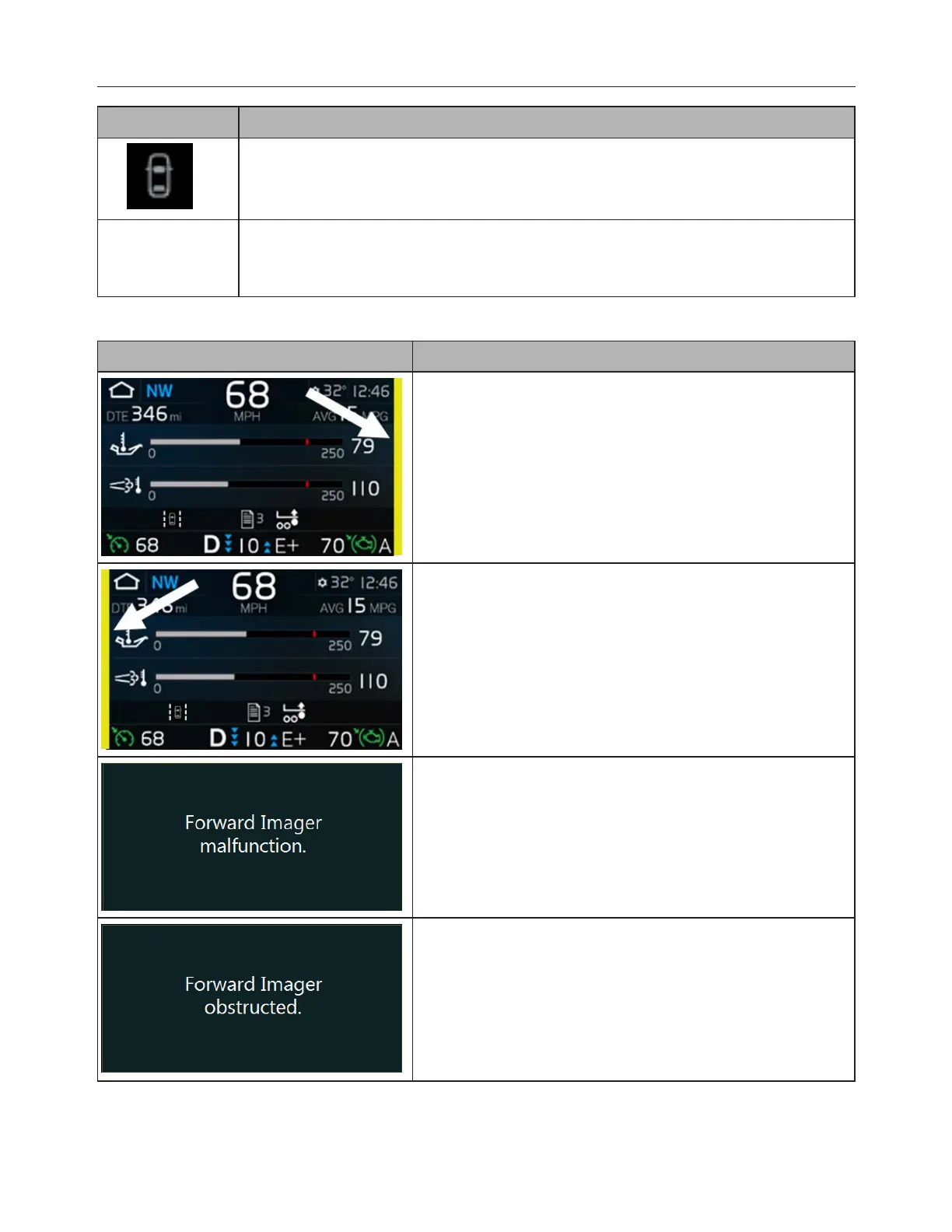

LDW Pop-up Messages Definition
POP-UP MESSAGE DESCRIPTION / AUDIBLE ALARM
The vehicle is about to cross the right lane marker. A yellow
vertical bar appears on the right side of the DID.
Comes with audible warning
The vehicle is about to cross the left lane marker. A yellow
vertical bar appears on the left side of the DID.
Comes with audible warning
Indicates a malfunction of the forward-looking camera. The
LDW system tracking might be disabled or not reliable.
The driver can acknowledge and turn off this popup message.
To do so, press and hold Applications/Beach button.
Indicates a malfunction of the LDW system camera. The LDW
system tracking might be disabled or not reliable.
Stop the vehicle and check if something is obstructing the
camera.
The driver can acknowledge and turn off this popup message.
To do so, press and hold Applications/Beach button.
PA-1652 Operator's Manual H3-45 Coach
4-56 Controls and Instruments
