4-40 Controls and Instruments
PA-1652 Operator's Manual H3-45 Coach
STEERING COLUMN CONTROLS
Many of the most frequently used controls are
conveniently placed on the steering column or the
steering wheel. The direction indicator stalk is
located on the left side of the steering wheel while
the auxiliary brake control stalk and windshield
wipers control stalk are located on the right side
of the steering wheel. Switches for the horn are
located directly on the steering wheel.

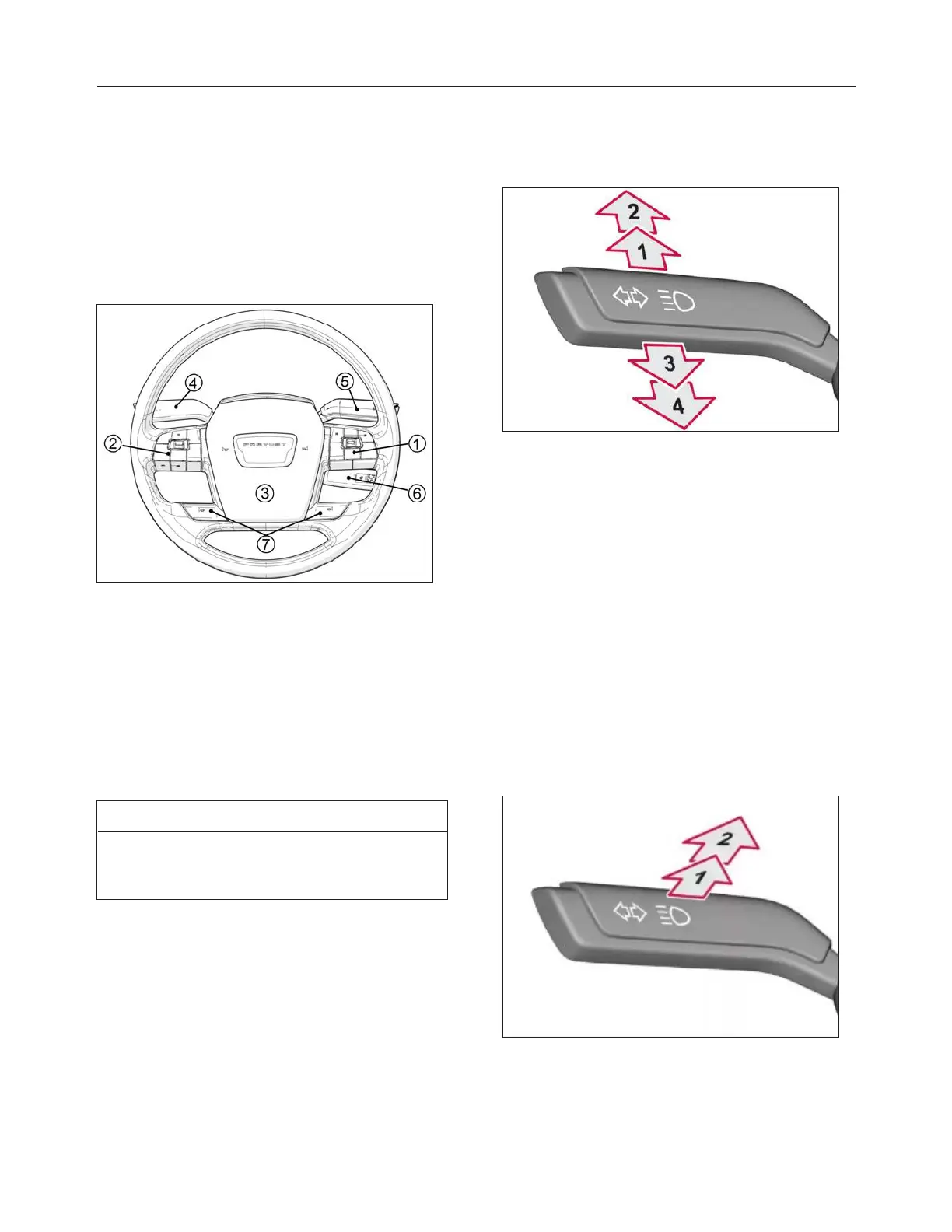

FIGURE 24: STEERING WHEEL
(1) Right-hand keypad
(2) Left-hand keypad
(3) Air horn
(4) Direction indicator and high beam control stalk
(5) Auxiliary brake control stalk
(6) Windshield wipers control stalk
(7) Electric horn (city horn)
NOTE
When the vehicle is stationary, the electric horn
will sound to inform the driver that a fire is
detected in the engine compartment.
DIRECTION INDICATOR AND HIGH BEAM
CONTROL STALK
Direction Indicator
FIGURE 25: DIRECTION INDICATOR
(1) Lane change signal to the right
Move and hold the control stalk
partway to signal a lane change.
The right hand signal will flash until
you release the lever.
(2) Turn signal to the right
(3) Lane change signal to the Left
Move and hold the control stalk
partway to signal a lane change.
The left hand signal will flash until
you release the control stalk.
(4) Turn signal to the Left
High Beam Control
FIGURE 26: HIGH BEAM CONTROL
(1) Hight beam flash
