2-8 Coach Exterior
PA-1652 Operator's Manual H3-45 Coach

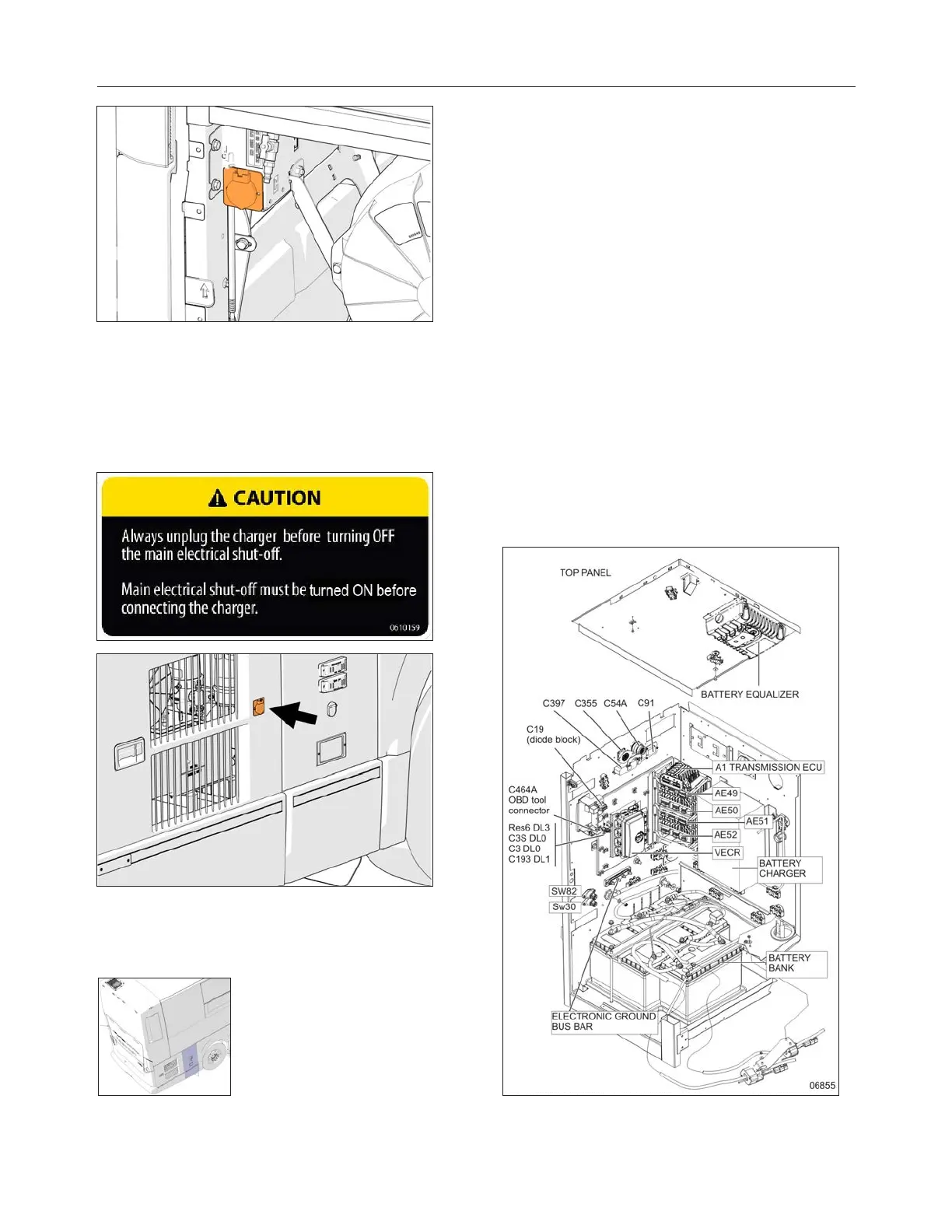

FIGURE 8: ENGINE BLOCK HEATER LOCATED CLOSE
TO THE ENGINE AIR FILTER
BATTERY CHARGER
Another connector is used to connect the battery
charger to a 120 VAC power source.
FIGURE 9: BATTERY CHARGER 120-VOLT CONNECTOR
MAIN POWER COMPARTMENT
To open the main power
compartment door, use the
exterior compartment door
key. The door will pop open.
This compartment is closed off from the engine
compartment and is used to house the batteries
and electrical components. The following items
are located in the main power compartment:
l (4x) 12-volt batteries
l Main circuit breakers (12 & 24 volts)
l Battery charger (optional)
l Vanner battery equalizer
l Rear multiplex modules
l Transmission Electronic Control Module for
Allison transmission
l Rear fuse box (VECR)
l Relays
l Electronic ground stud
FIGURE 10: VIEW OF MAIN POWER COMPARTMENT
(TYPICAL)
