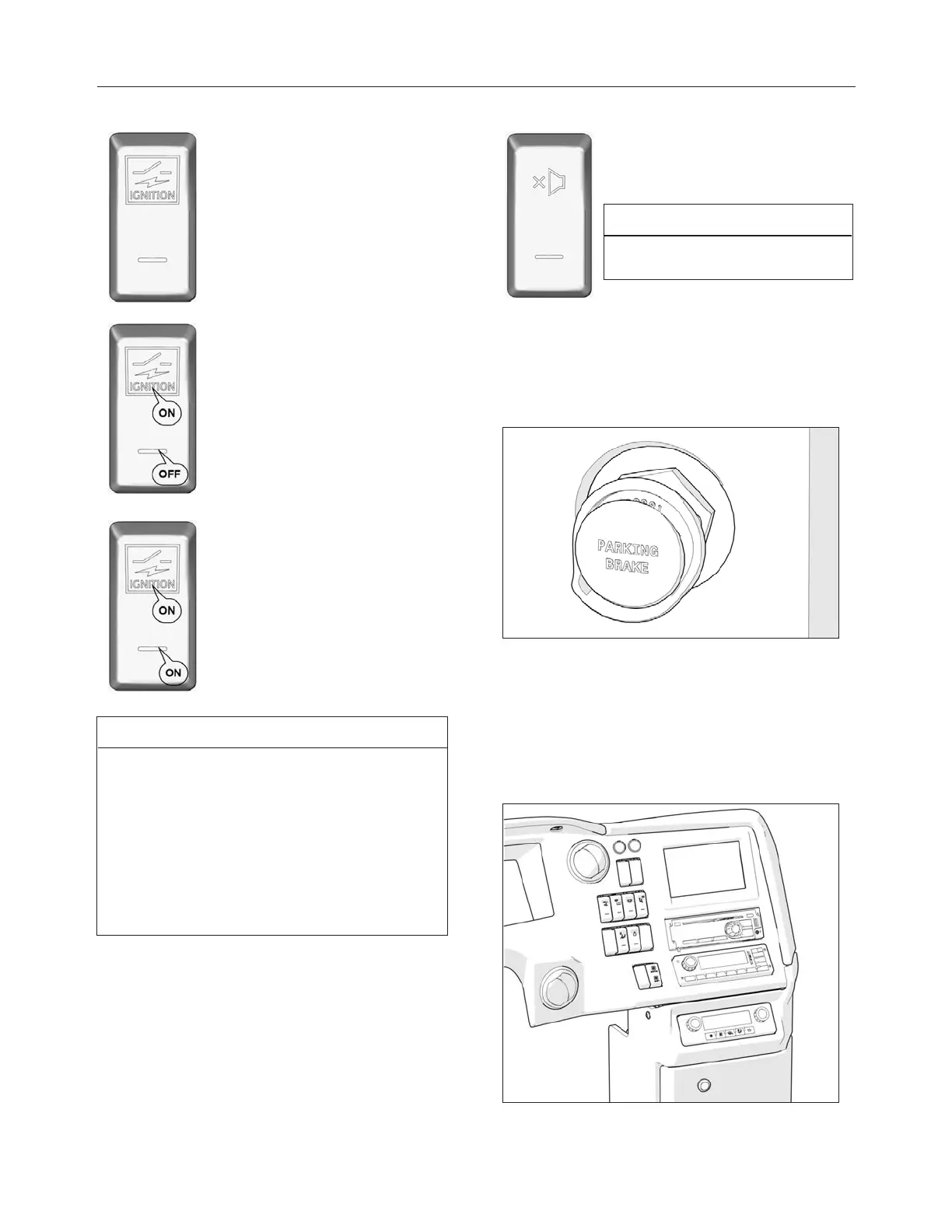

4-12 Controls and Instruments
PA-1652 Operator's Manual H3-45 Coach
Ignition Switch
Press this switch to apply
power to the vehicle.
State: vehicle in sleep mode.
Pictogram OFF and LED
OFF.
State: vehicle in wake up
mode. Pictogram ON and
LED OFF.
The main electrical shut-off
switch is in the ON position
and the ignition switch is
flipped on.
State: power is applied to the
vehicle. Pictogram ON and
LED ON.
NOTE
If ignition switch is turned OFF by mistake
while the vehicle speed is higher than 6 mph
(10km/h), the throttle function will be
interrupted. The power steering will be
maintained, and the transmission will stay in
gear. An alarm in the instrument panel will
sound to warn the driver.
Normal operation will resume as soon as the
ignition switch is set back to ON.
Back-up Alarm Cancel Switch
Use this rocker switch to cancel
the back-up alarm.
NOTE
Normal operation resumes after
leaving reverse gear.
PARKING BRAKE CONTROL KNOB
Pull to apply parking brake.
Push to release parking brake.
FIGURE 12: PARKING BRAKE CONTROL KNOB
R.H. DASHBOARD PANEL
The driver radio, the infotaiment display, controls
for passenger entertainment are grouped on the
R.H. dashboard panel. The HVAC control module
, miscellaneous control switches and air vents are
also located on this side of the dashboard .
FIGURE 13: R.H. DASHBOARD PANEL
