Controls and Instruments 4-5
PA-1652 Operator's Manual H3-45 Coach

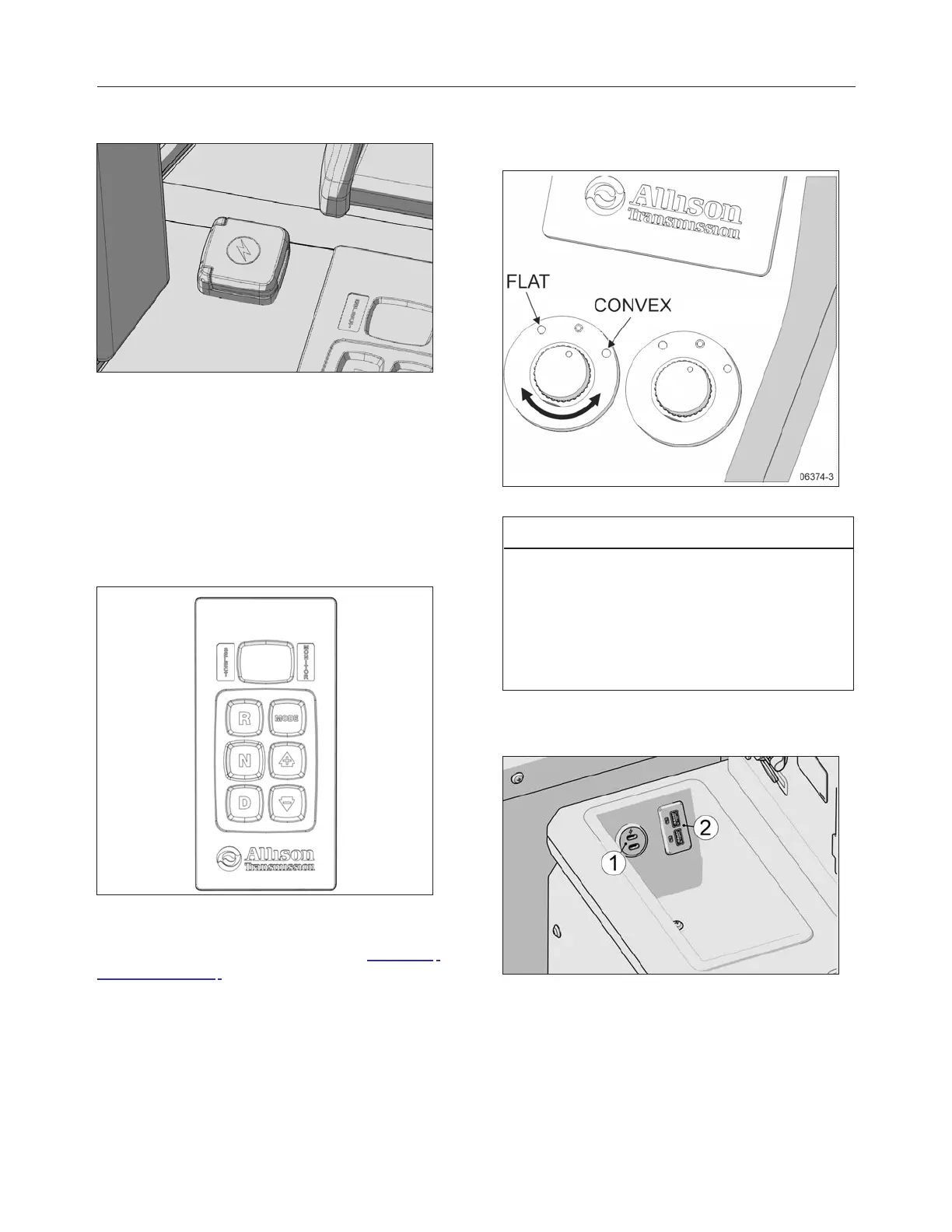

12V POWER OUTLET
FIGURE 5: 12V POWER OUTLET
A 12-volt DC power outlet is located on the lateral
control panel.
This socket can be used to power small 12-volt
DC appliances. The maximum power
consumption allowed for appliances plugged in
this socket is 180 watts.
TRANSMISSION CONTROL PAD
FIGURE 6: TRANSMISSION CONTROL PAD
The Allison transmission control pad is located on
the lateral control panel. Refer to ALLISON
TRANSMISSION in this chapter for operating
instructions and more information.
MIRROR CONTROLS
Turn the pointer knob counterclockwise for flat
mirror adjustment and clockwise for convex
mirror adjustment, then use the pointer knob as a
joystick to adjust the selected mirror’s viewing
angle. Adjust the right outside mirror similarly but
by using the right side control.
FIGURE 7: MIRROR CONTROLS
NOTE
If the mirror assemblies on your vehicle do not
include convex mirrors, only one mirror control
knob will be installed for both mirrors. To
operate, turn pointer counterclockwise for L.H.
mirror adjustment and clockwise for R.H. mirror
adjustment, then use the joystick control to
adjust the selected mirror’s viewing angle.
LATERAL UTILITY COMPARTMENT
FIGURE 8: UTILITY COMPARTMENT
(1) Dual-port universal USB-C charger. Charging
current capacity for each of the two outlets, 3A @
5V.
(2) Dual-port USB-A smart charger . Output 2.4A
@ 5V.
