To lock the entrance door from the inside, slide
the lock lever to the left.

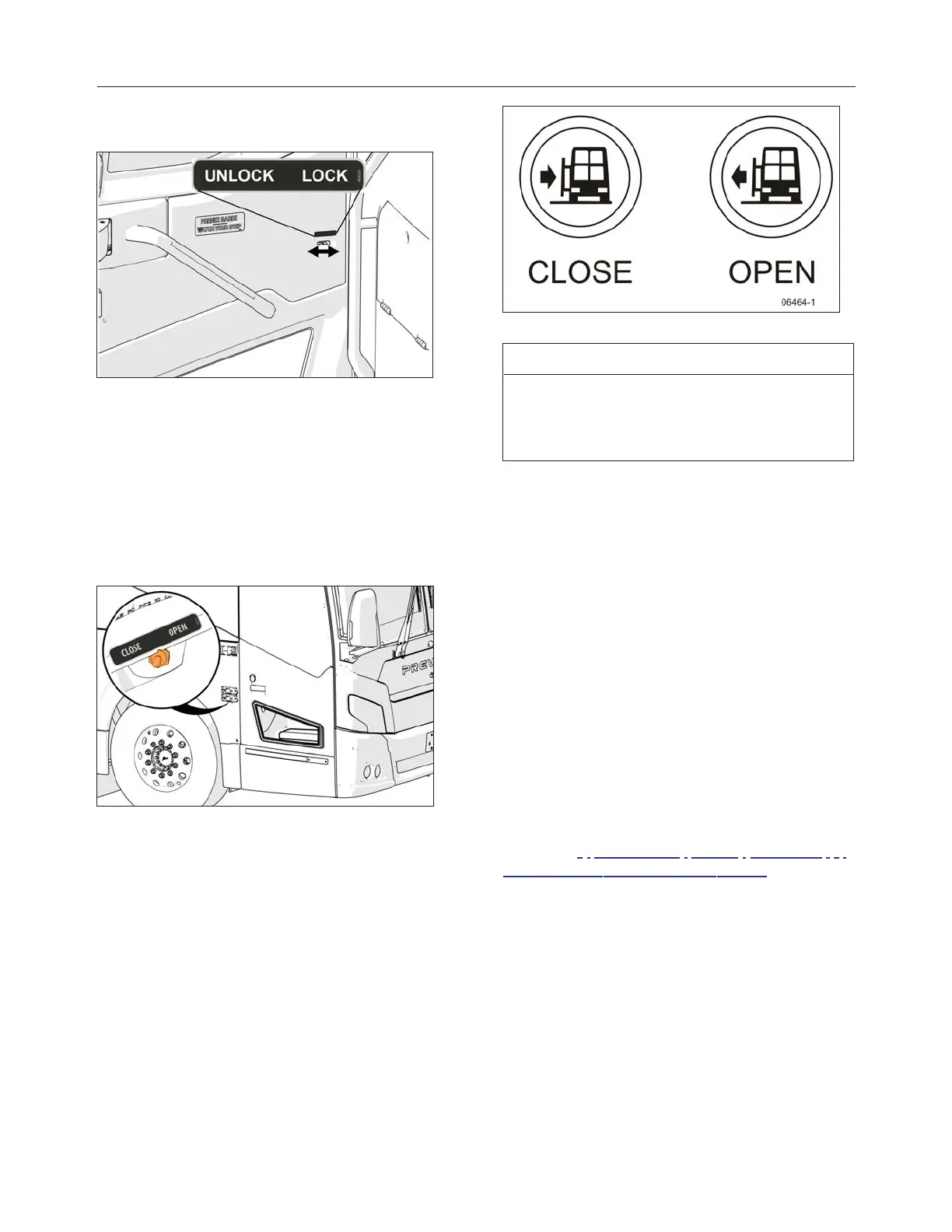

FIGURE 16: INSIDE LOCKING DEVICES
OPENING THE ENTRANCE DOOR FROM
OUTSIDE
The opening and closing of the door may be
pneumatically controlled from the outside using
the 3- position switch located on the door L.H.
side. Open the door by pushing the switch
forward, close by pushing the switch rearward.
FIGURE 17: ENTRANCE DOOR EXTERIOR SWITCH
OPENING THE ENTRANCE DOOR FROM
INSIDE
From the inside, open the door by pressing the
door opening switch (L.H. button) on the R.H.
dashboard panel. Close by pressing the door
closing switch (R.H. button) on the dashboard.
FIGURE 18: DASHBOARD SWITCHES
NOTE
If the interior lever is used to exit the coach and
the key is not used to unlock the door, it will lock
again upon closing. Remember to keep the key
with you upon exiting.
DOOR OPERATION LOGIC
If the switch is held in position until the door is
fully open or closed, the system holds pressure in
the door cylinder, locking the door in that position.
The door can be open to any position by
releasing the exterior switch or inside door control
buttons when the desired position is attained.
However, the door is not locked in any position
other than fully open or fully closed. The door can
then be open or closed further by pushing or
pulling on the door.
When the door is almost shut, a mechanism will
finish the closing of the door. This works even
when the door is closed manually.
EMERGENCY DOOR OPENING
Refer to " ENTRANCE DOOR OPENING -
EMERGENCY SITUATION" on page3 in Section
7, Safety Features and Equipment.
RECLINING BUMPER COMPARTMENT
The front bumper can be tilted downward to give
access to the bumper compartment. Pull the
release handle located inside the front service
compartment to unlock. Tilt down the entire
bumper assembly to access the compartment.
Push the bumper back up firmly in place to lock in
position.
