3-8 Coach Interior
PA-1652 Operator's Manual H3-45 Coach
NOTE
Both tray models as well as the tray installed onto
each modesty panel are equipped with tumbler
holders.
TABLES
Two removable tables are provided as standard
equipment in the passenger swivel seat
configuration. The tables are stored in the
overhead storage compartments in separate
stowage bags.
To install the table, hold it at 45
o
(degrees) to the
side wall. Insert the spring- loaded pin then the
locking pin into the hinge. Push on the locking
clamp to release the leg. Unfold the leg until the
clamp locks it in position.

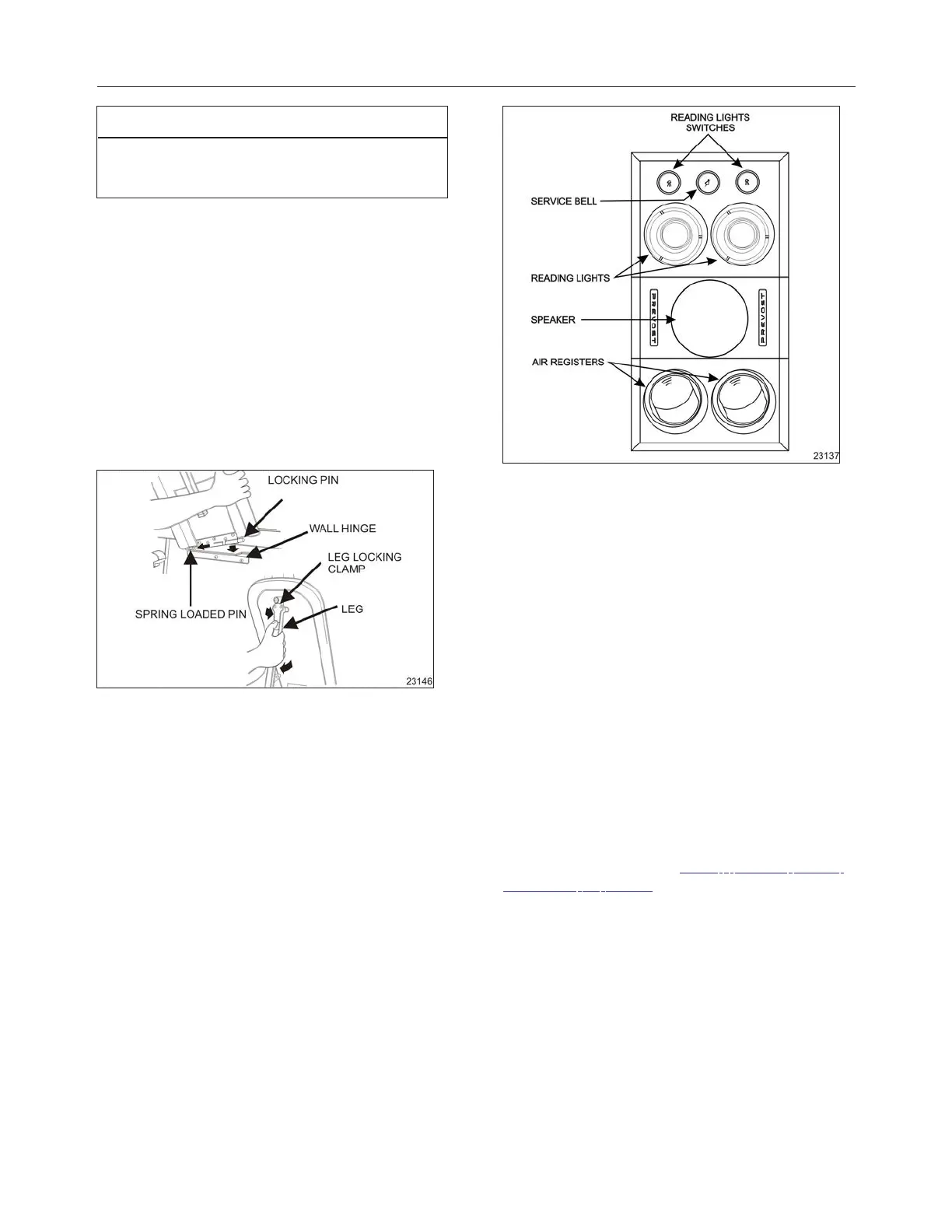

FIGURE 13: REMOVABLE TABLE INSTALLATION
OVERHEAD CONSOLE
An overhead console is installed above each row
of twin seats. Amenities include reading lights, air
vents and an optional service bell.
FIGURE 14: OVERHEAD CONSOLE
ADJUSTABLE AIR REGISTERS
Manually adjustable registers located on the
overhead console provide air flow to the
passengers. Air flow can be directed, passengers
can orient individual registers by rotating the
nozzle. To adjust air flow, passengers must open
or close the flaps. Activation of the fans is done
by depressing a rocker switch on the dashboard.
Refer to Controls & Instruments.
SERVICE CHIME
Pressing the service button on the overhead
console will illuminate the button providing a
visual cue for service personnel and, if activated,
will sound a chime in the driver’s area. The chime
system is activated by a rocker switch located on
the dashboard. Refer to "Stop / Service Chime
(Optional)" on page1 in Controls & Instruments
chapter. Passengers may also use the chime
system to request a stop for disembarking. Press
the service button a second time to cancel the
service request. To adjust the chime volume
level, refer to “Controls & Instruments” under
Audiovisual Controller.
READING LIGHTS
Reading lights are mounted underneath the
overhead storage compartments. Depressing a
rocker switch located on the dashboard (refer to
