3-6 Coach Interior
PA-1652 Operator's Manual H3-45 Coach
PASSENGER SEATS
Passenger seats may be equipped with grip
handles, newspaper holders, trays, cup holders
and footrests.

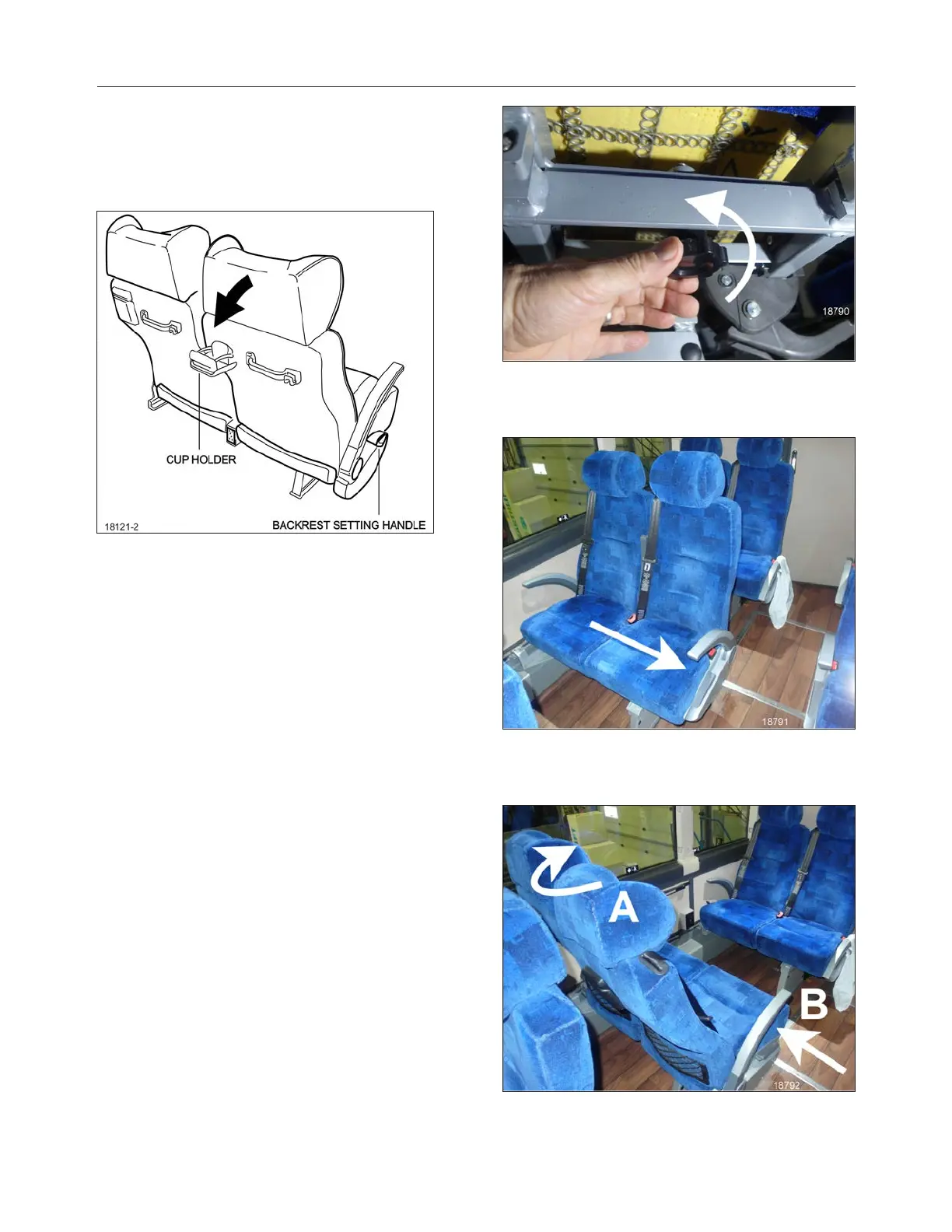

FIGURE 8: PASSENGER SEAT
All seats are track-mounted so that the seating
configuration can be changed. Each set is
mounted on rectangular aluminum bases to make
cleaning between the base and side wall easier.
Passenger seat backrests can be tilted by using
the push-button located on the base of the seat.
Depress and hold push- button, then adjust
backrest to the desired angle. Release the push-
button to lock backrest in position.
A folding armrest is installed on the aisle side of
the passenger. Another folding armrest is located
between the two seats and can be raised for
passenger convenience. A fixed armrest is
installed on the window side of the seat.
SWIVEL SEATS
The coach may be equipped with two sets of
swivel seats to allow installation of card tables.
The swivel seat can be rotated for passenger
privacy. Follow this procedure for seat rotation:
1. Loosen completely the threaded stud knob
under the seat on the aisle side.
FIGURE 9: LOOSEN THE KNOB
2. Pull the seat toward the aisle to unlock the
rotation.
FIGURE 10: PULL TO UNLOCK THE ROTATATION
3. Rotate the seats until it stops (A) and push
back toward the window to lock rotation (B).
FIGURE 11: FINAL POSITION
