4-14 Controls and Instruments
PA-1652 Operator's Manual H3-45 Coach

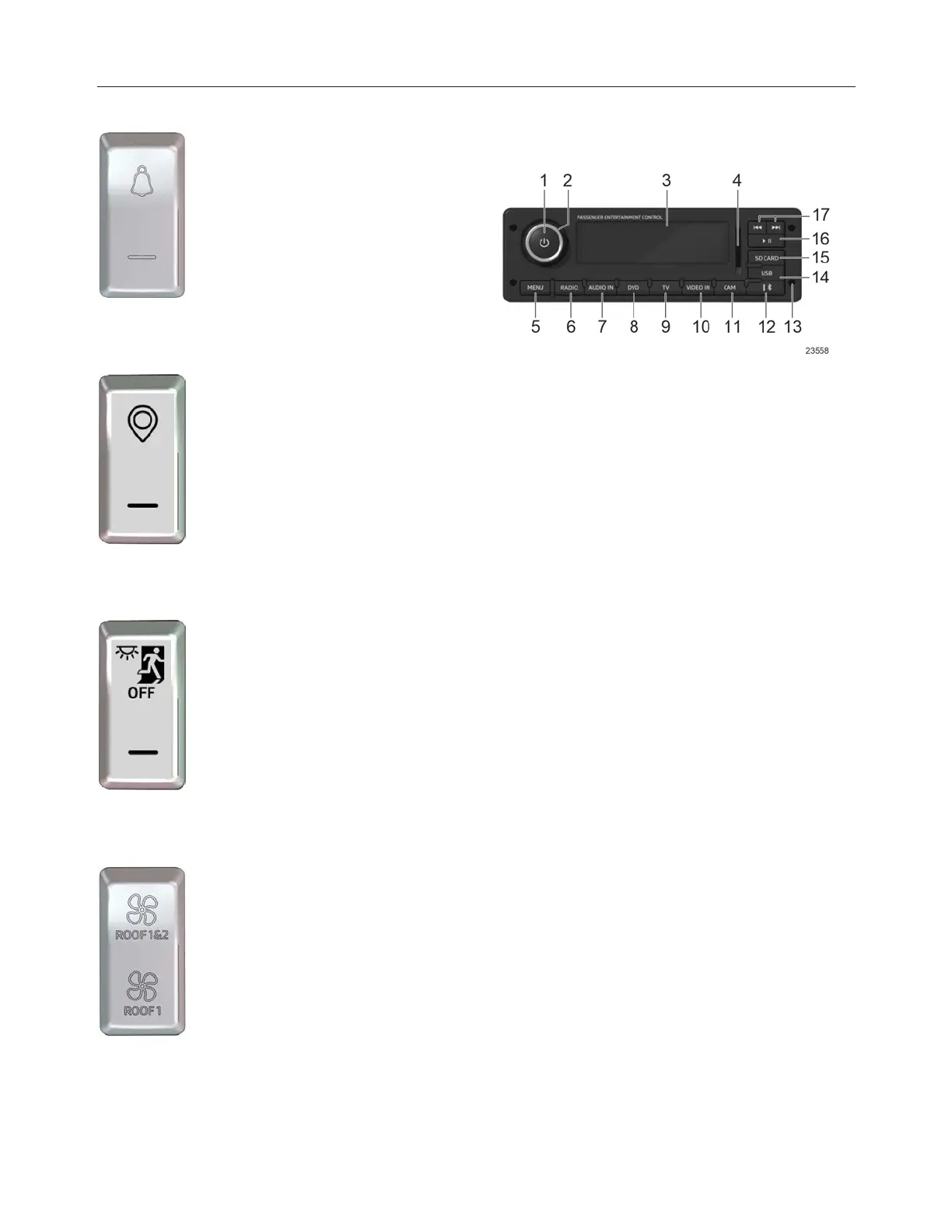

Stop / Service Chime (Optional)
Press this switch to enable the
stop/service chime. Even when the
chime circuit is disabled, the
buttons in the overhead panels will
illuminate if depressed by the
passengers.
Destination Sign (Optional)
Press this rocker switch to
illuminate the destination sign.
Emergency Lighting System
Use this switch to reset the
Emergency Lighting System once it
was triggered either by a real
accident, by a big hit of the vehicle
which led to a false trigger of the
system or either due to a test of the
system.
Emergency Escape Hatch Fan Activation
Press this switch to activate the fan
on one or both emergency escape
hatches.
Roof 1 activates the rear
emergency escape hatch fan.
AUDIO-VIDEO SELECTOR FOR THE
PASSENGER’S AREA
The VSS-06 Video and Sound Selector enables
the driver to select audio, audio/video and video
sources with settings of volume level, bass,
treble, loudness for the passenger’s area only.
The DVD player, media player, microphones and
auxiliary audio or video sources are controlled
with this unit.
1) POWER
Turns on/off the unit
2) VOLUME KNOB
Increases or decreases the sound
output level. Changes the selected
setting.
3) FRONT DISPLAY
Shows information about the
operational status of the unit.
4) SD MEMORY CARD SLOT
5) MENU
a. Press MENU to enter menu.
b. In menu, rotate VOLUME knob or
short press ►►| or |◄◄ to reach the
appropriate function.
c. Short press POWER button or ►|| to
select the function.
d. Short press on any program source
button will exit menu.
6) RADIO program source
Selects the dashboard radio as
current audio source for the
passenger’s area.
