Coach Exterior 2-7
PA-1652 Operator's Manual H3-45 Coach

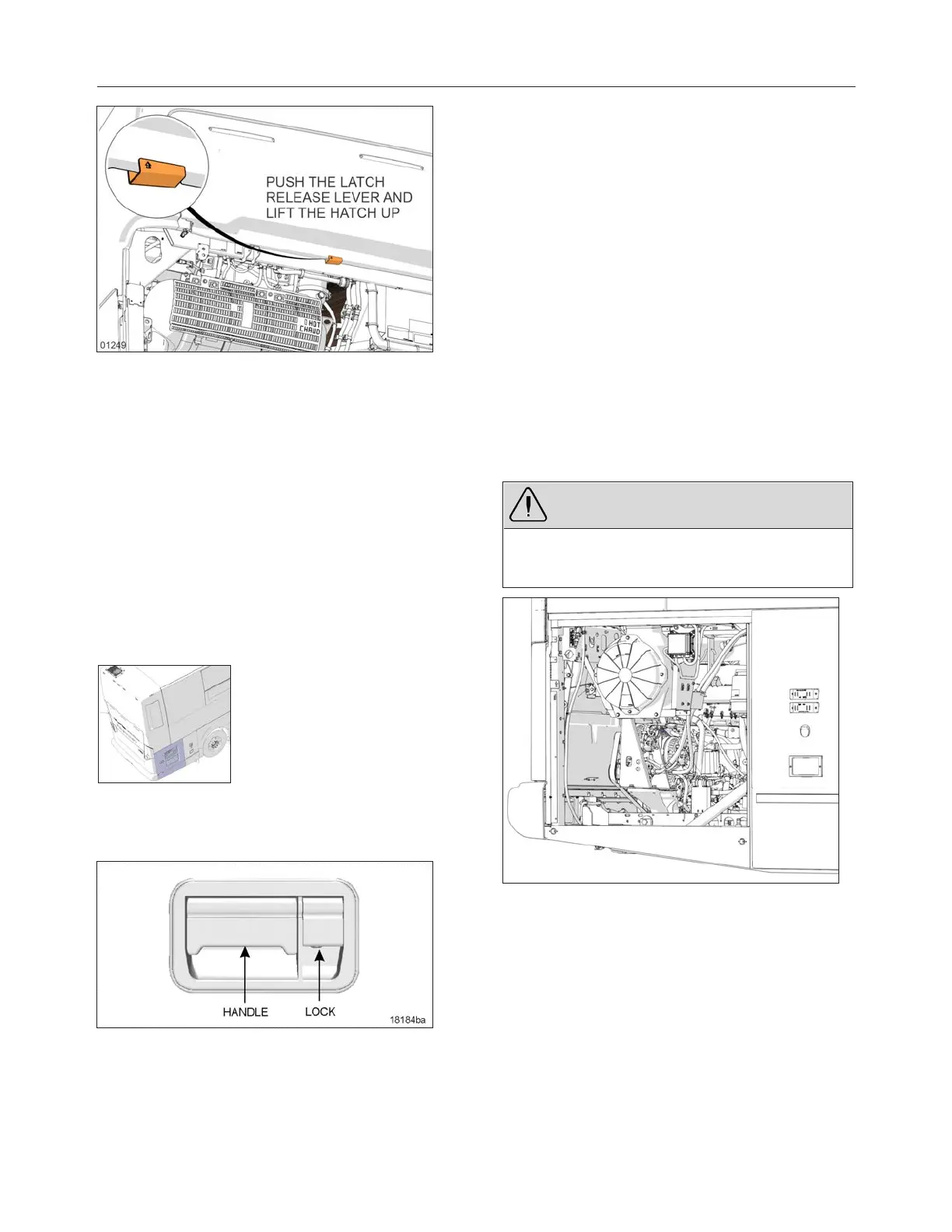

FIGURE 5: EXHAUST AFTERTREATEMENT SYSTEM
ACCESS HATCH
BACK-UP CAMERA
An optional back-up camera is available which
provides the driver with visual assistance when
backing-up. The back-up camera is mounted in a
housing with a retractable cover. For additional
information, refer to Controls and Instruments
and Care and maintenance chapters.
ENGINE COMPARTMENT CURBSIDE
DOOR
Lock this door using the
exterior compartment key.
To open, pull up the door
handle to release the latch
and then pull the door open.
The curbside door also has a safety catch to
prevent it from closing inadvertently. Release the
catch before attempting to close.
FIGURE 6: DOOR HANDLE
The engine compartment curbside door provides
access to the following (if equipped):
l Engine compartment rear door release lever
l Davco Fuel Pro filtration system (option)
l Primary & secondary air system fill valve
l Power steering fluid tank
l Booster block terminals
l Wet air tank drain cock
l Lavatory waste water tank access cap
l Engine air filter
l Battery charger 120 volts connector
l Engine block heater 120 volts connector
WARNING
Unless otherwise stated, do not run the engine
when the engine compartment curbside door is
open.
FIGURE 7: ENGINE COMPARTMENT CURB SIDE
120-VOLT CONNECTORS
ENGINE BLOCK HEATER
This connector is used with a 120 volts supply
and is connected to the optional engine block
heater. Refer to Starting and Stopping
Procedures chapter.
