Coach Interior 3-3
PA-1652 Operator's Manual H3-45 Coach

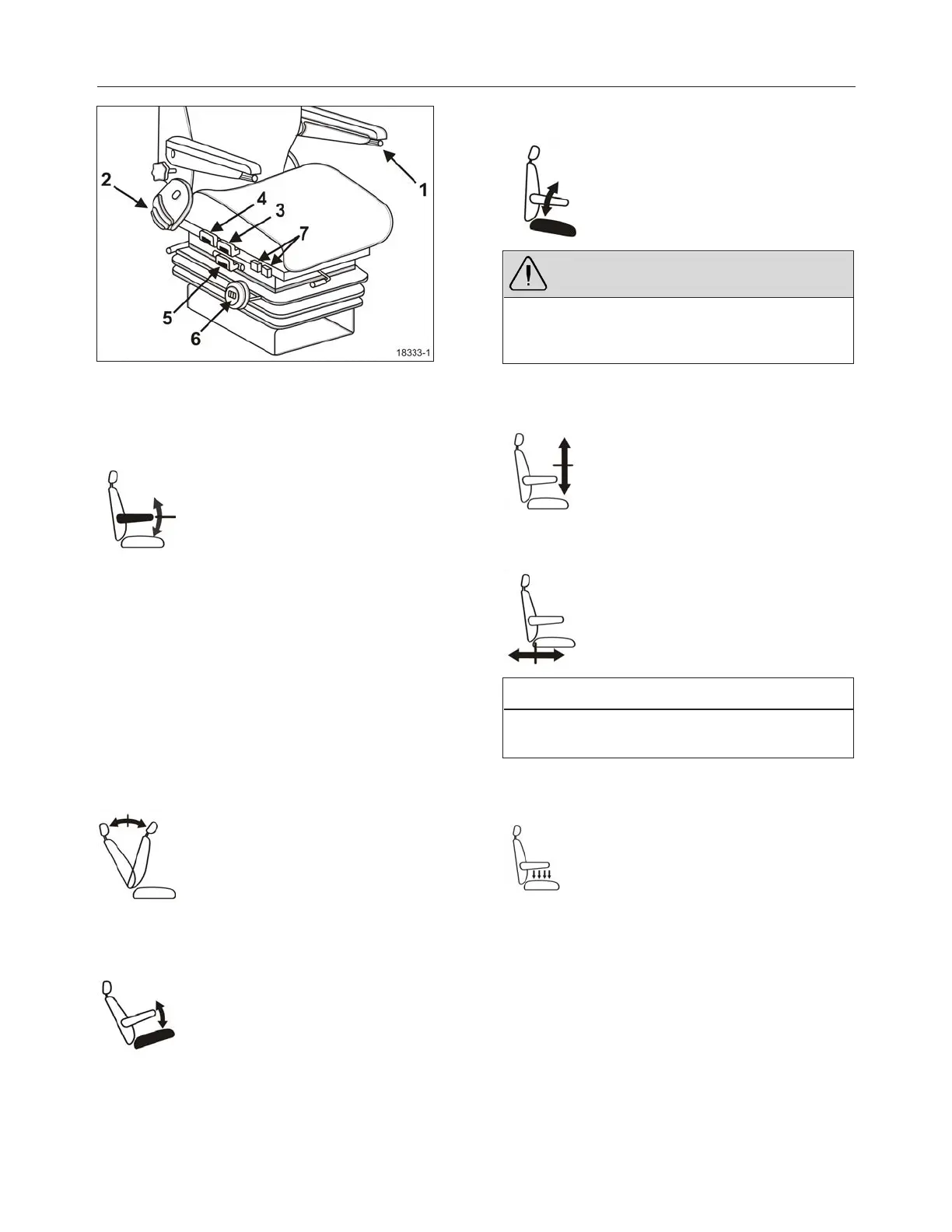

FIGURE 3: DRIVER’S SEAT ADJUSTMENT
(MECHANICAL)
Armrest
The driver’s seat can be equipped
with two folding armrests.
To lower the armrest:
l Turn control knob #1 (refer to
figure: Driver’s seat
adjustment (mechanical))
counter- clockwise without
applying pressure on the
armrest
l Push the armrest down.
l Repeat procedure until
desired position is reached.
Backrest
Lift lever #2 then adjust backrest to
the desired angle.
Tilt (front)
To lower or raise the seat's front
section, pull handle #3 up and push
or pull the seat cushion.
Tilt (rear)
To lower or raise the seat's rear
section, pull handle #4 up and push
or pull the seat cushion.
WARNING
To avoid pinching the fingers between buckle
and controls, lower safety belt buckle before
adjusting seat height
Up and Down
Pull both handles (3 and 4) up to
adjust height of the seat.
Fore and Aft
To adjust distance between driver
and dashboard, pull handle #5 up
and slide the seat forward or
backward.
NOTE
Fore-and-aft seat adjustment control may also
be located at the front of the seat.
Suspension
For maximum mechanical
suspension performance, rotate
handwheel #6 until your body weight
(in pounds) is shown on the
indicator.
The seat suspension resistance can be changed
to suit the driver. Turn handwheel clockwise to
increase suspension resistance and counter-
clockwise to decrease resistance.
