Primedic DefiMonitor XD - Page 97

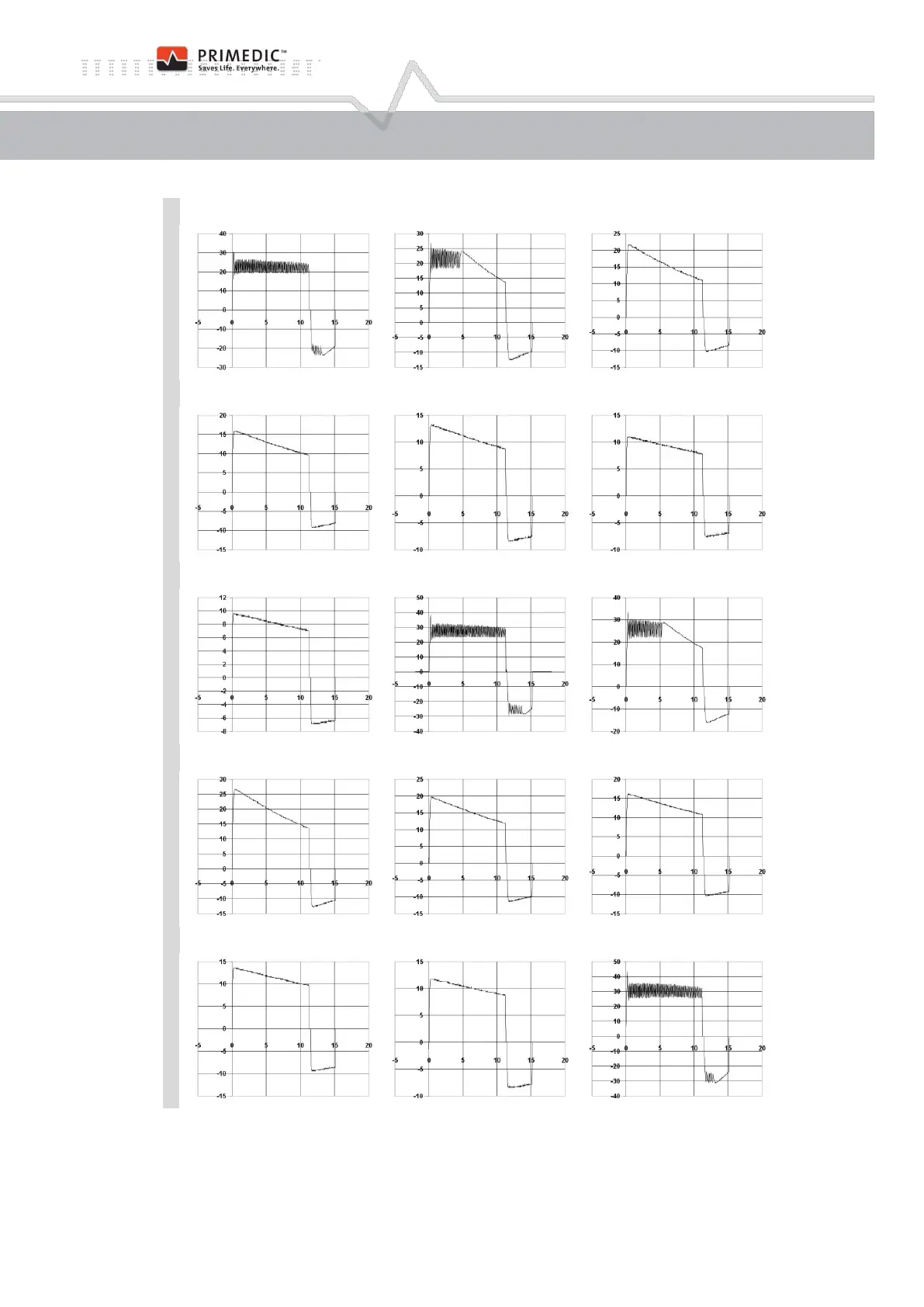

Depiction of the current time function
METRAX GmbH
DefiMonitor XD 21324 / GB / K05
97 / 116
I / A
200 Joule @ 25 Ohm
200 Joule @ 50 Ohm
200 Joule @ 75 Ohm
I / A
200 Joule @ 100 Ohm
200 Joule @ 125 Ohm
200 Joule @ 150 Ohm
I / A
200 Joule @ 175 Ohm
300 Joule @ 25 Ohm
300 Joule @ 50 Ohm
I / A
300 Joule @ 75 Ohm
300 Joule @ 100 Ohm
300 Joule @ 125 Ohm
I / A
300 Joule @ 150 Ohm
300 Joule @ 175 Ohm
360 Joule @ 25 Ohm
