Primedic DefiMonitor XD - Page 99

Depiction of the current time function
METRAX GmbH
DefiMonitor XD 21324 / GB / K05
99 / 116

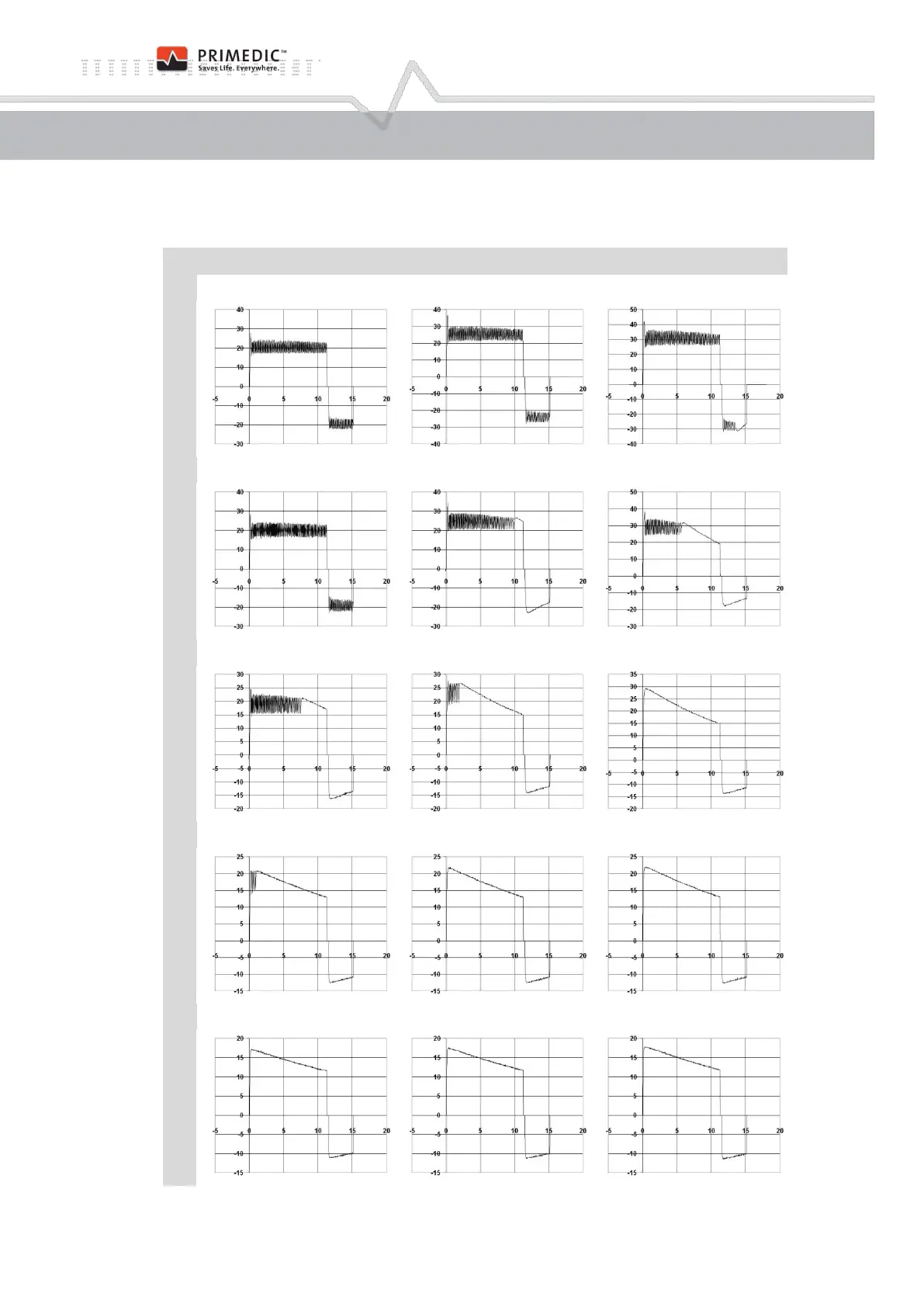

The following diagrams show the graphs for the defibrillation pulse in AUTO mode, displayed
depending on the load resistance.
Time / ms
Time / ms
Time / ms
25 Ohm
I / A
1. Shock
2. Shock
3. Shock
50 Ohm
I / A
1. Shock
2. Shock
3. Shock
75 Ohm
I / A
1. Shock
2. Shock
3. Shock
100 Ohm
I / A
1. Shock
2. Shock
3. Shock
125 Ohm
I / A
1. Shock
2. Shock
3. Shock
