13. Make sure the hydraulic hoses are correctly routed.
14. Check the hydraulic hoses and bolt fittings for leaks; investigate any oil leak immediately.
Installing and stowing the side cutters
The side cutters are to be installed as follows:

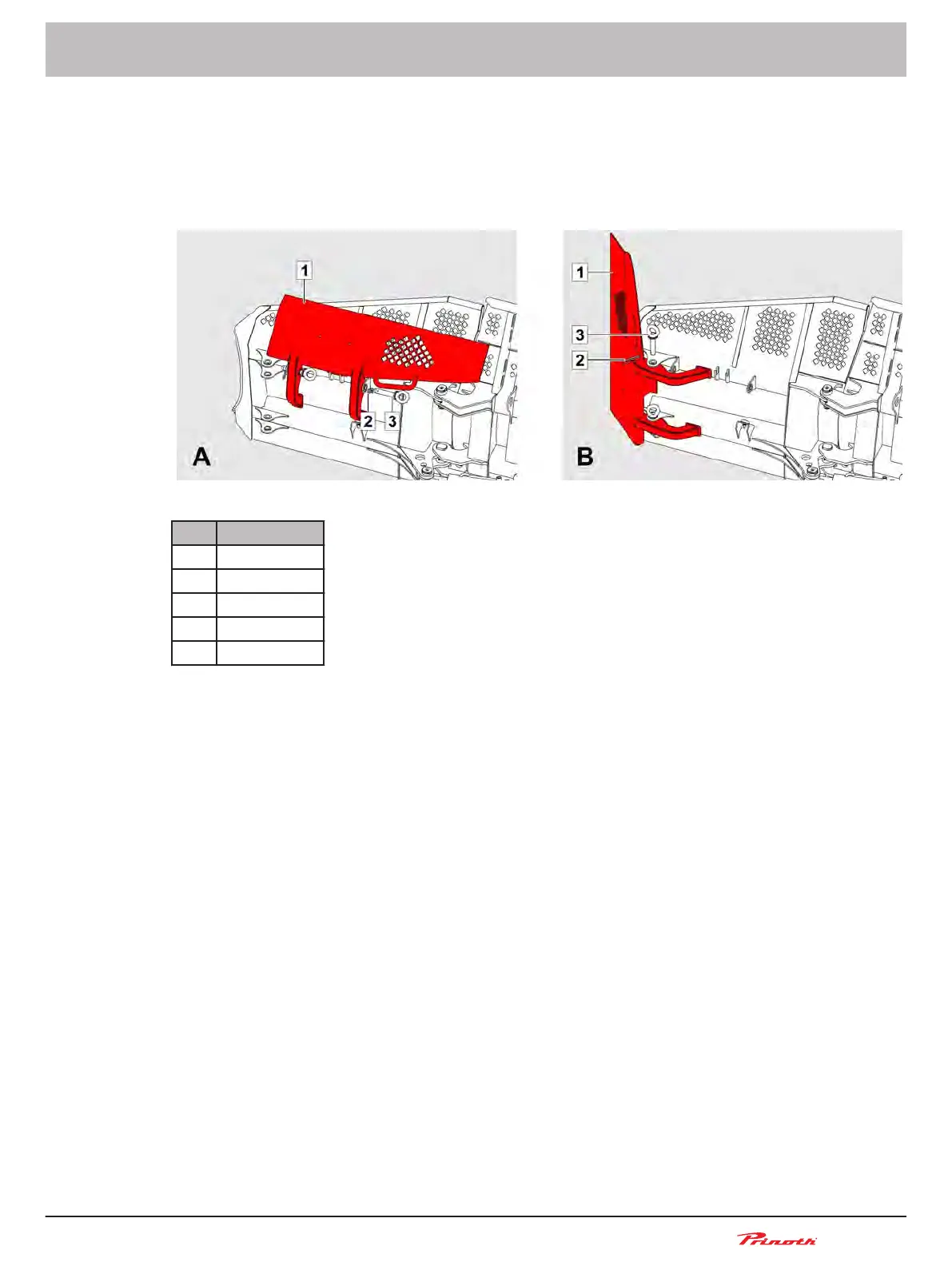

Figure 79: Park blade with side cutter
Pos. Name
1 Side cutter
2 Locking pin
3 Bolt
A Stow position
B Work position
1. Lower the front blade to the ground and turn off the engine.
2. Remove the locking pins (2) from the bolts (3).
3. Hold the side cutter (1) and remove the bolts (3) locking the side cutter to the brackets of the
stow position (A).
4. Position the side cutter vertically at the extremity of the blade wing in the brackets of the work-
ing position (B).
5. Insert the bolts (3) in the brackets. Secure with the locking pins (2).
6. Install the other cutter the same way.
