Connect hydraulic lines
NOTICE
Risk of damage to the hydraulic system
When
connecting hydraulic lines, always connect the drain line first. When disconnecting the hydraul-
ic lines, always disconnect the drain line last.
Introducing even the smallest dirt particles or oil impurities while fitting attachments to the front or
rear can cause damage to the hydraulic system.
► Attachment mounted: store the protective caps in the driver's cab's tool compartment.
► Attachment not mounted: cover the quick-connect couplings with clean protective caps.

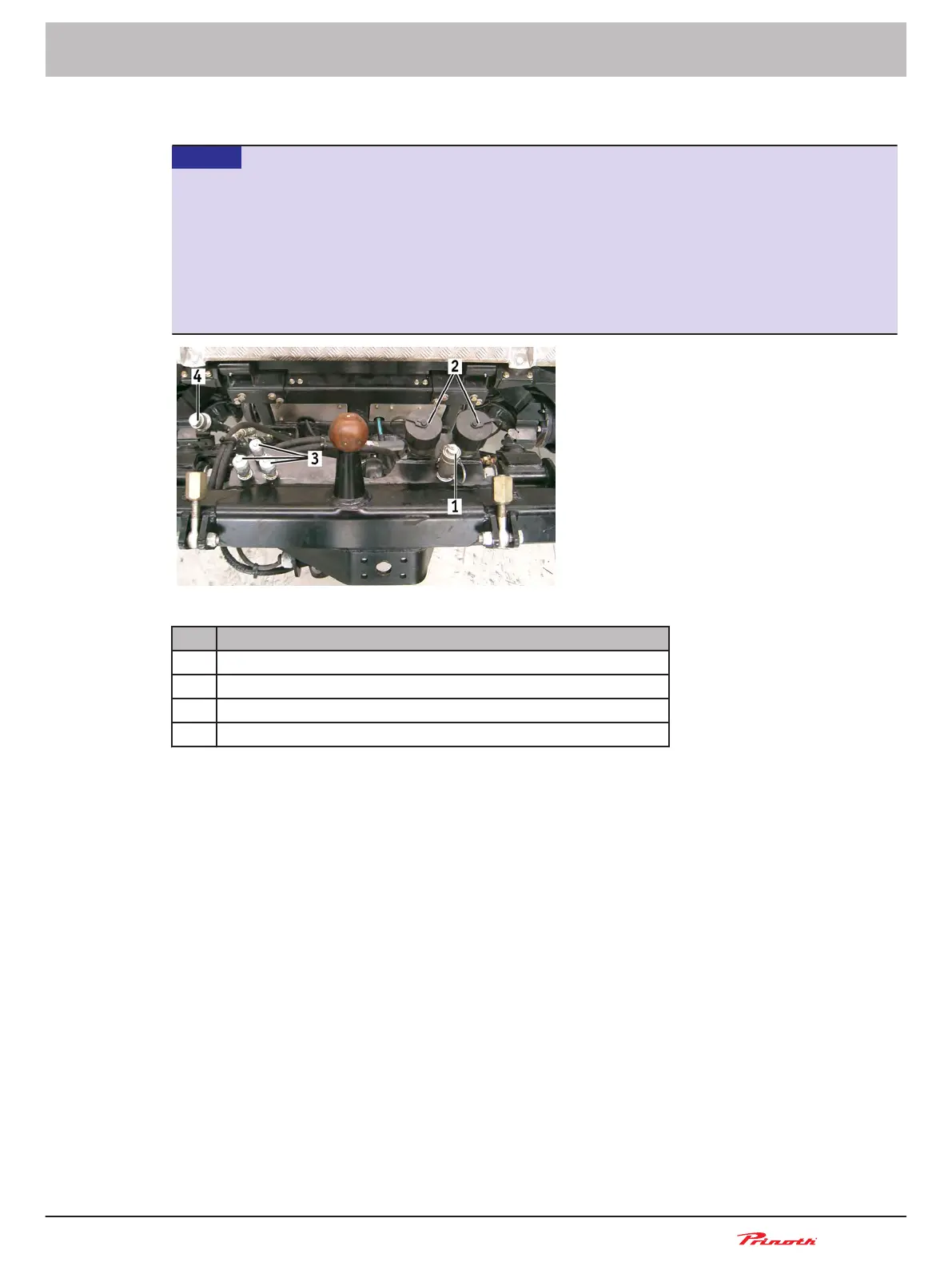

Figure 83: Hydraulic hose and electric cable connectors
Pos. Name
1 Oil return (and leak) line of the hydraulic motor
2 Connectors of the hydraulic motor
3 Quick-connect couplings for snow chamber and wing cylinders
4 Electrical system connector
1. Switch off the engine.
2. Clean the fittings.
3. Connect the drain line of the tiller. Always connect this line first.
4. Connect the other hydraulic lines.
5. Connect the electrical wiring.
6. Attach the quick-connect couplings and tighten with a spanner.
7. Make sure the hydraulic hoses are correctly routed.
8. Check hoses and screw fittings for leaks; correct any oil leaks immediately.
Snow groomer BISON
Operating and Maintenance Manual
BISON 908930245 - 30367
9 - Attachments
129 (255)
9.3.3
